TPC TIREBOSS - Air and Electrical Schematic

1-2
TIREBOSS
TM
Tire Pressure Control
SERVICE MANUAL
f:tec\manuals\Service\SERVICEv5.indd - V6-0615

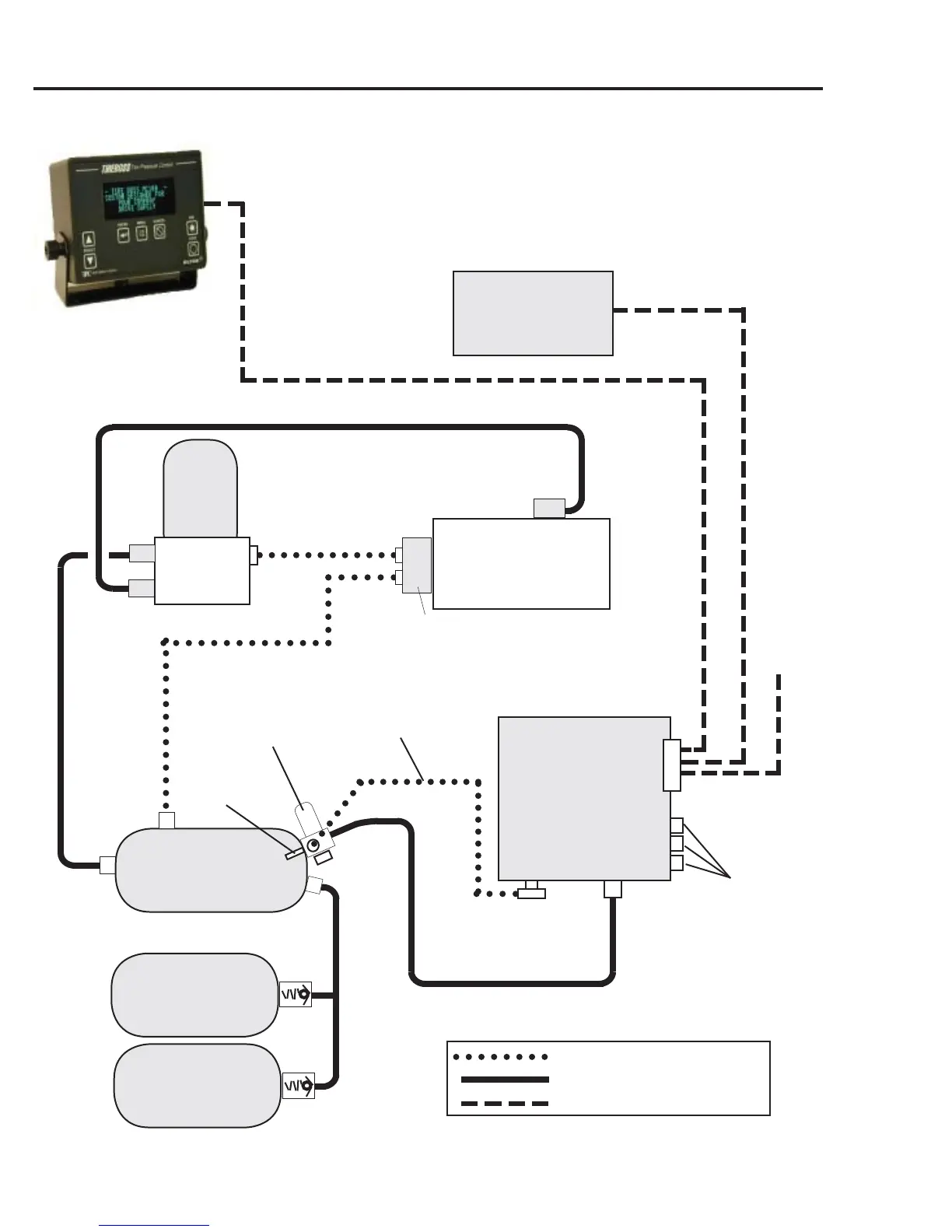

TIREBOSS
AIR and ELECTRICAL
SCHEMATIC


Primary
Tank
Secondary
Tank
pneumatic control lines
main air supply lines
electronic signal lines
RES
UNL
Truck
Compressor
Air Drying
System
TIREBOSS
Valve Box
(At truck frame)


Truck Wet Tank


Brake Pressure
Protection Switch
Air Line
Pressure
Protection
Valve
Standpipe

Compressor Governor Sensing Line
Air Supply
to Tires

Compressor
Governor

OPERATOR
CONTROL UNIT
Truck Battery
(12 V / 24 V)
Remote Alarm Cable
(optional)
TIREBOSS Main Air Supply
The ‘switching out’ of OCUs between
trucks is not recommended as
settings and speed functions have
to be adjusted per truck
specifi cations.
