TPC TIREBOSS - Air and Electrical Schematic (with AD-IS Dryer)

1-4
TIREBOSS
TM
Tire Pressure Control
SERVICE MANUAL
f:tec\manuals\Service\SERVICEv5.indd - V6-0615
TIREBOSS
TM

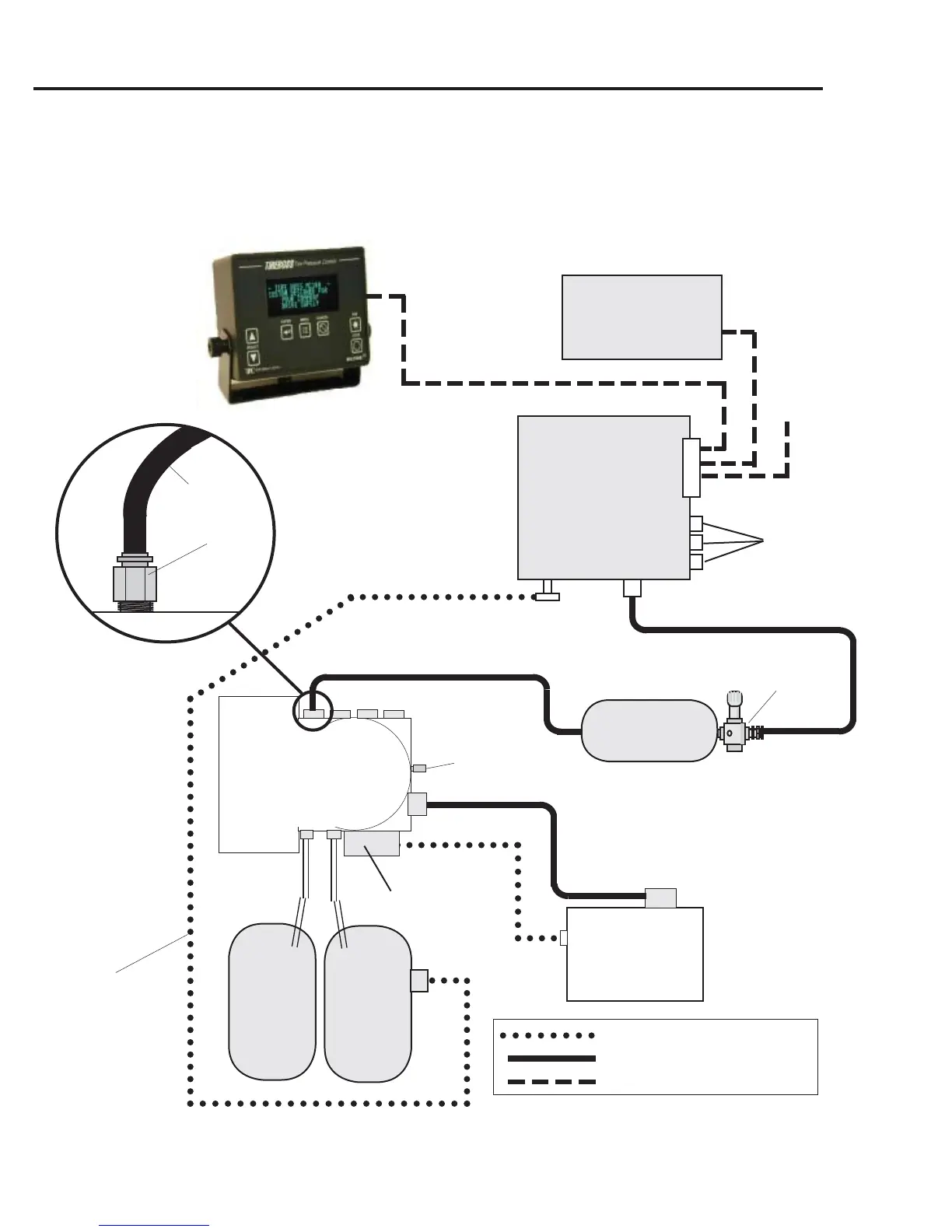

AIR and ELECTRICAL SCHEMATIC WITH
(BENDIX) AD-IS DRYER
TIREBOSS
Valve Box
(At truck frame)
Air Supply
to Tires
OPERATOR
CONTROL UNIT
Truck Battery
(12 V / 24 V)

pneumatic control lines
main air supply lines
electronic signal lines
TIREBOSS Main Air Supply
Remote Alarm
Cable (optional)
Factory
Pressure
Relief Valve
Air Governor
AD-IS
Air Drying
System
UNL
Truck
Compressor
Brake
Pressure
Protection
Switch Air
Line
Primary
Tank
Secondary
Tank
3/8” Air Tube
Dryer Body
3/8” Push to Lock
The ‘switching out’ of
OCUs between trucks is
not recommended as
settings and speed
functions have to be
adjusted per truck
specifi cations.
Optional Wet
Tank
Pressure Protection Valve
(Internal Relief Valve)
Adjusted to 100 psi
NOTE: Pressure Protection Valve
can be mounted at optional wet tank
or at TIREBOSS Valve Box
