Technical data
3 TECHNICAL DATA
3.1 Data sheet
You will find the technical data for the ILM servo kits in the data sheet provided in the
ILM servo kits download area.

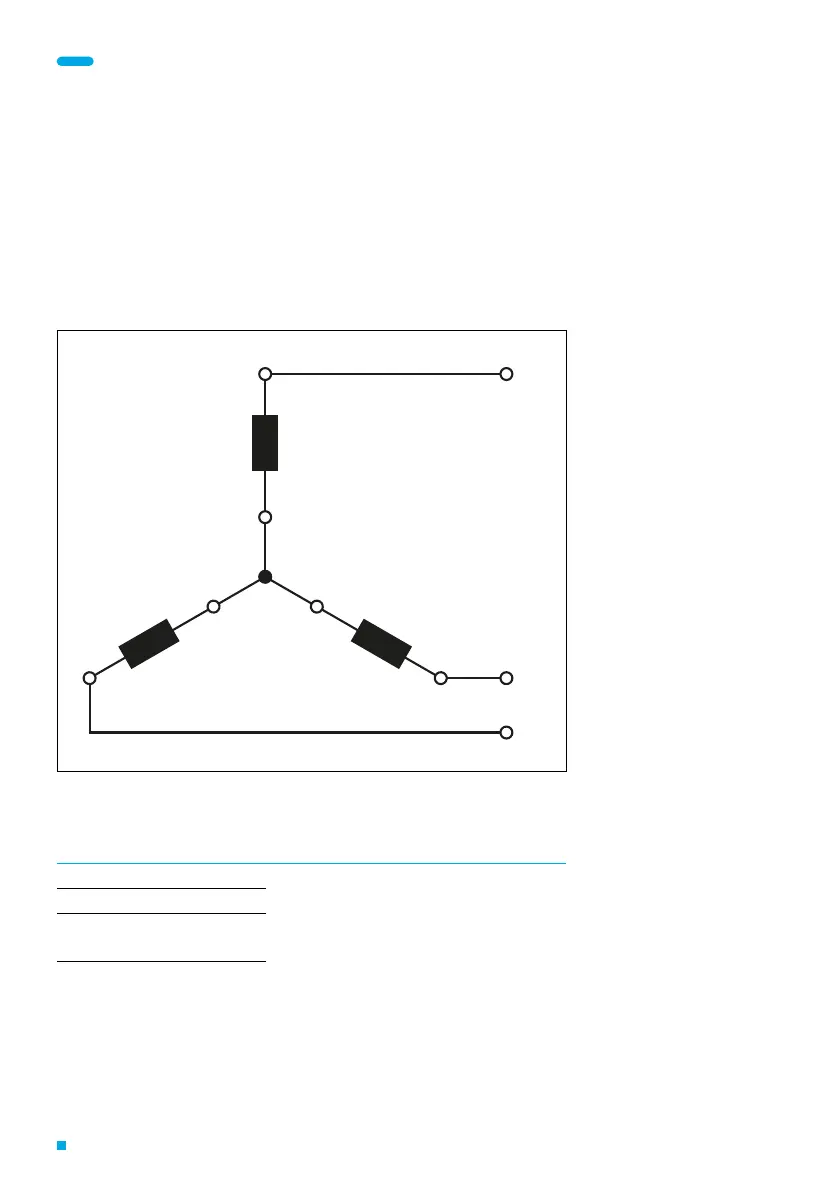

3.2 Connection diagram (star-serial configuration)
Connections A, B and C can be found on the ILM servo kit.
A
B
C
U1
U2
L1
L3
L2
W1
W2
V1
V2
Fig. 4: Measuring points on the ILM servo kit (star-serial
configuration)
Measured variable Measured values
Nominal voltage U
n
* [V]
See data sheet in our
download area
Nominal current I
n
* [A]
Terminal resistance
R
TT
* at 20 °C [m]
Terminal inductance
L
TT
* [H]
Table 2: Measuring points on the ILM servo kit (star-serial configuration)
