TQ ILM Series User Manual

Assembly Instructions | ILM Servo Kits
15Edition 03/2021 EN
Technical data
3.3 Installation dimensions
ILM
25×04
ILM
25×08
ILM
38×06
ILM
38×12
ILM
50×08
ILM
50×14
ILM
70×10
Outer diameter
stator D js8 [mm]
25 25 38 38 50 50 69
Board diameter
G [mm]
23.8 23.8 36.2 36.2 47.6 47.6 66.8
Winding head
diameter g [mm]
23.8 23.8 36 36 47.6 47.6 66
Stator length L [mm] 10.8 15.2 15.3 22.3 16.4 22.8 22.6
Inner diameter
rotor d H7 [mm]
11.6 11.6 18 18 30 30 42
Rotor length l [mm] 6.3 9.7 8.1 16.2 9.9 16.1 12.7
Table 3: Installation dimensions – part 1
ILM
70×18
ILM
85×04
ILM
85×13
ILM
85×23
ILM
85×26
ILM
115×25
ILM
115×50
Outer diameter
stator D js8 [mm]
69 85 85 85 85 115 115
Board diameter
G [mm]
66.8 82.8 82.8 82.8 82.8 111.8 111.8
Winding head
diameter g [mm]
66 81 81 81 81 110 110
Stator length L [mm] 30.5 17.6 27.2 37.2 40.7 39.0 68.4
Inner diameter
rotor d H7 [mm]
42 52 52 52 52 74 74
Rotor length l [mm] 20.7 7.1 15.7 25.1 27.2 27.1 54.2
Table 4: Installation dimensions – part 2
L
D
G
d
g
l

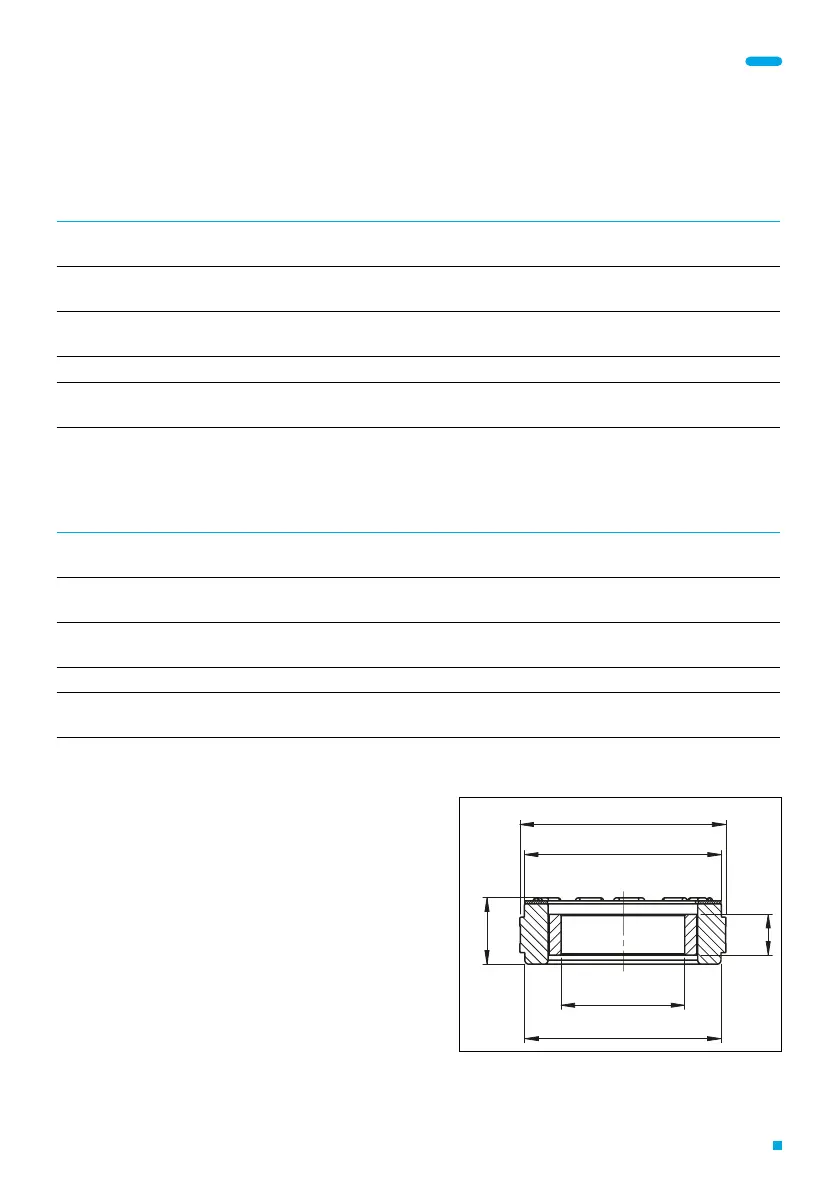

Fig. 5: Dimension designations
