Assembly Instructions | ILM Servo Kits
21Edition 03/2021 EN
Assembly
7.1 Bonding surfaces on stator and rotor
The bonding surfaces must be compatible with the adhesive used. This should be
checked in particular if passivation or another surface treatment is envisaged or has
been carried out.

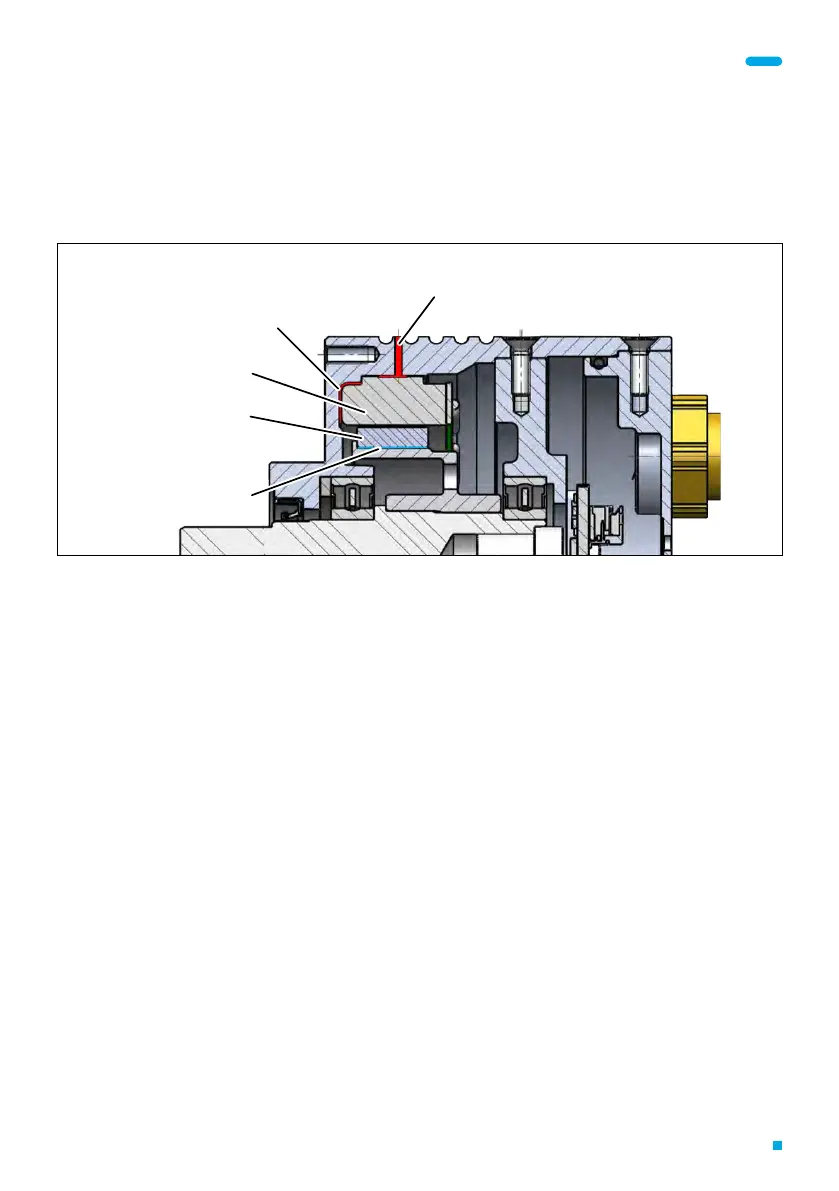

Fig. 11: Bonding surfaces on stator and rotor
Bonding surface for stator/housing
with thermally-conductive adhesive
Bonding surface for
rotor/shaft
Adhesive injection hole,
Ø 0.9 mm
Stator
Rotor shell with
magnets
7.2 Tools and equipment required
— Non-magnetic tool
— Centring guides for rotor and stator
— TQ-Drives stator bonding kit with:
— Dispensing gun (25/50 ml)
— Thermally conductive adhesive (e.g. LOCTITE Hysol 9497, 50 ml)
— Mixing tube
— Disposable syringe 1 ml
— Dispensing needle 0.9 mm
— Bonding adhesive for rotor (e.g. LOCTITE 648)
— Kapton tape
— Cleaning agents
— Lint-free cloths
— Antistatic coat
— ESD grounding wrist strap
— Safety goggles
— Protective gloves
