Solder pads on the connection board

5 SOLDER PADS ON THE CONNECTION BOARD

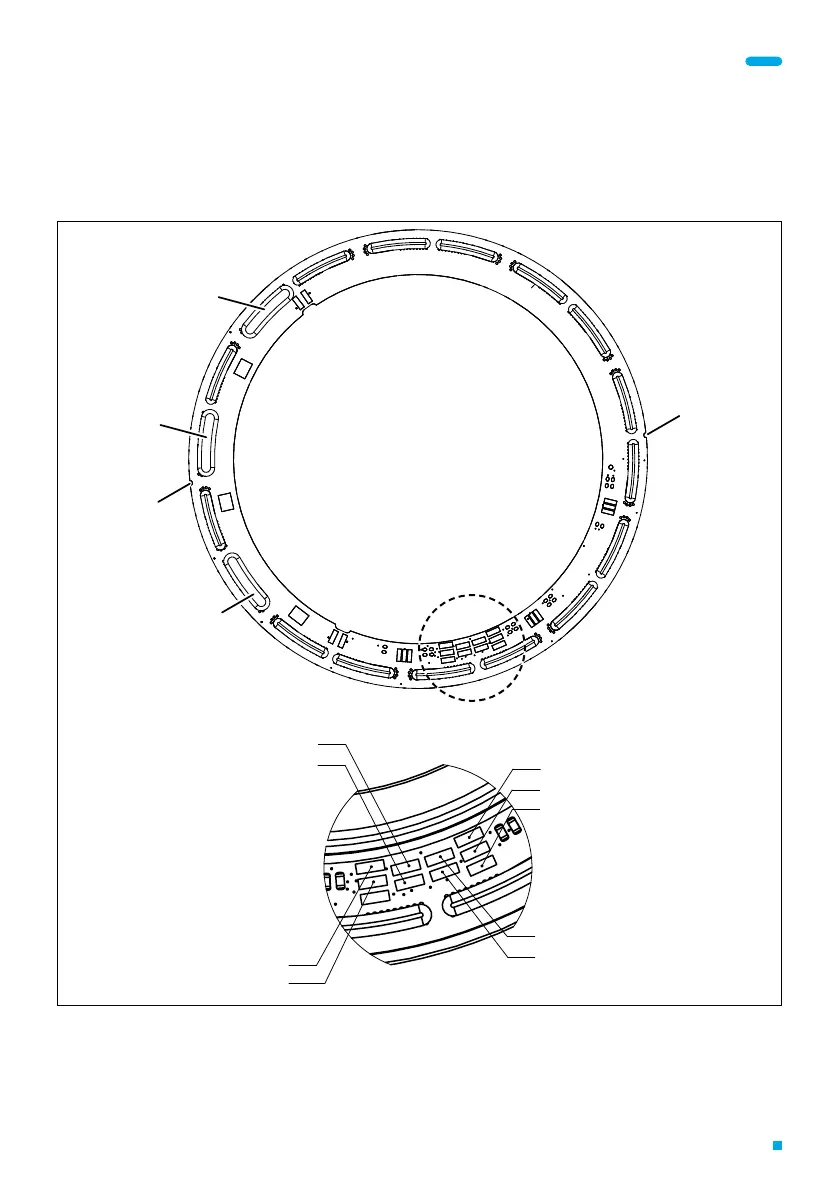

Fig. 9 shows the solder pads on the connection board by way of example.

Detailed drawings for your type of ILM servo kit are available on our website.

Fig. 9: Solder pads on the connection board

Notch

Phase A

Phase C

Phase B

Detail ATemperature sensor 2

SP2–2

SP2–1

5 V voltage supply

GND

5 V

Hall sensors 1/2/3

SA3

SA2

SA1

Temperature sensor 1

SP1–2

SP1–1
