Assembly Instructions | ILM Servo Kits

22 Edition 03/2021 EN

Assembly

7.3 Bonding instructions

WARNING

Danger of eye injury and skin irritation by adhesives

The adhesives used for bonding can cause severe eye injuries and skin irritations.

► Wear safety goggles to protect your eyes and wear safety gloves until you have ﬁn-

ished installing the ILM servo kit.

► Read and follow the safety data sheets provided with the adhesive.

7.3.1 Stator

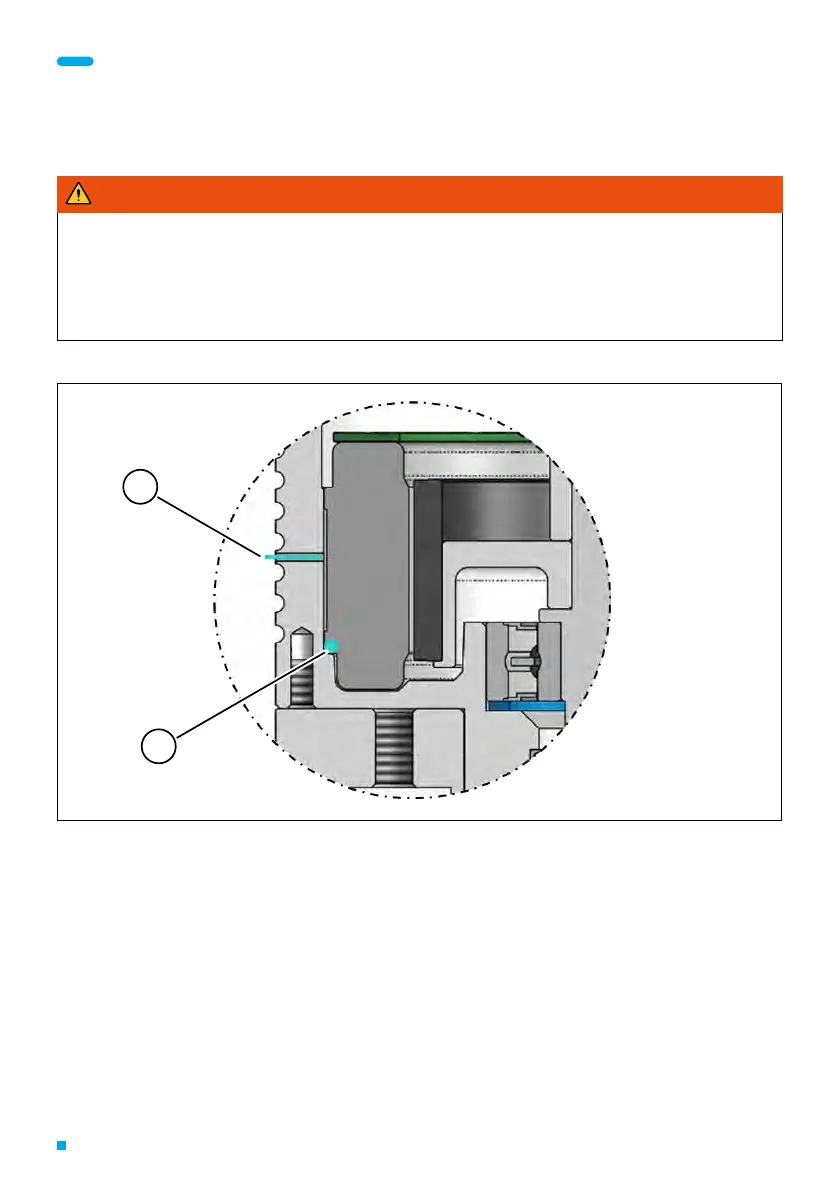

Fig. 12: Bonding the stator in position

► Assemble the bonding kit for the TQ-Drives stator.

► Clean and degrease the bonding surfaces (see Fig. 11 on page 21) following the

adhesive manufacturer’s instructions.

► Apply a bead of adhesive (e.g. LOCTITE 9497) all around the edge (item 1 in Fig. 12)

inside the housing.

► Push the stator into the housing as far as it will go. The adhesive is distributed by the

stator.

► Remove any excess adhesive.
