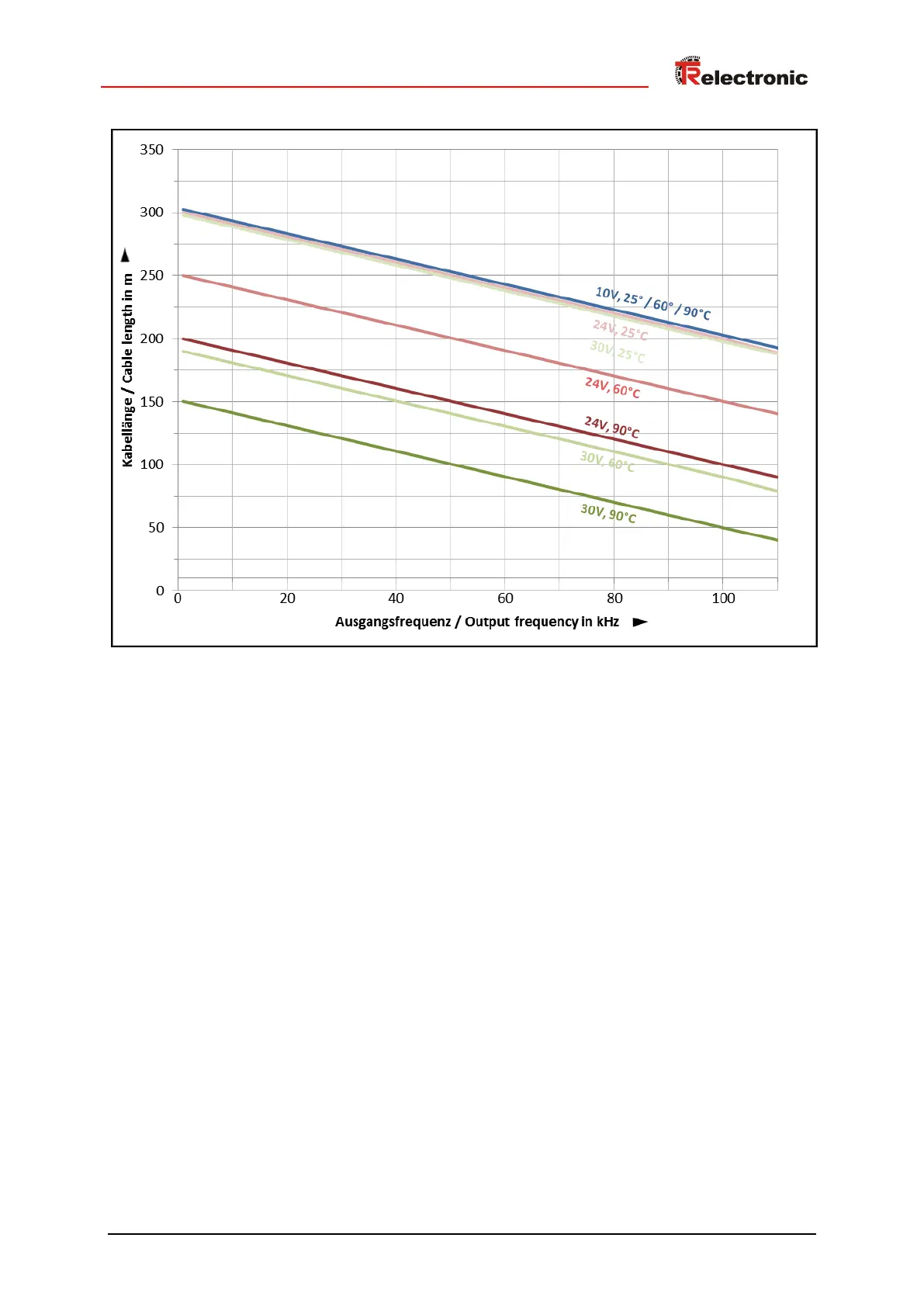

Figure 4: Cable lengths / cutoff frequencies, HTL version
Other cable parameters, frequencies, and ambient temperatures as well as bearing heat and
temperature increase via the shaft and flange, can yield a considerably poorer result in practice.
Therefore, the fault-free function of the incremental interface with the application-dependent
parameters has to be checked prior to productive operation.
