Trane Technologies Voyager 3 - Page 20

20
RT-SVX34V-EN
Table 3. Center of gravity (continued)
Center-of-Gravity (inches)
Unit (60Hz)
TC TE YC Low
YC High
X Y X Y X Y X Y
40 Tons 114.6 41.2 114.7 41.3 114.3 41.9 115.4 40.6
50 Tons 114.1 40.8 114.3 40.9 114.0 41.5 115.0 40.2
Notes:
1. Center-of-gravities shown are for standard efficiency units and include the following features: 10HP supply fan motor, supply fan VFD, 100% economizer, 2" MERV 8
filters, SZVAV system control, GFCI, no exhaust, and hail guards.
2. Center-of-gravities shown are subject to change based on the specific unit configuration.
3. Center-of-gravities shown are approximate and have a ±10% accuracy. To calculate CG for a specific unit configuration, utilize Trane Select Assist™ or contact your
local Trane® sales representative.
Table 4. Average unit point load weight (lb)
Average Unit Point Load Weight (lb)
Unit (60Hz)
1 2 3 4 5 6
27.5 Tons 880 696 867 683 854 670
30 Tons 878 697 868 687 857 676
35 Tons 874 699 870 695 866 691
40 Tons 1009 818 997 806 985 794
50 Tons 1032 823 1015 807 999 790
Notes:
1. Point Loads shown are for standard efficiency units and include the following features: 10HP supply fan motor, supply fan VFD, 100% economizer, 2" MERV 8 filters,
SZVAV system control, GFCI, no exhaust, and hail guards.
2. Point Loads shown are subject to change based on the specific unit configuration.
3. Point Loads shown are based on the weights of YC high gas heat units.
4. Point Loads shown are approximate and have a ±10% accuracy. To calculate point loads for a specific unit configuration, utilize Trane Select Assist™ or contact your
local Trane® sales representative.

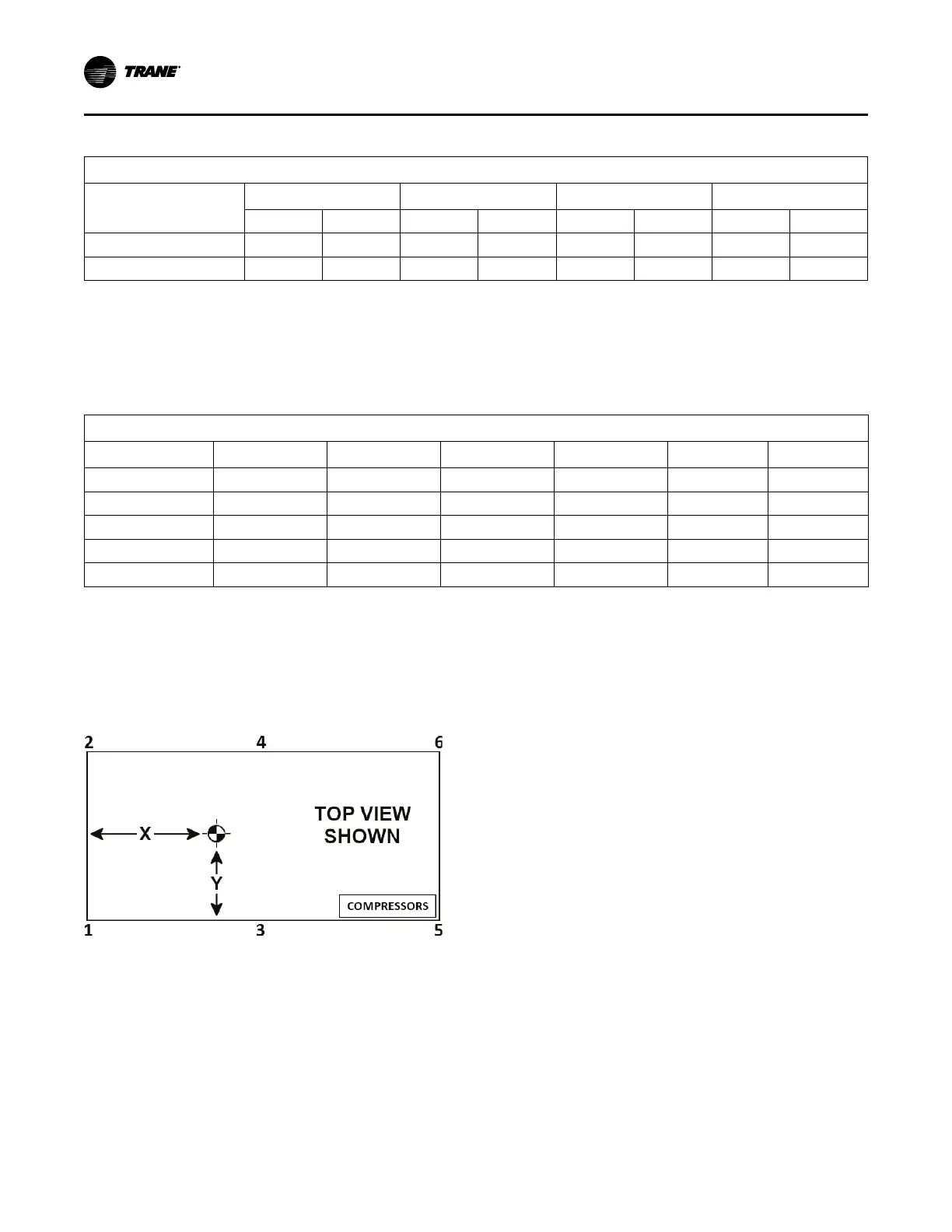

Figure 17. Center of gravity
Unit Dimensions and Weights
