Block diagram for connection: refer to Figure 113.

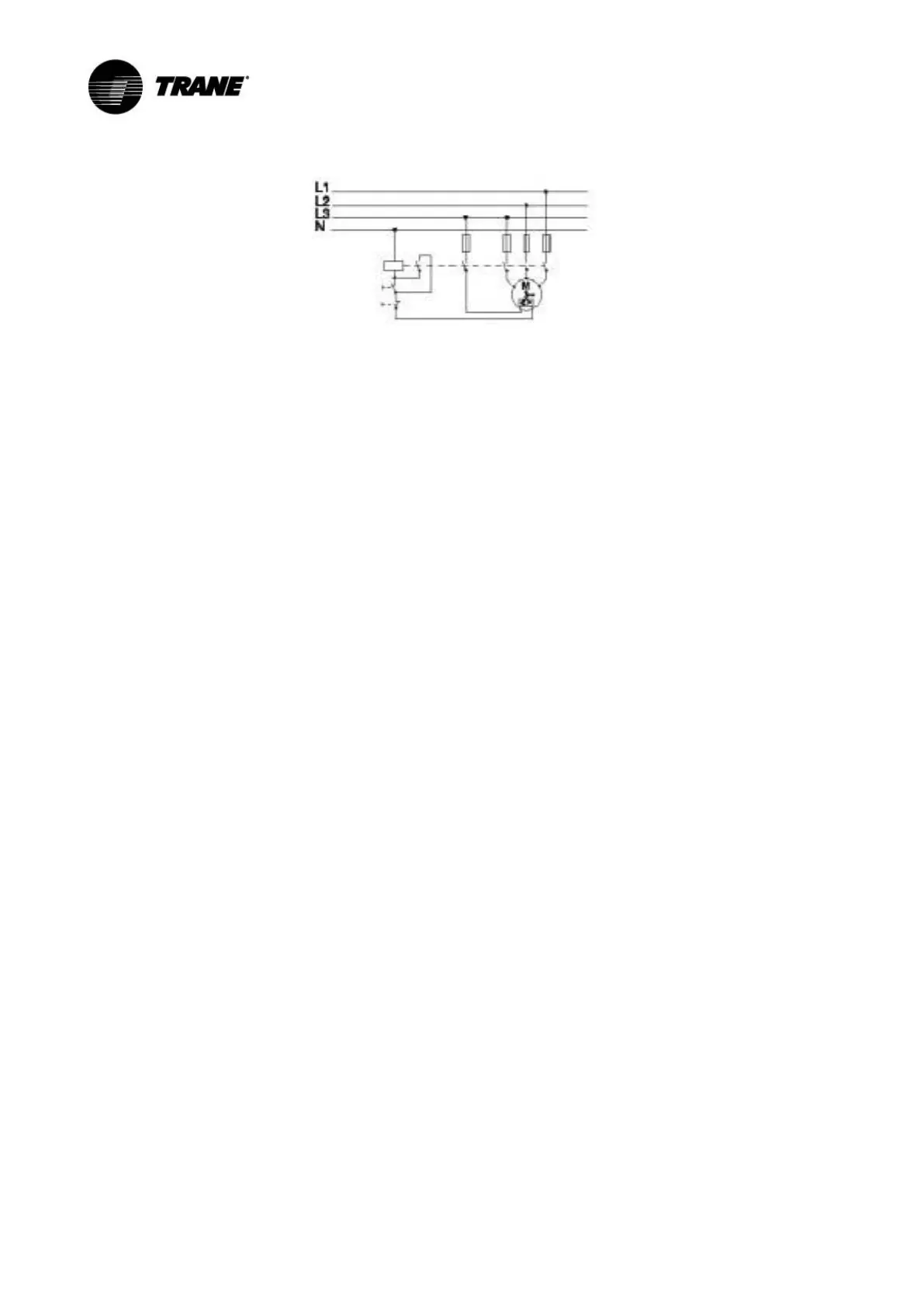

Figure 113: Wiring diagram for thermal contacts
ETA - AHU
Are as standard equipped with circuit protection switch and frequency converters.
When the motor is equipped with a PTC, it is connected to the temperature monitoring of the fre-
quency converter.
