Programming
SO-SVN037A-EN 31
9. Once all LLIDs are bound, verify that the settings in the
Service Setpoints, Field Startup, and Purge tabs are
correct.
10. In Tracer TU, save a copy of the Chiller Service Report.
a. From the Reports drop-down menu, select and open
Chiller Service Report (see the below figure).
b. Save a copy of Chiller Service Report as a Microsoft
®
Word document in the folder that was created in My
Documents.
11. Save the current chiller configuration in the existing
firmware version in the Symbio 800.
Note: This step produces backup configuration data in
the case the Symbio 800 configuration becomes
corrupt.
a. Access the Equipment Utilities section of Tracer TU
by clicking the wrench symbol on the right-hand side
of the screen.
b. Click the Configuration tab (see the below figure).
c. At the bottom of the screen, click the Save File button
(not shown in below figure).
d. In the Browse for Folder window, click Make New
Folder.
A folder will be created with the name New Folder; this
can be renamed later. The path to the folder will be:
C:\Programs\Trane\Tracer
TU\Program\Plugins\UCDataBaseDAL\New Folder
e. Select the New Folder file.
f. Click the OK button.
The chiller configuration file will now be saved in the New
Folder.

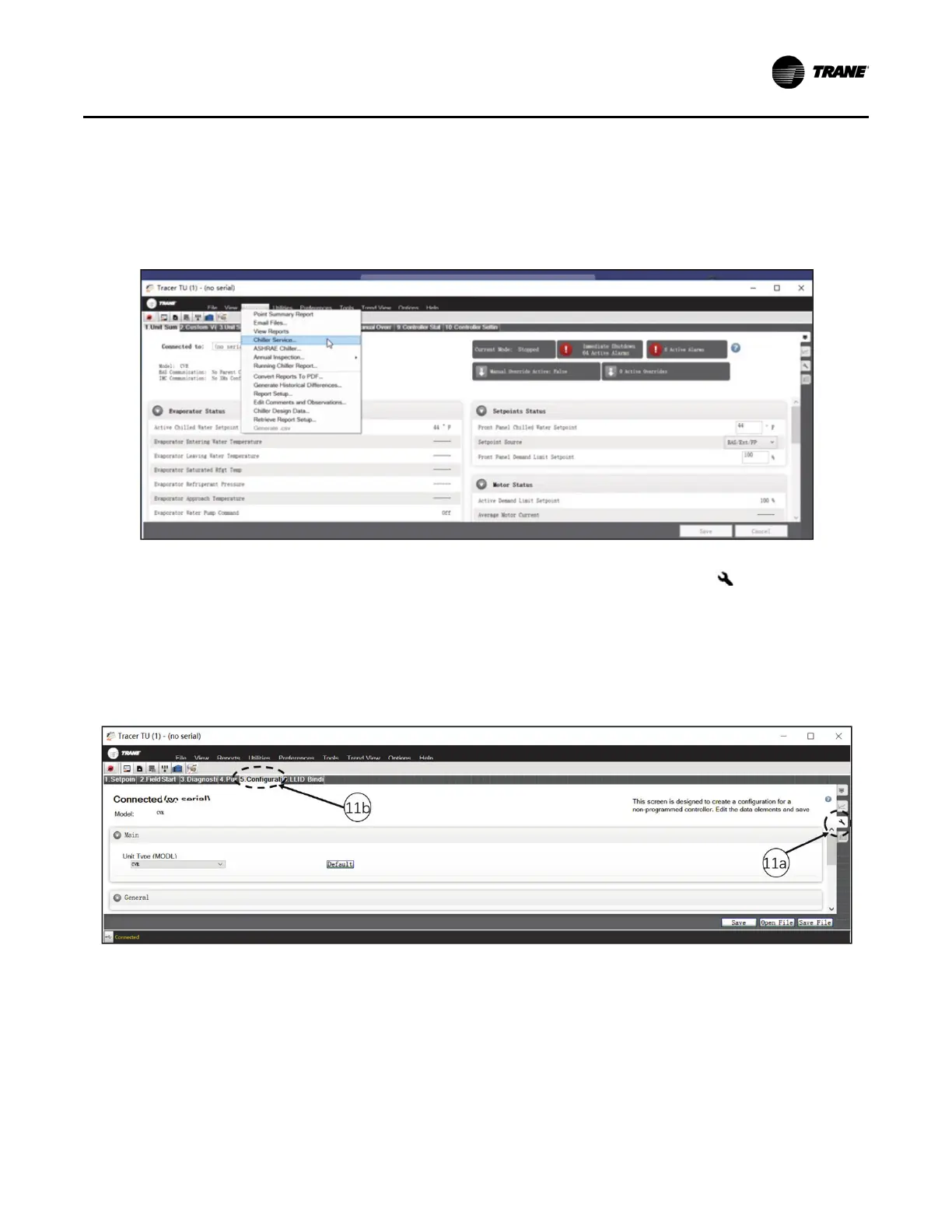

Figure 65. Chiller service report (Tracer TU)
Figure 66. Chiller configuration (Tracer TU, simplex chiller shown)
