Installation
Note: Use 12ga wire.
1. At quad relay output LLID 1A5 in the unit control panel,
disconnect wire 42A from terminal 7.
2. Connect wire 42A to RLY02909 terminal 2.
3. Install a wire between LLID 1A5 terminal 7 and RLY02909
terminal 3.
4. Install a wire from RLY02909 terminal 4 and a common
terminal (1X1-17 is typical).
5. Install a wire from a 120v source terminal (1X1-10 is
typical) downstream of breaker 1Q4, to RLY02909 terminal
1.

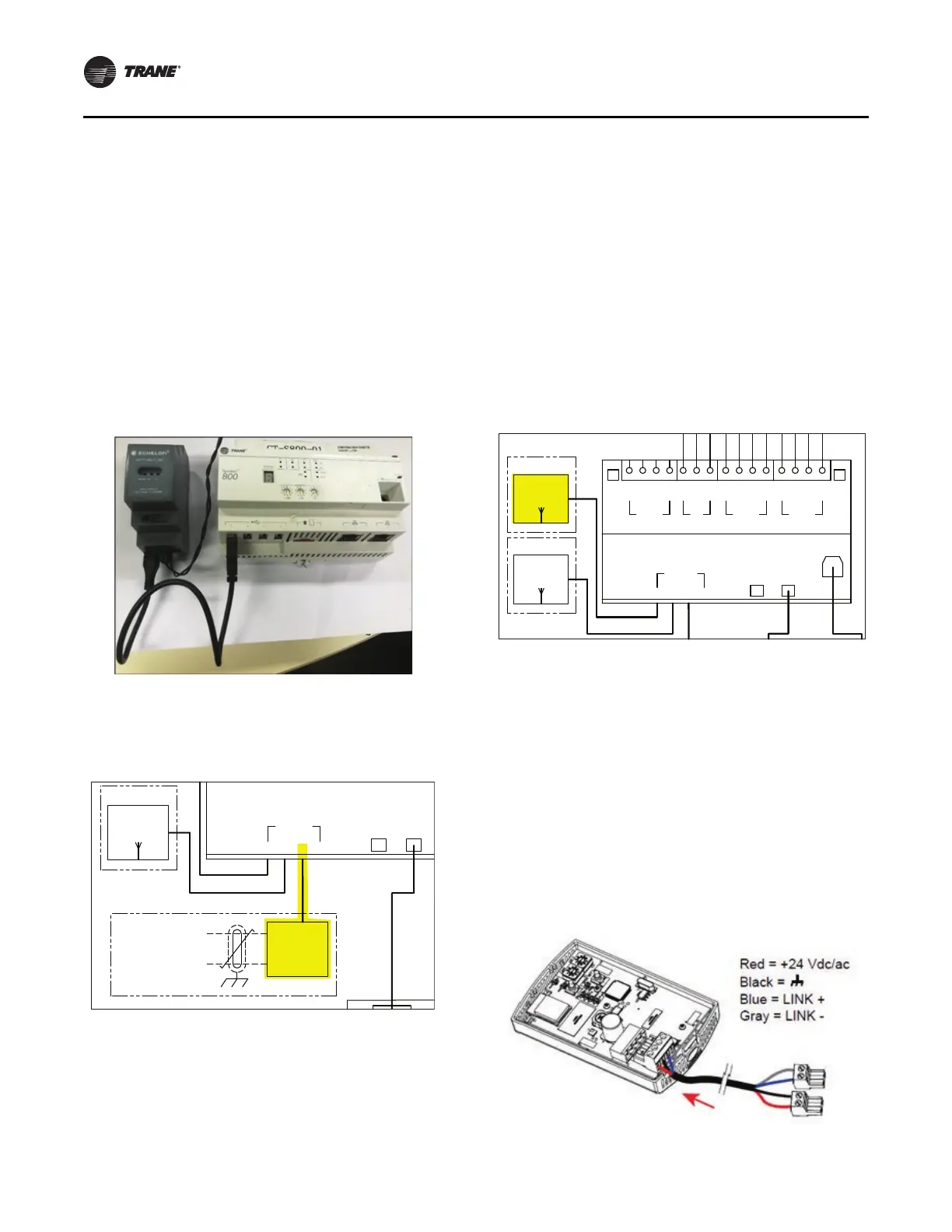

Figure 13. Installed solid state relay
Figure 14. Completed schematic
