10 SO-SVN038A-EN
Installation
Installation of UC800 Control
Upgrade
Check the Configuration and Setpoints in
the AdaptView Display
Important: Verify the UC800 firmware is upgraded to the
most recent version before creating the chiller
service report for conversion to Symbio.
The conversion utility is only designed to work
with the most recent version of UC800
firmware.
1. Check the current configuration of the AdaptView and
confirm all settings are correct. Make any necessary
changes.
2. Check all of the current chiller setpoints programmed into
the AdaptView and confirm that they are all correct for the
unit. Make any necessary changes.
Save the AdaptView Configuration and
Setpoints
Using Tracer TU on a PC or laptop computer.
Generate a Chiller Service report from the AdaptView with
Level 4 active.

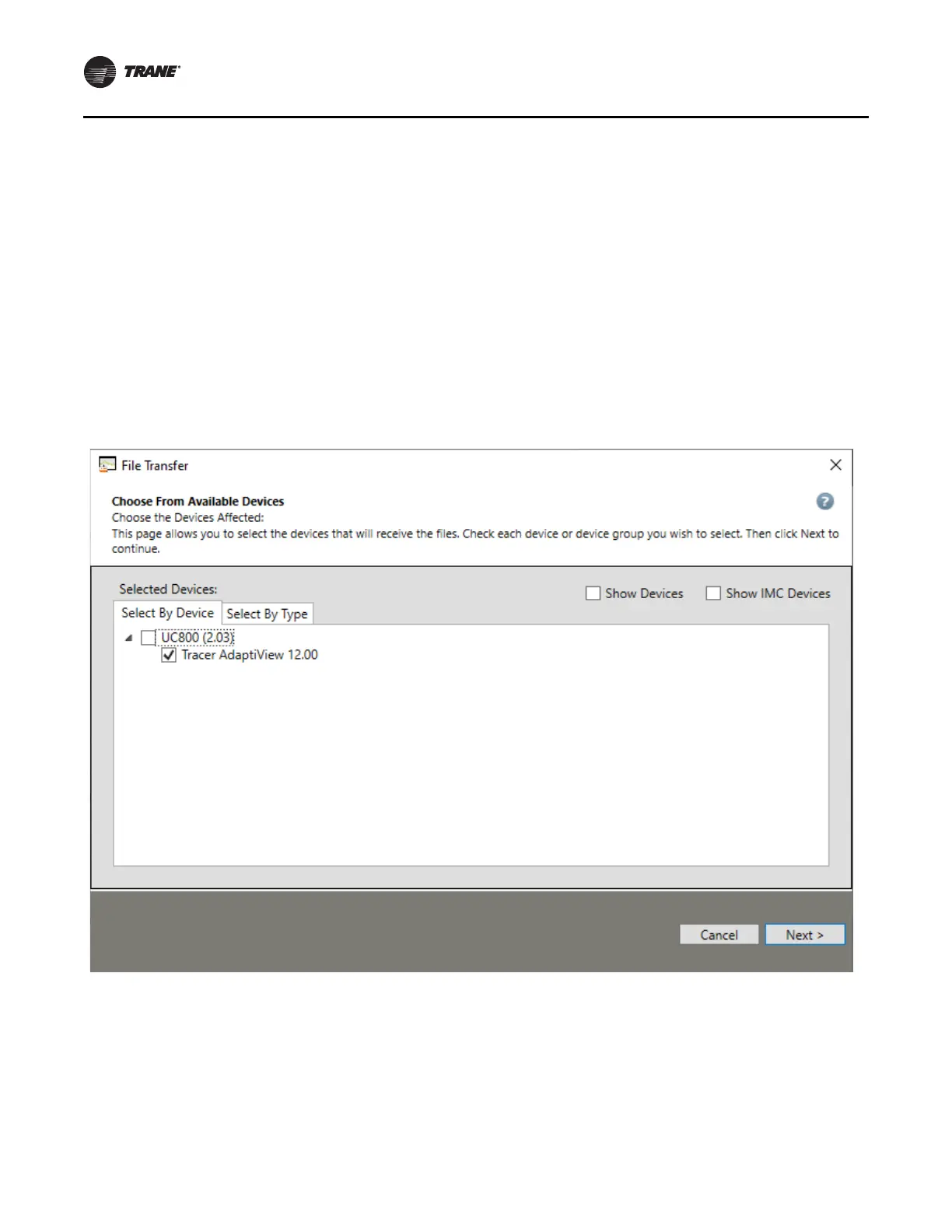

Figure 3. Tracer TU
WARNING
Hazardous Voltage and Equipment
Damage!
Failure to follow instructions below could result in
death or serious injury.
CT terminals are referenced to neutral on the meter and
may be at elevated voltages. Do not contact meter
terminals while the unit is connected. Do not connect or
short other circuits to the CT terminals. Disconnect all
electric power, including remote disconnects before
servicing. Follow proper lockout/tagout procedures to
ensure the power can not be inadvertently energized.
Verify that no power is present with a CAT III or IV
voltmeter rated per NFPA 70E.
