Getting Started
To properly install an Symbio 800 AdaptiView display
upgrade kit, the technician must have good knowledge of
the Symbio 800 control systems. Training in Symbio 800
controls is highly recommended before beginning this
upgrade.
Nameplate
A Symbio 800 AdaptiView display upgrade nameplate is
included in the kit to be installed near the original
nameplate on the control panel. Always provide the model
number and serial number information from the
nameplate when making inquiries, ordering parts, or
literature for the Symbio 800 AdaptiView display system.
Symbio 800 AdaptiView Display
Upgrade Kit Contents

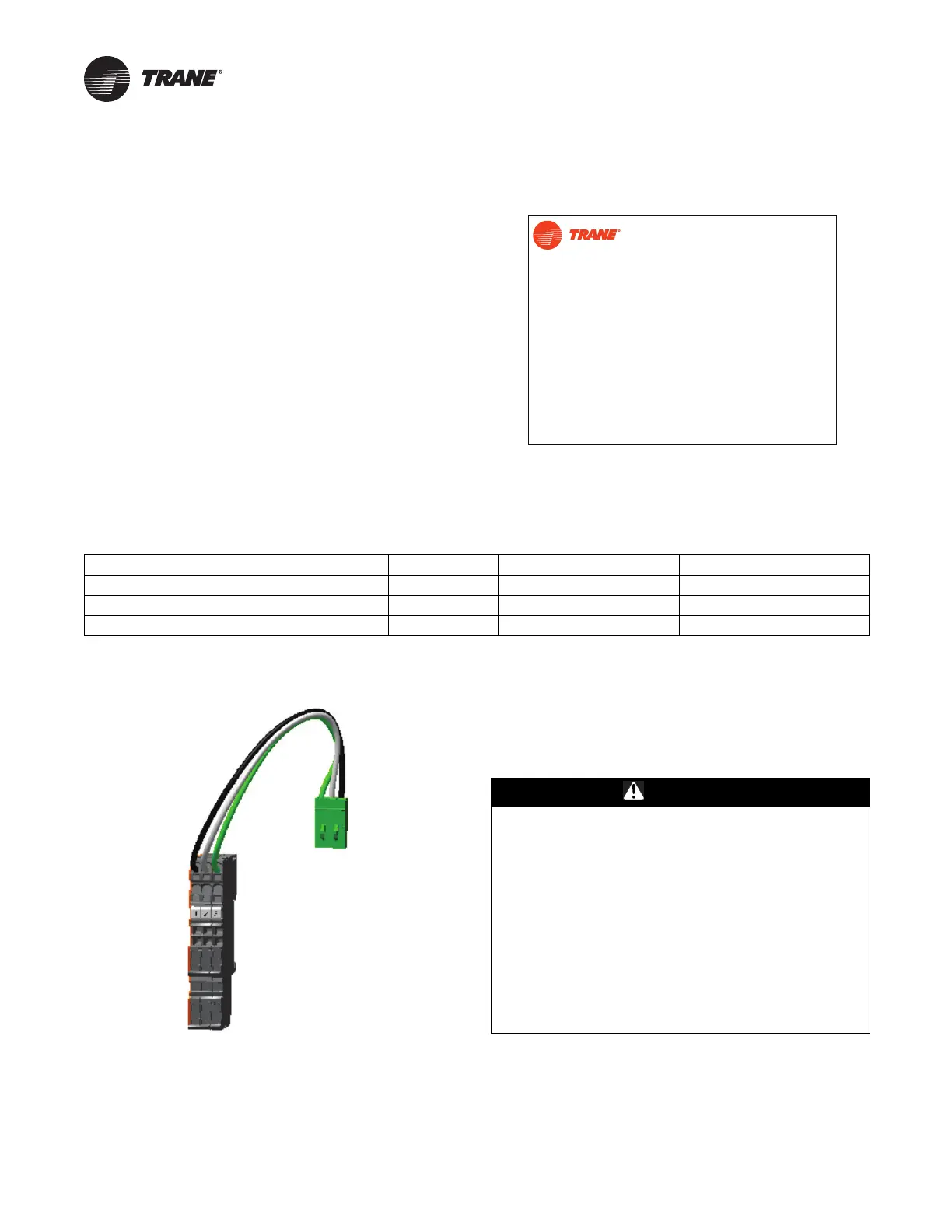

Figure 1. Symbio 800 AdaptiView nameplate example
Table 1. Basic bill of material for
Symbio 800 control upgrade kit
Description Qty. Part Number
(a)
Mnemonic Part Number
(a)
Symbio AdaptiView color display (if new display ordered) 1 X13760359001 MOD03183
Symbio 800 controller 1 X13651678020 MOD02979
Harness; Modbus distribution 1 453730970001 WIR10397
Figure 2. Modbus distribution harness
WARNING
Hazardous Voltage w/Capacitors!
Failure to disconnect power and discharge capacitors
before servicing could result in death or serious injury.
Disconnect all electric power, including remote
disconnects and discharge all motor start/run
capacitors before servicing. Follow proper lockout/
tagout procedures to ensure the power cannot be
inadvertently energized. For variable frequency drives
or other energy storing components provided by Trane
or others, refer to the appropriate manufacturer’s
literature for allowable waiting periods for discharge of
capacitors. Verify with a CAT III or IV voltmeter rated
per NFPA 70E that all capacitors have discharged.
Running the IPC Bus
All optional devices on the chiller must be connected to the
IPC communication bus. Verify that all devices are
connected, using the correct cables, so no open plugs
remain.
SYMBIO 800 UPGRADE CONTROL FOR USE ON
LIQUID CHILLERS
MODEL NO: CDUB7A105AA00100000
SERIAL NO: L22C01079
ORDER NO: LARRYSP4
ORIGINAL SERIAL NO: L22A00000
LITERATURE:
CDUB-SVN02*-EN
CTV-SVU004*-EN
CVRF-SVP001*-EN
CTV-SVD005*-EN
CVHE-SVX005*-EN
BAS-SVU047*-EN
CTV-SVP004*-EN
www.trane.com/Patent
(a) All part number information in this table is subject to change at any time.
