Trane GEHE - Tracer ZN524 Wiring Diagrams

Wiring Diagrams
WSHP-SVX01L-EN 11 3

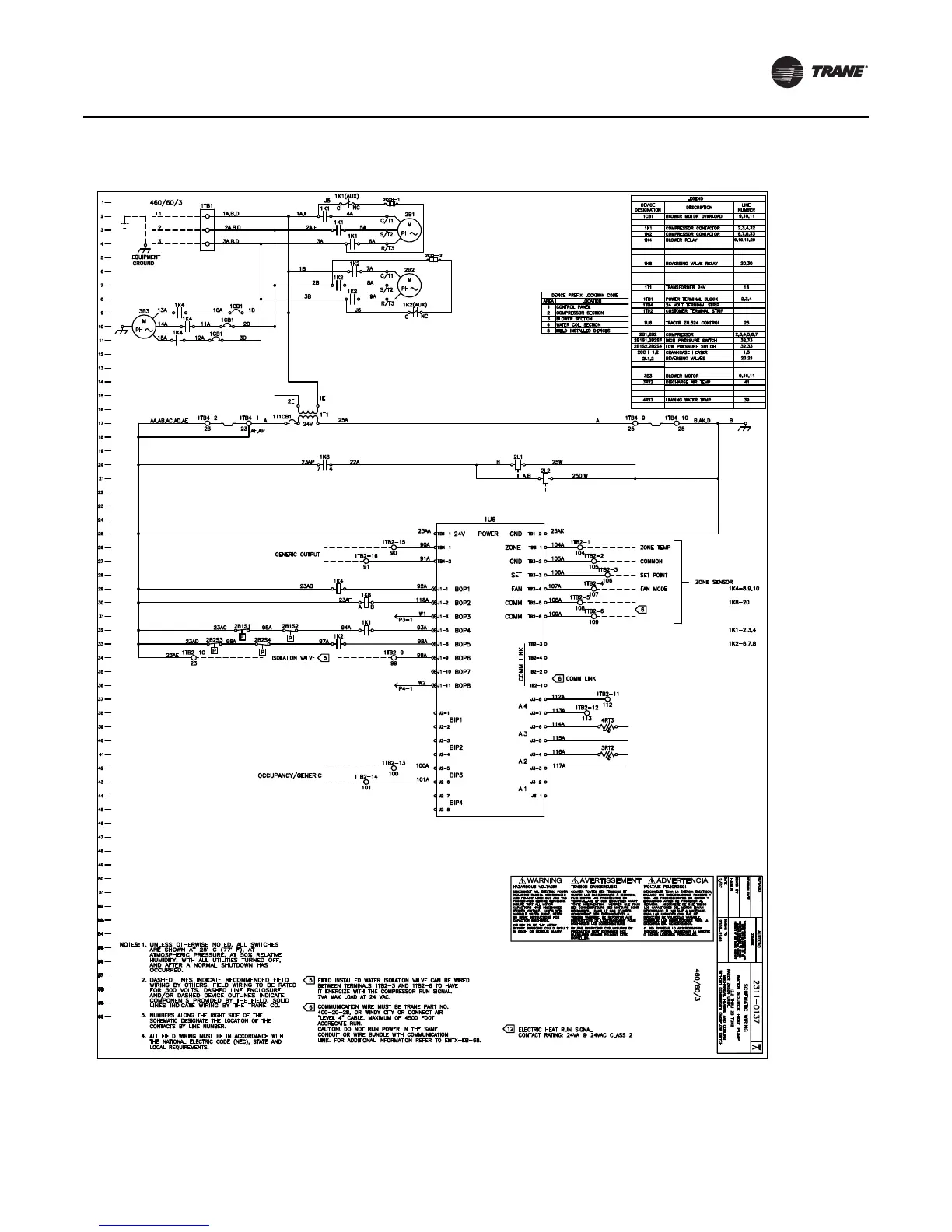

Figure 89. Tracer ZN524-460V - 60 Hz - 1 ph
(a)
(a) Wiring diagrams provided in the catalog are generic. A unit specific As Built wiring diagram is located on the unit control panel.
