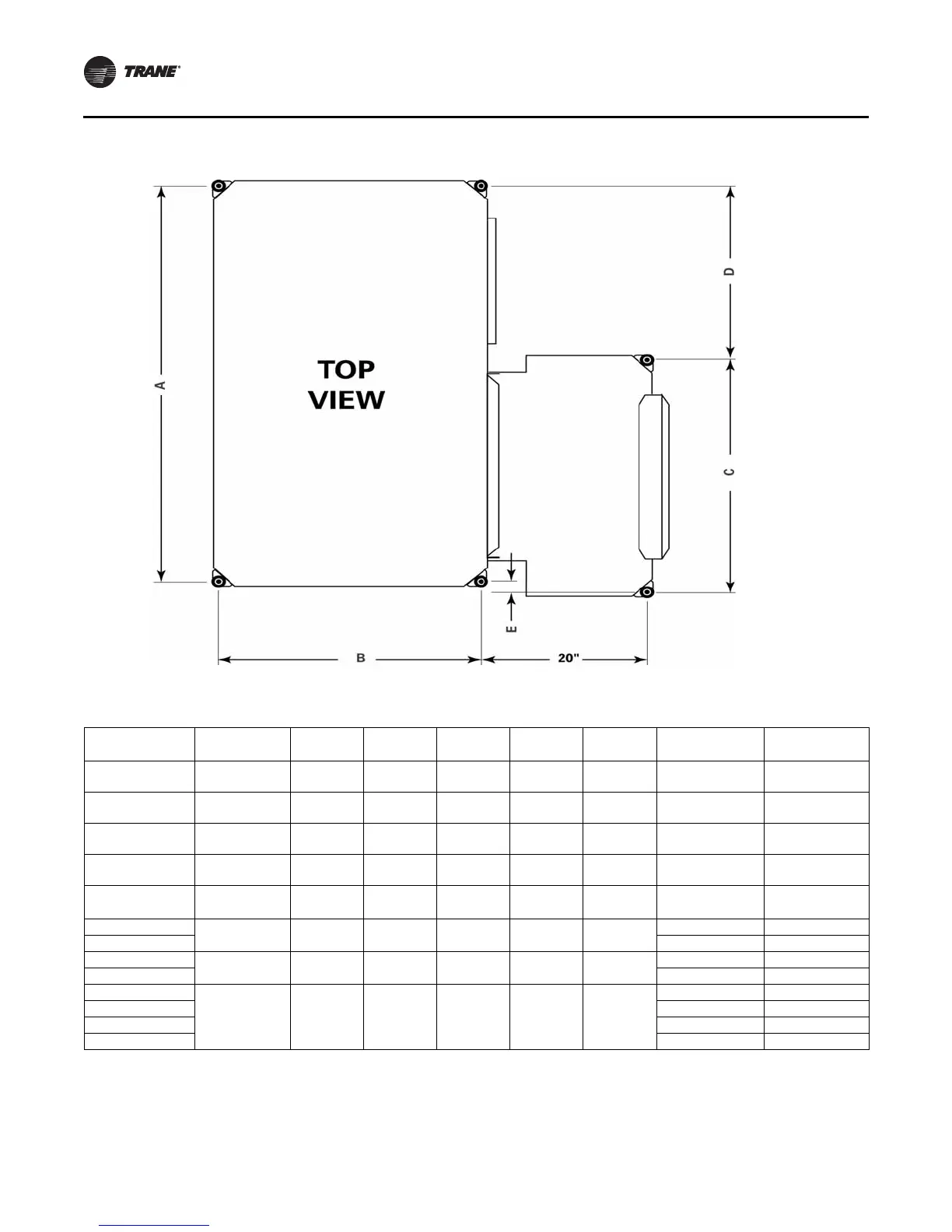

Figure 37. GEH and EXH hanging unit waterside economizer
Table 26. GEH and EXH hanging unit waterside economizer
GEH Unit
(60 Hz)
GEH Unit
(50 Hz) A B C D E
Hanging
Weight
Shipping
Weight
006-015 006-012
38-3/4
(984)
18-3/4
(476)
21-3/4
(552)
17
(432)
0 54 lbs (24.5 kg) 84 lbs (38.2 kg)
018-030 015-024
44-3/4
(1137)
21-3/4
(552)
24-3/4
(629)
21
(533)
1
(25.4)
65 lbs (29.5 kg) 95 lbs (43.2 kg)
036-042 030-036
48-3/4
(1238)
23-3/4
(603)
28-3/4
(730)
21
(533)
2
(50.8)
76 lbs (35 kg) 106 lbs (48 kg)
048-060 042-060
56-3/4
(1442)
31-3/4
(806)
32-3/4
(832)
25
(635)
1
(25.4)
97 lbs (44 kg) 127 lbs (58 kg)
EXH Unit
(60 Hz)
EXH Unit
(50 Hz) A B C D E
Hanging
Weight
Shipping
Weight
018
—
44-3/4
(1137)
21-3/4
(552)
24-3/4
(629)
21
(533)
1
(25.4)
264 lb (120 kg) 284 lb (129 kg)
024 269 lb (122 kg) 301 lb (137 kg)
030
—
48-3/4
(1238)
23-3/4
(603)
28-3/4
(730)
21
(533)
2
(50.8)
299 lb (136 kg) 329 lb (149 kg)
036 313 lb (142 kg) 343 lb (156 kg)
042
—
56-3/4
(1442)
31-3/4
(806)
32-3/4
(832)
25
(635)
1
(25.4)
431 lb (196 kg) 461 lb (209 kg)
048 424 lb (192 kg) 454 lb (206 kg)
060 444 lb (201 kg) 474 lb (215 kg)
070 484 lb (220 kg) 514 lb (233 kg)
Note: All dimensions are in inches followed by millimeters in parenthesis.
