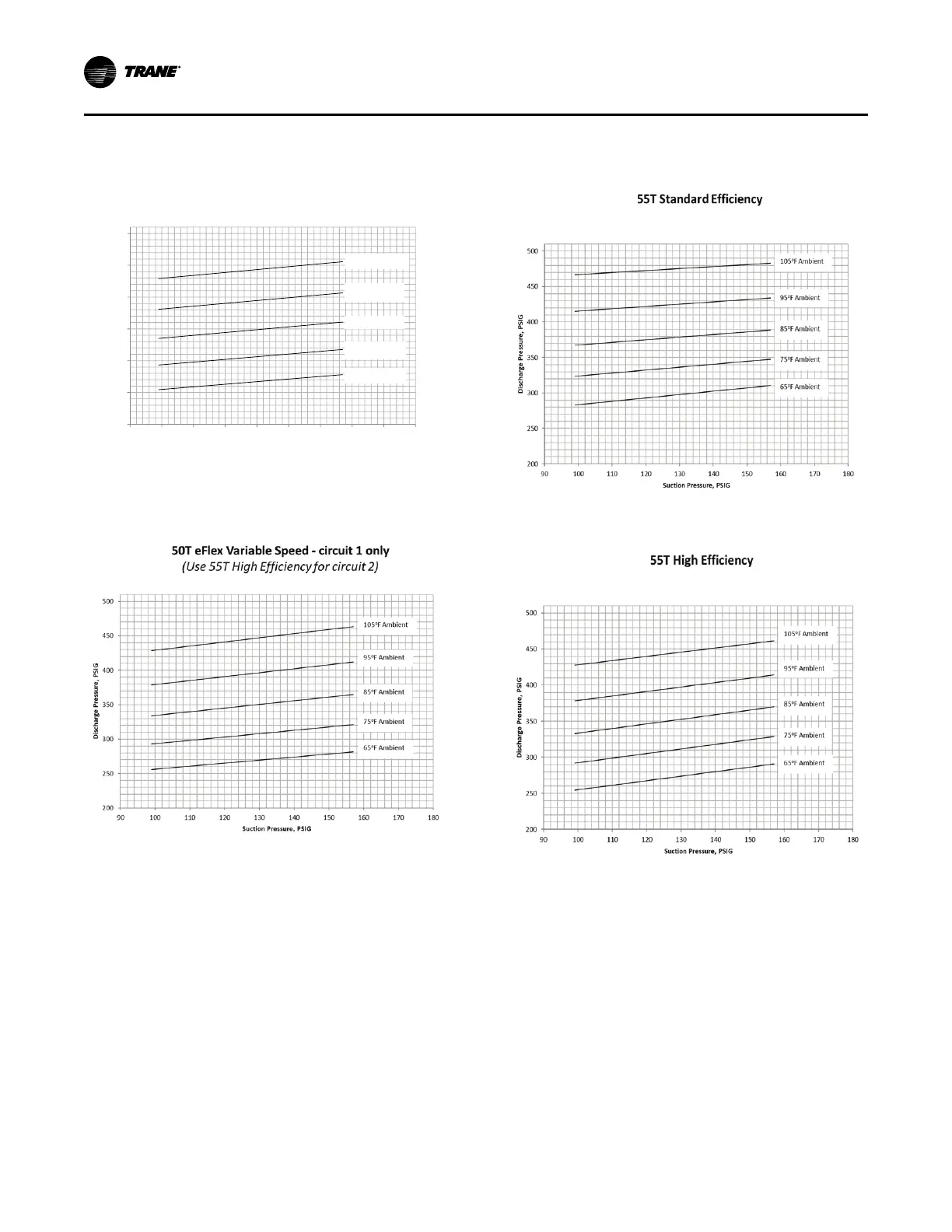

Figure 76. 50 ton high efficiency operating pressure
curve (all compressors and condenser fans ON)
200
250
300
350
400
450
500
90 100 110 120 130 140 150 160 170 180
Discharge Pressure, PSIG
Sucon Pressure, PSIG
50T High Efficiency
105
o
F Ambient
95
o
F Ambient
85
o
F Ambient
75
o
F Ambient
65
o
F Ambient
Figure 77. 50 ton eFlex variable speed—circuit 1 only
operating pressure curve (compressor at 100% and all
condenser fans ON).
Figure 78. 55 ton standard efficiency operating
pressure curve (all compressors and condenser fans
ON)
Figure 79. 55 ton high efficiency operating pressure
curve (all compressors and condenser fans ON)
UUnniitt SSttaarrttuupp
