RT-SVX072A-EN
107

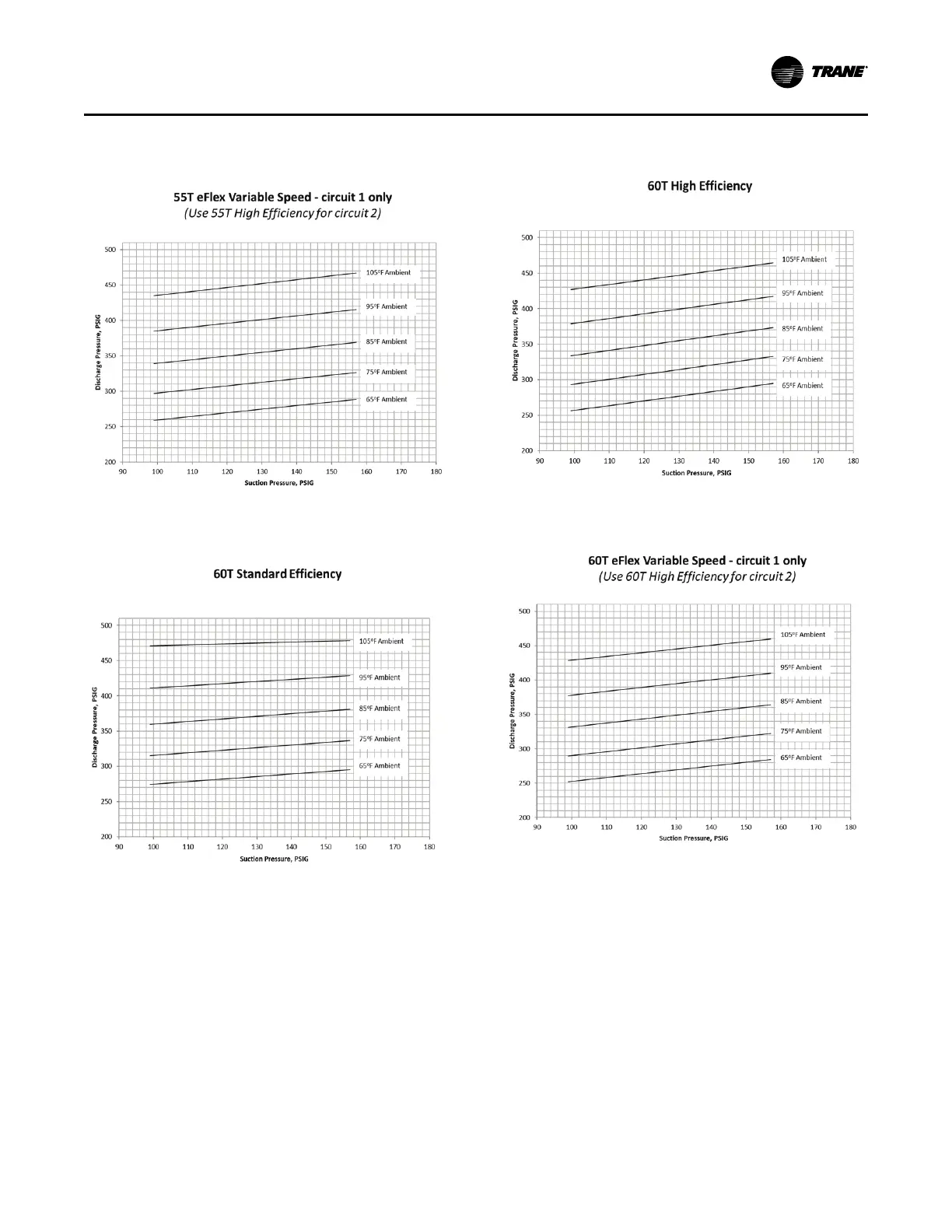

Figure 80. 55 ton eFlex variable speed—circuit 1
operating pressure curve (all compressors and
condenser fans ON)
Figure 81. 60 ton standard efficiency operating
pressure curve (all compressors and condenser fans
ON)
Figure 82. 60 ton high efficiency operating pressure
curve (all compressors and condenser fans ON)
Figure 83. 60 ton eFlex variable speed—circuit 1 only
operating pressure curve (compressor at 100% and all
condenser fans ON).
UUnniitt SSttaarrttuupp
