108
RT-SVX072A-EN

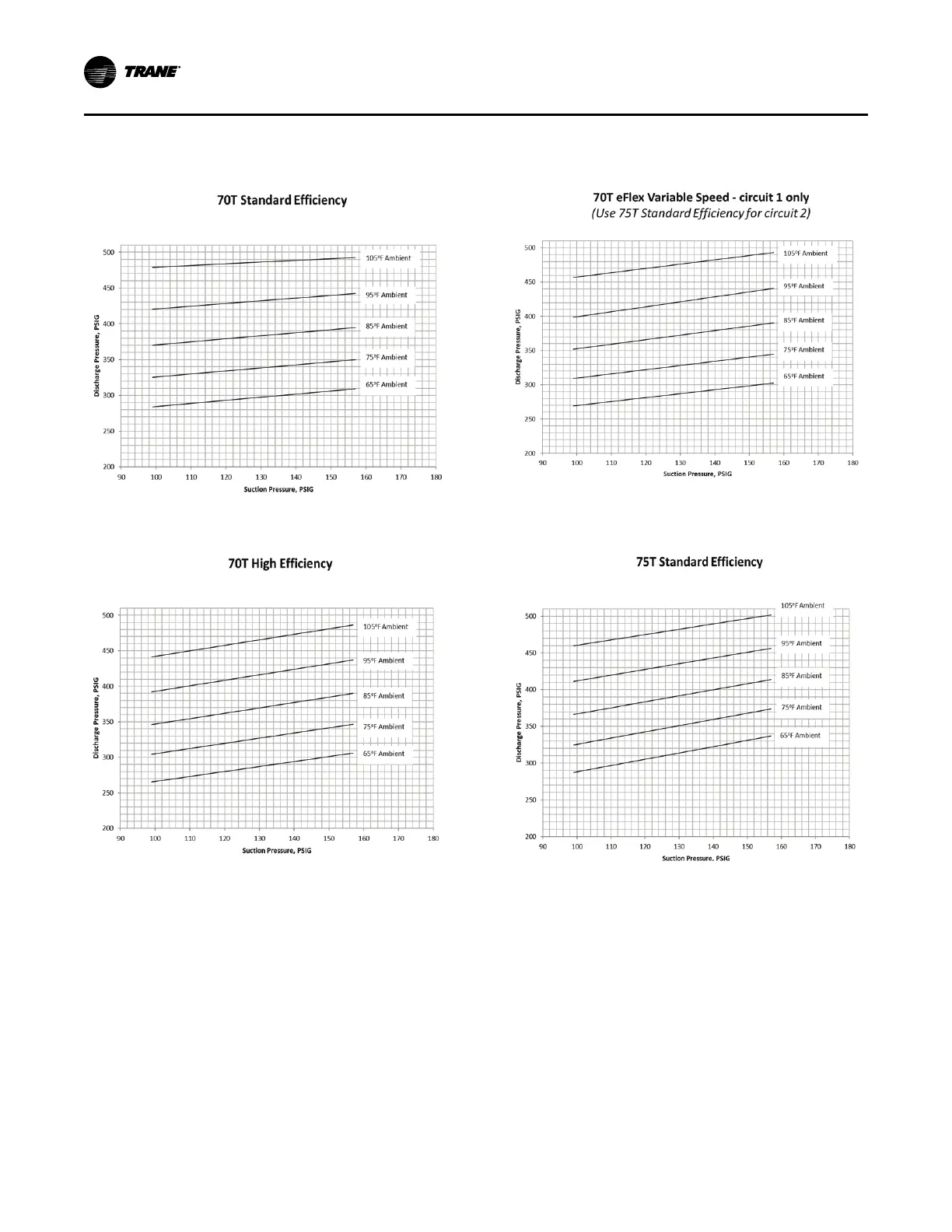

Figure 84. 70 ton standard efficiency operating
pressure curve (all compressors and condenser fans
ON)
Figure 85. 70 ton high efficiency operating pressure
curve (all compressors and condenser fans ON)
Figure 86. 70 ton eFlex variable speed—circuit 1 only
operating, high efficiency pressure curve (compressor
at 100% and all condenser fans ON).
Figure 87. 75 ton standard efficiency operating
pressure curve (all compressors and condenser fans
ON)
UUnniitt SSttaarrttuupp
