Trane IntelliPak 2 - Pressure Curves; (60 Hz) Air-Cooled Condensers

110
RT-SVX073A-EN
Pressure Curves
(60 Hz) Air-Cooled Condensers

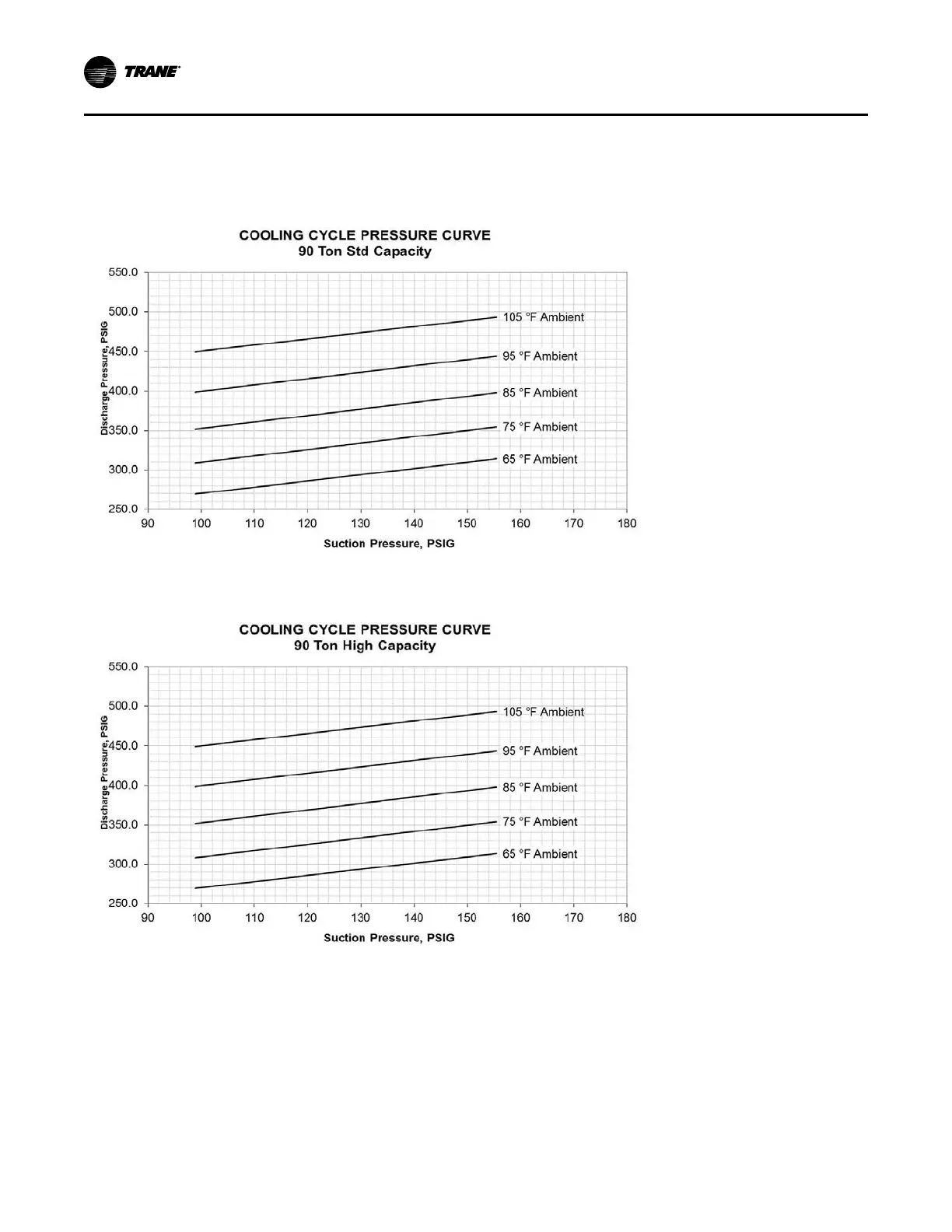

Figure 57. Operating pressure curve (all comp. and cond. fans per ckt. on)—90 tons std. capacity
Figure 58. Operating pressure curve (all comp. and cond. fans per ckt. on)—90 tons high capacity
Unit Startup
