Maintenance
BAS-SVX08D-E468

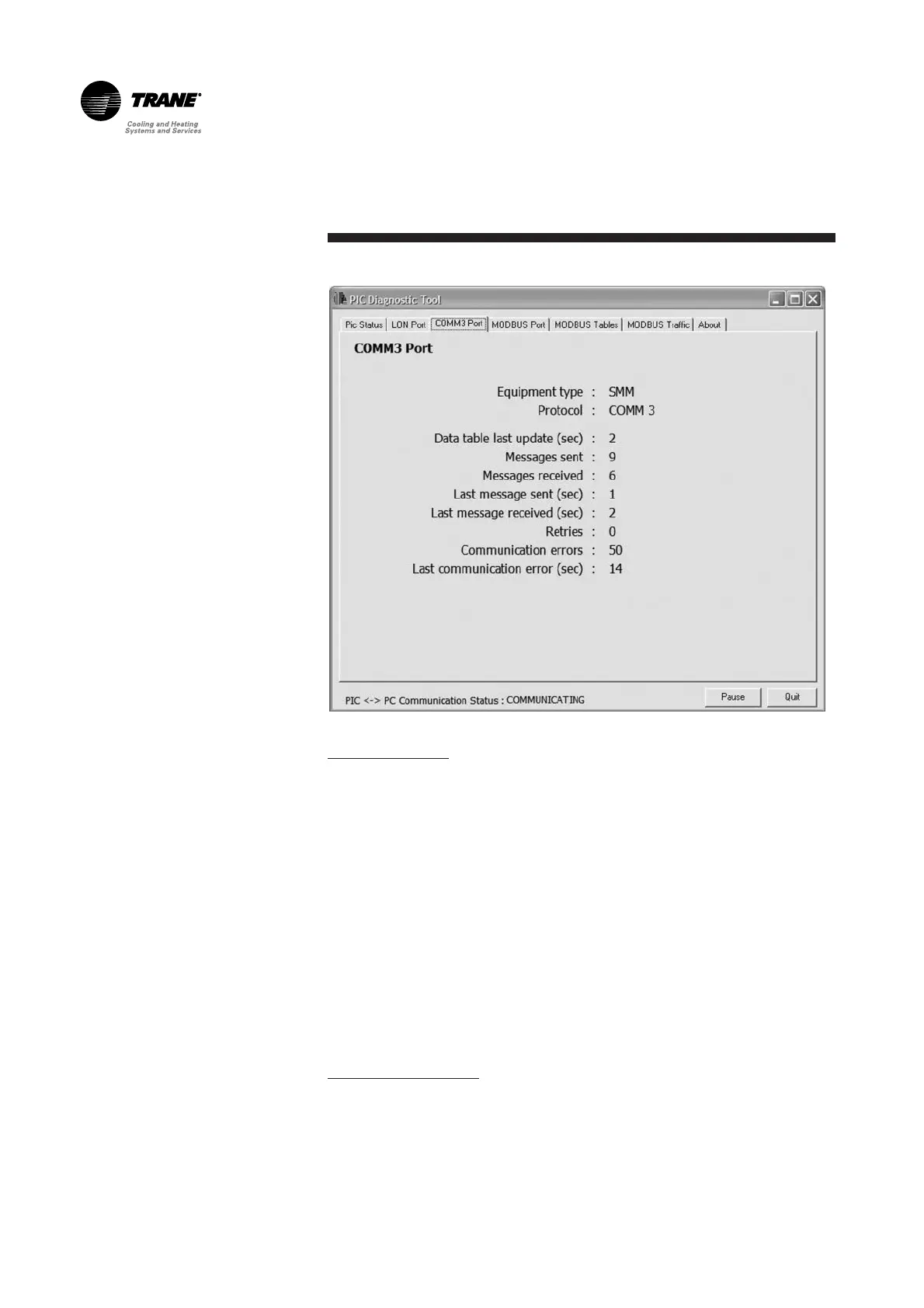

Fields description
- Equipment type: Description of the controller the PIC is configured with.
- Protocol: Active communication protocol
- Data table last update (sec): Time elapsed since the Trane Equipment data
point table was refreshed
- Message sent: Number of messages the PIC transmitted
- Message received: Number of messages the PIC received
- Last message sent (sec): Time elapsed since the PIC sent the latest
message
- Last Message received (sec): Time elapsed since the PIC received the latest
message
- Retries: Number of times the PIC re-sent questions to the equipment
- Communication errors: self-explanatory
- Last communication error (sec): Time elapsed since the last communication
error
Command description
- Pause: freeze the screen with current values
- Quit: exits the diagnostic tool
