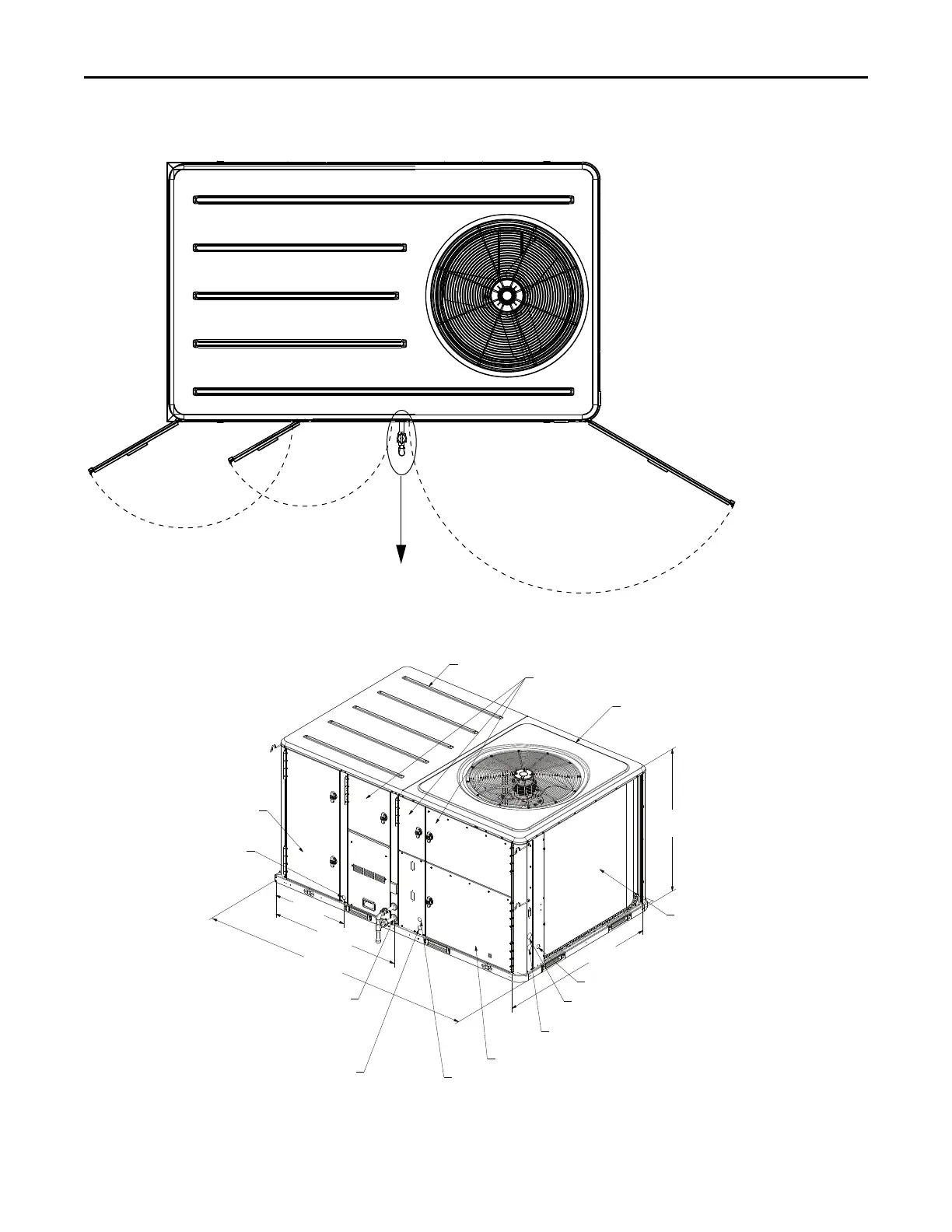

Figure 16. B.0 cabinet – swing diameter for hinged door(s) option
21 3/8”
543 MM
17”
432 MM
34 5/8”
879 MM
Through-the-Base Gas Piping
Figure 17. C.0 cabinet
CONDENSER COIL
OUTDOOR TOP PANEL
INDOOR TOP PANEL
ALTERNATE CONDENSATE DRAIN
CONNECTION 3/4 - 14 NPT DIA HOLE
CONTROL BOX SECTION
ACCESS PANEL
UNIT POWER WIRE
1-3/8" (35MM) DIA. HOLE
1/2 NPT CONNECTION
(120 MBh)
3/4 NPT GAS CONNECTION
(150 MBh, 200 MBh, 250 MBh)
COMPRESSOR ACCESS PANEL
EVAPORATOR SECTION
ACCESS PANEL
UNIT POWER WIRE
1-3/8" (35MM) DIA. HOLE
UNIT POWER WIRE
2" (50MM) DIA. HOLE
SERVICE GAUGE PORT ACCESS
1-3/8" (35MM) DIA. HOLE
UNIT CONTROL WIRE
2" (50MM) DIA. HOLE
50-7/8"
[1293]
63-1/8"
[1604]
99-5/8"
[2532]
47-7/8"
[1217]
27-5/8"
[700]
Dimensions and Weights
