Trane Precedent TSK036 Series - Dimensions and Weights; Cabinet Size; Dimensional Data

14
RT-SVX092A-EN
Dimensions and Weights
Cabinet Size

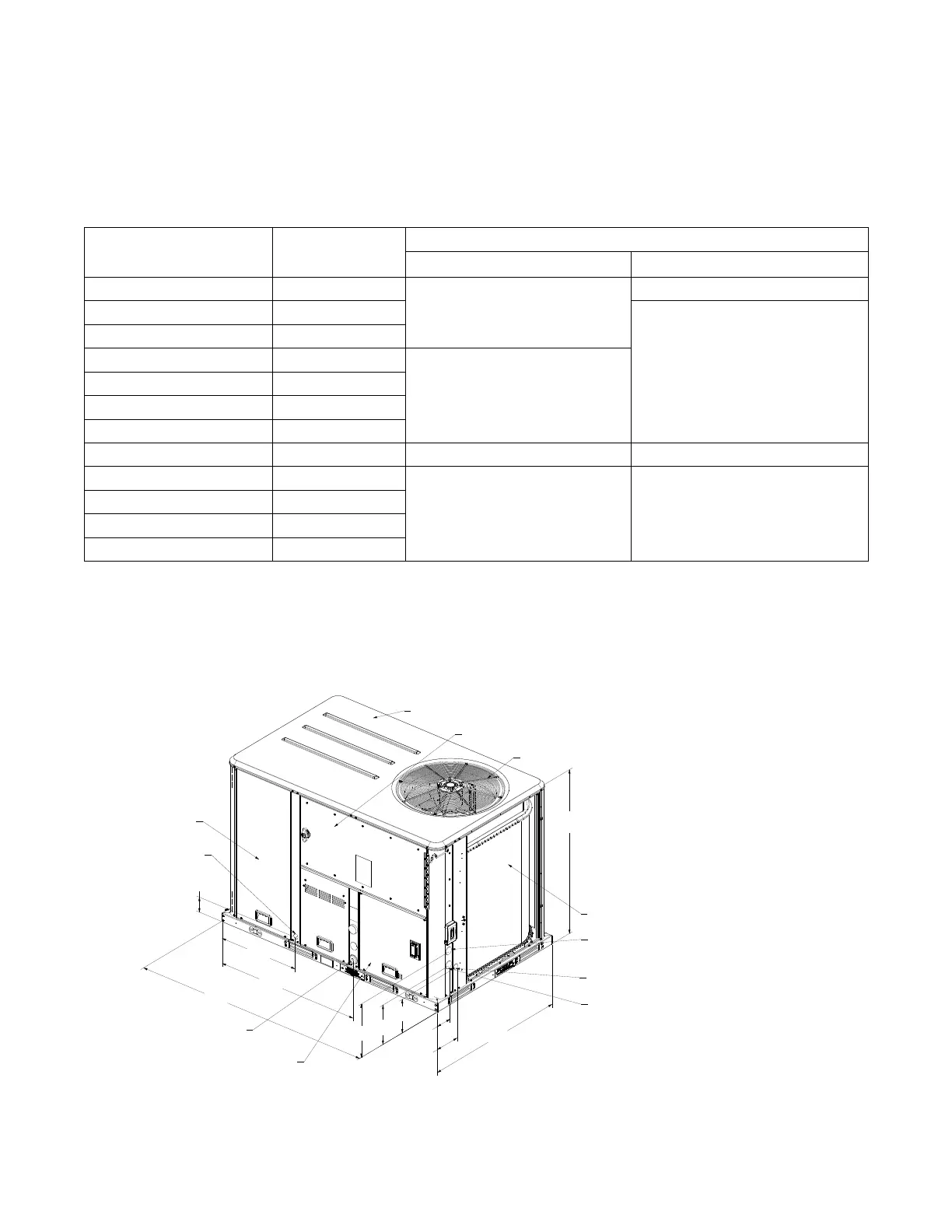

Table 2. Cabinet size — cooling and gas heat
Unit Size (Tons)
Model Number Digits
4, 5, 6
Model
TSK, YSK THK, YHK
3 036
A.0
A.0
4 048
B.0
5 060
6 072
B.0
7.5 090
8.5 102
10 120
12.5 150 C.0 D.0
15 180
D.0 D.0
17.5 210
20 240
25 300
Note: Equipment feature availability is dependent on unit configuration. For more information, see Trane® Select Assist™ or
contact product support.
Dimensional Data
Figure 3. A.0 cabinet
42-1/4"
[1073]
23-9/16"
[598]
69-7/8"
[1775]
4-1/4"
[108]
9-5/8"
[244]
11-1/4"
[286]
15-1/4"
[388]
44-1/4"
[1123]
4-7/8"
[123]
7-5/8"
[193]
46-7/8"
[1192]
TOP PANEL
CONDENSER FAN
CONTROL PANEL ACCESS
EVAPORATOR SECTION
ACCESS PANEL
ALTERNATE CONDENSATE
CONNECTION 3/4 - 14 NPT DIA. HOLE
GAS CONNECTION
1/2 NPT (80, 100 MBh)
3/4 NPT (120, 130, 150 MBh)
COMPRESSOR ACCESS PANEL
UNIT CONTROL WIRE
2" (51 MM) DIA. HOLE
SERVICE GAUGE PORT ACCESS
1-3/8" (35 MM) DIA. HOLE
UNIT POWER WIRE
2" (51 MM) DIA. HOLE
CONDENSER COIL
