S9V2-SVX001-1B-EN
61

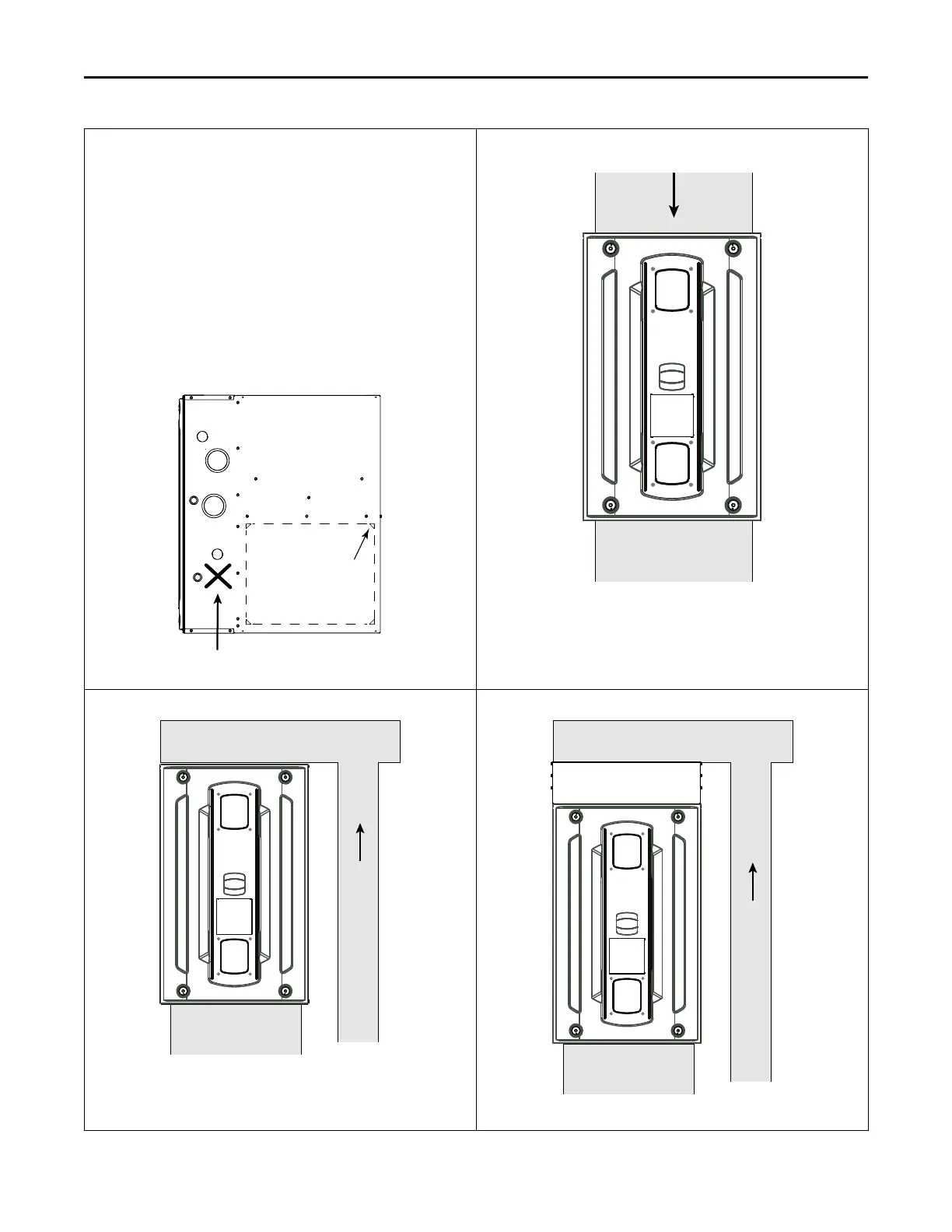

Upflow Furnace with Two Side Returns Downflow Furnace with Top Return
Refer to Step 20, Step 21, Step 3, Step 4
Important: One of the sides must have a transition to allow the
condensate and thermostat wiring to exit the cabinet.
Important: If a transition is not a viable option, a hole may be drilled
in the bottom of the cabinet to allow the condensate to
exit. Also, a hole will need to be drilled in the side of the
cabinet for the thermostat wiring to exit.
Important: Make sure not to cut the cabinet in the “No Cut” area.
Notes:
• If using one transition, the condensate and thermostat
wiring will exit on the transition side.
• If using a filter boxes, use transitions, if possible, to
attach the filter boxes to the furnace cabinet. If
transitions are not used, condensate may exit through
the bottom of the furnace.
Use four corner guides
to create cutout
No Cut Area
Refer to Step 16, Step 17, Step 18, Step 19
Downflow Furnace with Top Return and Plenum
Refer to Step 20, Step 22, Step 3, Step 4
Downflow Furnace with Top Return and Plenum with Filter Box
Refer to Step 20, Step 23, Step 24, Step 4
FFuurrnnaaccee GGeenneerraall IInnssttaallllaattiioonn
