S9V2-SVX001-1B-EN
75

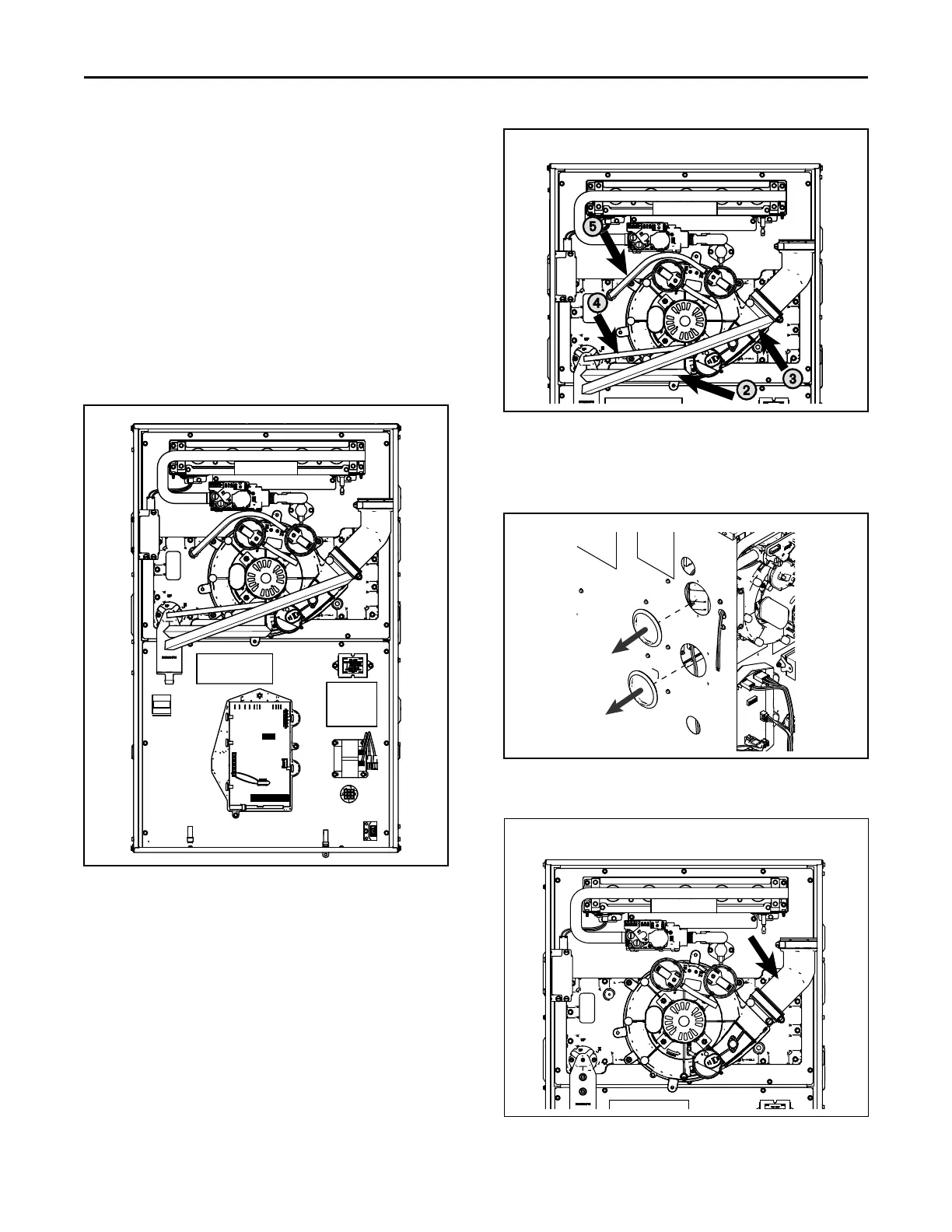

Upflow Furnace in Upflow
Position - Left Side Vented
Combustion Air
Changes need to be made to the inducer orientation
when installing the upflow furnace with the
combustion air vented through the side. Additional
changes are needed for hose routing and PS2 rotation.
The below figure shows the furnace as it is sent from
the factory.
Use the following steps to modify the furnace for
upflow with side venting of combustion air.
IImmppoorrttaanntt:: Right side vent outlet is not allowed
because condensate will not drain.
Before proceeding, lay unit on its back to make
conversion easier.
1. Disconnect all drain tubes from condensate trap.
NNoottee:: When removing condensate hoses from the
condensate trap, hold the trap with your hand to
prevent the trap from breaking. Removing the
trap before the hoses is also an option.
2. Remove drain tubing from bottom of inducer
housing.
3. Remove rain gutter tubing from inducer outlet.
4. Remove tubing from condensate pressure switch.
5. Remove tubing from PS2 to cold header.
3
4
2
5
6. Remove two 3” plugs on left side of cabinet. To be
used for combustion air and vent exhaust.
7. Install the two 3” plugs into the two 3” default
openings on the top of the cabinet.
8. Loosen the clamp holding the 45° elbow. Remove
the elbow and discard.
FFuurrnnaaccee CCoommbbuussttiioonn AAiirr EExxhhaauusstt OOppttiioonnss
