Trane Tracer AdaptiView Installation Instructions

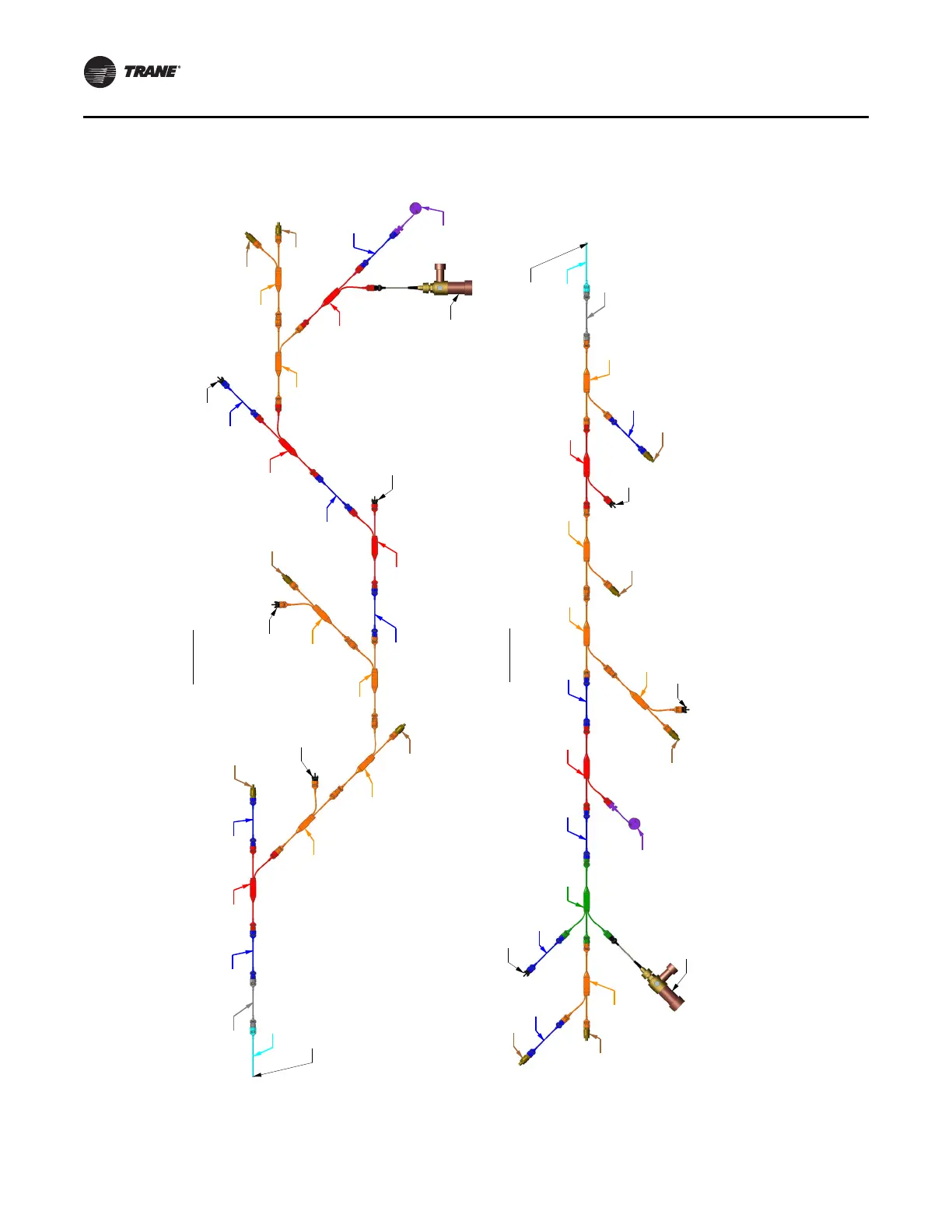

Figure 54. Global harness wiring diagram — 4 compressor unit, 3-pass, 45 foot base
CIRCUIT 1
CIRCUIT 2
1625-02
TO CONTROL PANEL POWER SUPPLY 1U2-J3
1623-02
1623-01
1622-01
1623-01
3PT2
1622-02
3RT2
1622-02
3PT4
1622-02
1622-02
3RT1
3PT3
1623-01
1622-01
6RT1
1623-01
1622-01
1623-01
1622-02
1622-02
3PT1
3PT5
1622-01
1623-01
3LL1
3V1
TO CONTROL PANEL
POWER SUPPLY 2U2-J3
1625-02
1623-02
1622-02
1623-01
4PT2
1622-01
4RT2
4PT4
1622-02
4RT
4PT3
1623-01
1622-01
4LL1
1623-01
1622-03
1623-01
4V1
1622-02
4PT1
1623-01
4PT5
1622-02
1622-02
6RT3
6RT2
Wiring
