Trane Tracer MP581

Chapter 13 Installing EX2 expansion modules
78 CNT-SVN01C-EN

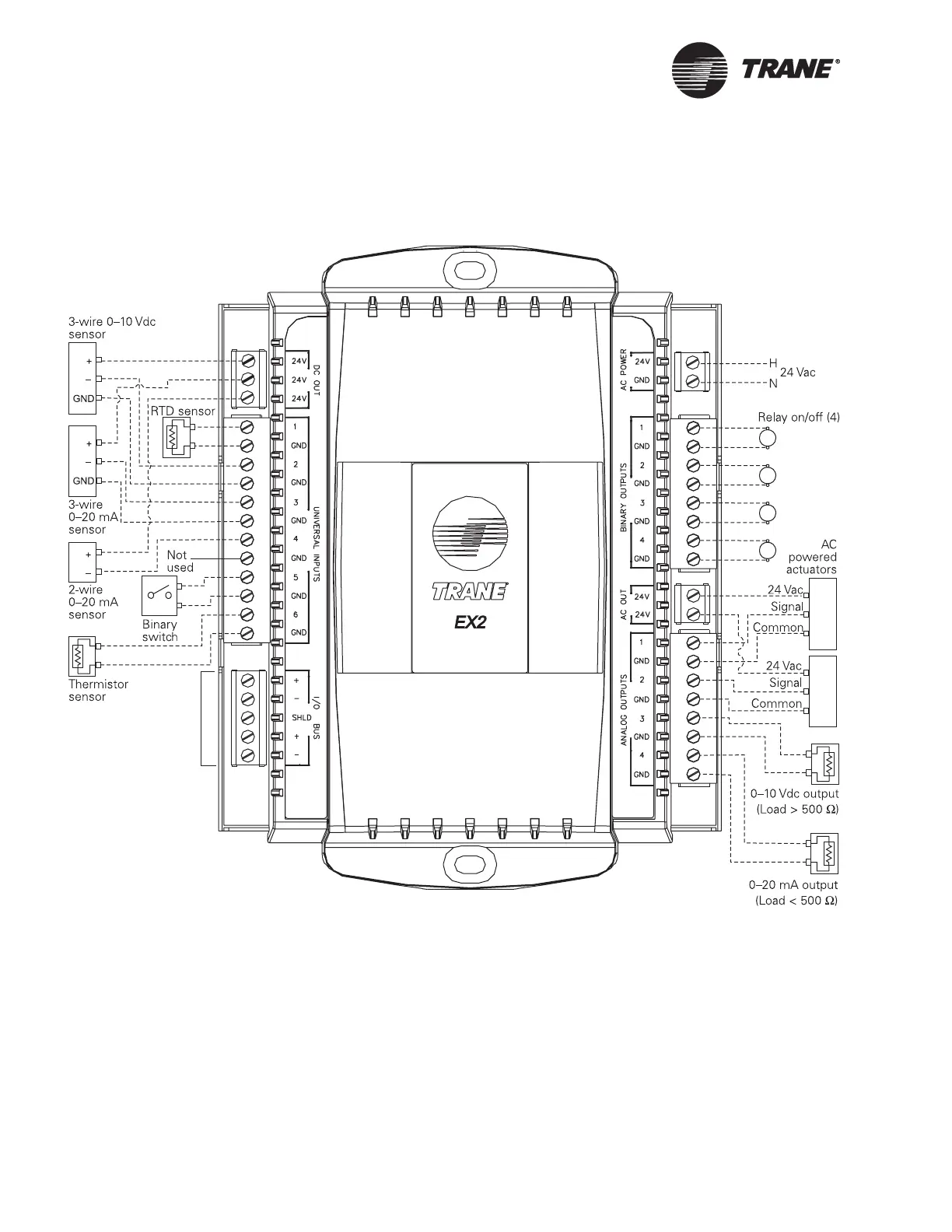

Figure 50. Typical input/output terminal wiring diagram for the EX2 expansion module
I/O bus terminals
(see “I/O bus wiring”
on page 74)
