Trane Tracer TD7 User Manual

BAS-SVX50F-EN 13
Installing the Tracer TD7 Display
Installing the TD7 Display in a Trane Large Enclosure
Important: The enclosure door must be installed on the large enclosure prior to installing the
TD7 display.
Order numbers for the Trane Large enclosure (display
-capable
door) are:
• X13651553010 (120 VAC)
• X13651555010 (230 VAC)
1. Disconn
ect power at the circuit breaker and perform lockout/tagout procedures.
2. Open the enclosure door and disconnect the 24 VAC power from the UC600.
3. Holding the display, insert the power cable
1(attached to the TD7) through the display opening
on the front of the enclosure door.
4. Slightly tilt the TD7 display while inserting it into the d
oor. When fully and properly positioned,
the TD7 display will lay flush against the enclosure door.
5. While holding the TD7 displ
ay, inse
rt and hand-tighten the four M-4 screws 2 onto the 
brackets 3.
6. Securely tighten the M-4 screws using
a Phillips screwdriver.

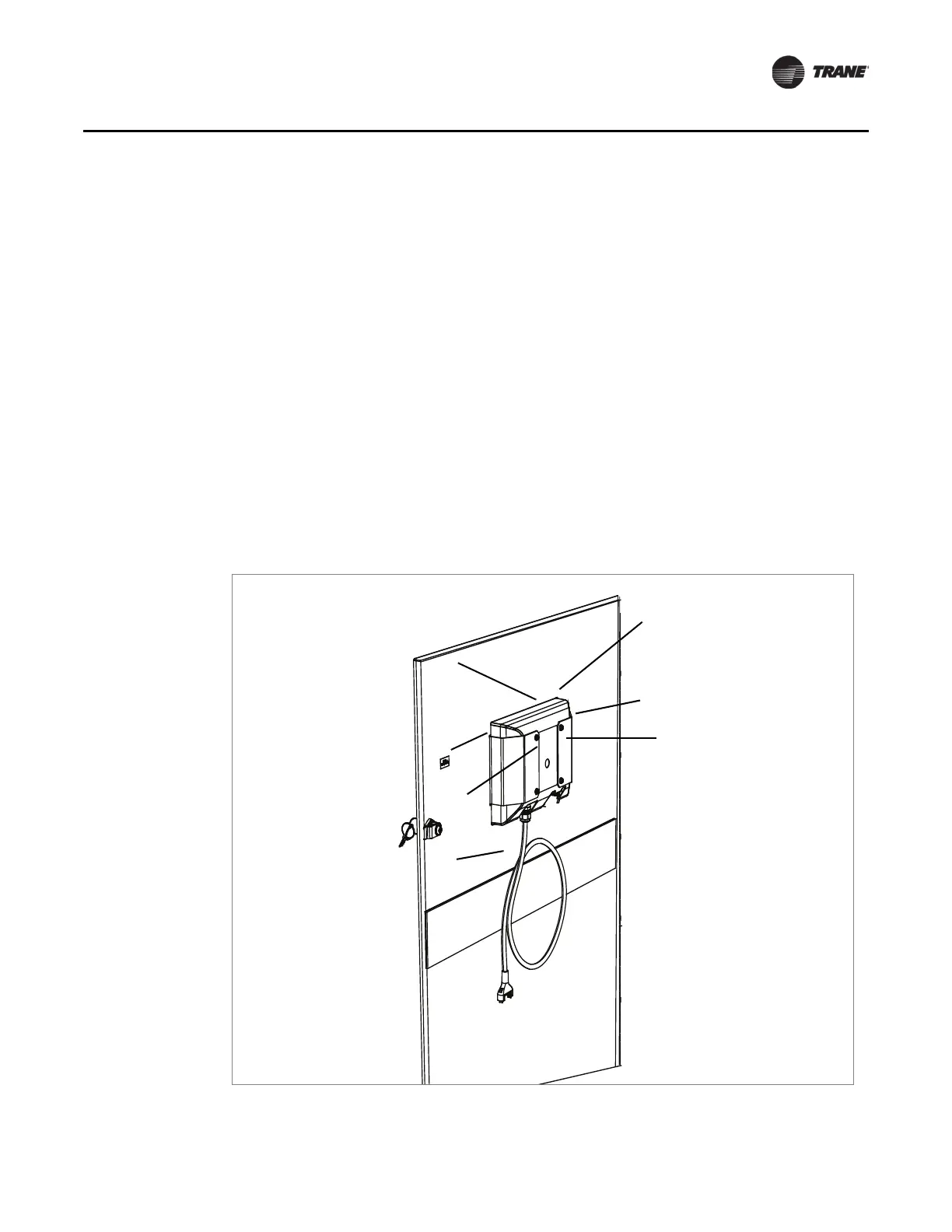

Figure 2. Installing the TD7 display in a large enclosure
1
2
3
3
2
2
2
