46 BAS-SVX50F-EN
Settings
Header Data Point
Use the arrow button on the Display Preferences screen to advance to page 2. Touch the Header
Data Point button to open the associated screen. The Header Data Point appears in the top right
display area on all screens. Use the arrow buttons to scroll through the points. Click Add to move
the highlighted point to the right side of the screen(Figure 37, p. 46). Click Save.

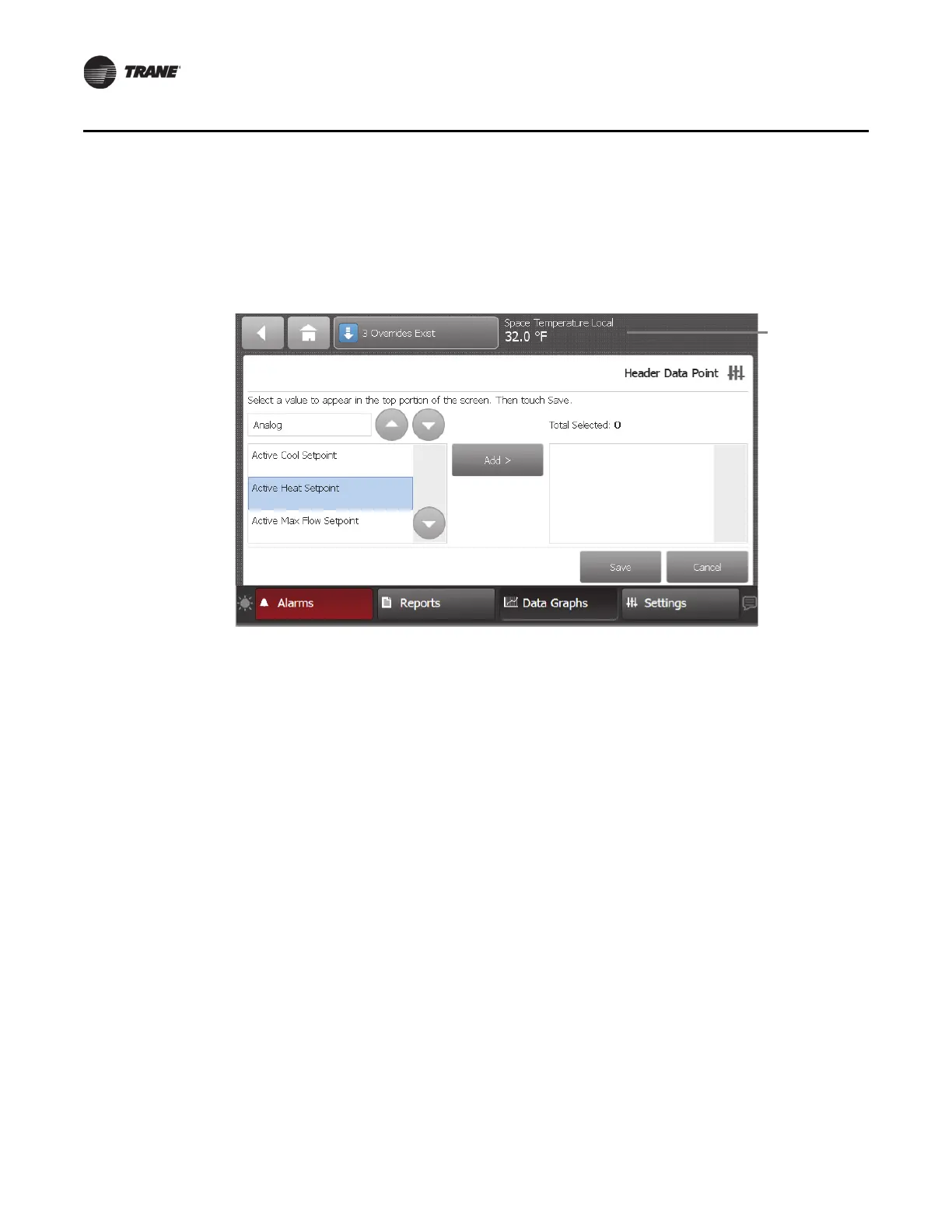

Figure 37. Setting the header data point
Home Page
Use the arrow button on the Display Preferences screen to advance to page 2. Touch the Home Page
button to open the associated screen. This function allows you to choose what will display when
the home button is touched. Available options are: the All Points report, the Override Summary
Report, Active Alarms, any of the three Custom Reports, or any custom graphic.
