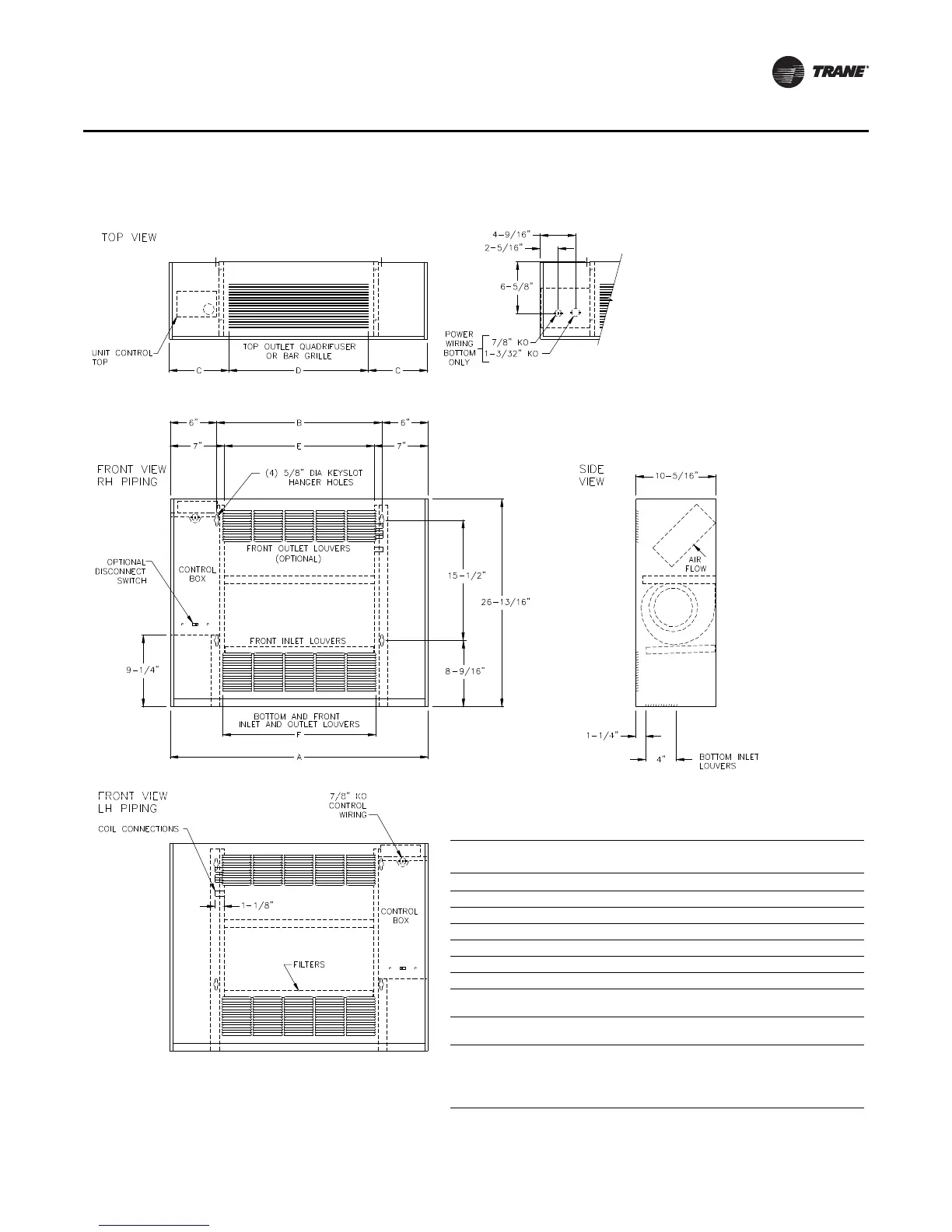

Vertical Wall Hung Cabinet Unit Dimensions (in.) and Weights
(lb)
Unit Size 02–03 04 06 08 10–12
A 33-5/16” 38-5/16” 47-13/16” 56-5/16” 75-5/16”
B 21-5/16” 26-5/16” 35-13/16” 44-5/16” 63-5/16”
C 7-5/8” 7-1/8” 8-7/8” 7-1/8” 7-5/8”
D 18” 24” 30” 42” 60”
E 19-5/16” 24-5/16” 33-13/16” 42-5/16” 61-5/16”
F 19-3/4” 23-3/4” 31-3/4” 39-3/4” 59-3/4”
Operating
Weight
97 125 155 164 218
Shipping
Weight
84 112 139 148 200
Notes:
1. Coil connections are always opposite the control box side.
2. Coil connections are 5/8” O.D. sweat. See p. 30 and p. 31 for locations.
3. All duct collar dimensions are to the outside of the collar.
4. See p. 34 for dimensions for outside air openings.
