Installation—General
Notes:
• The trim ring assembly cannot accomodate unlevel ceilings.
• On sizes 8, 10, and 12 center installation position and use 2- or 3.5-inch bolts, whichever is best
suited for installation. Also, install two safety chains assemblies on these sizes.
• Expansion collar is furnished with fan-coil with bottom return only. The collar is not necessary
for Force-Flo units.
Installation Checklist
The following checklist is only an abbreviated guide to the detailed installation procedures given
in this manual. Use this list to ensure all necessary procedures are complete. For more detailed
information, refer to the appropriate sections in this manual.

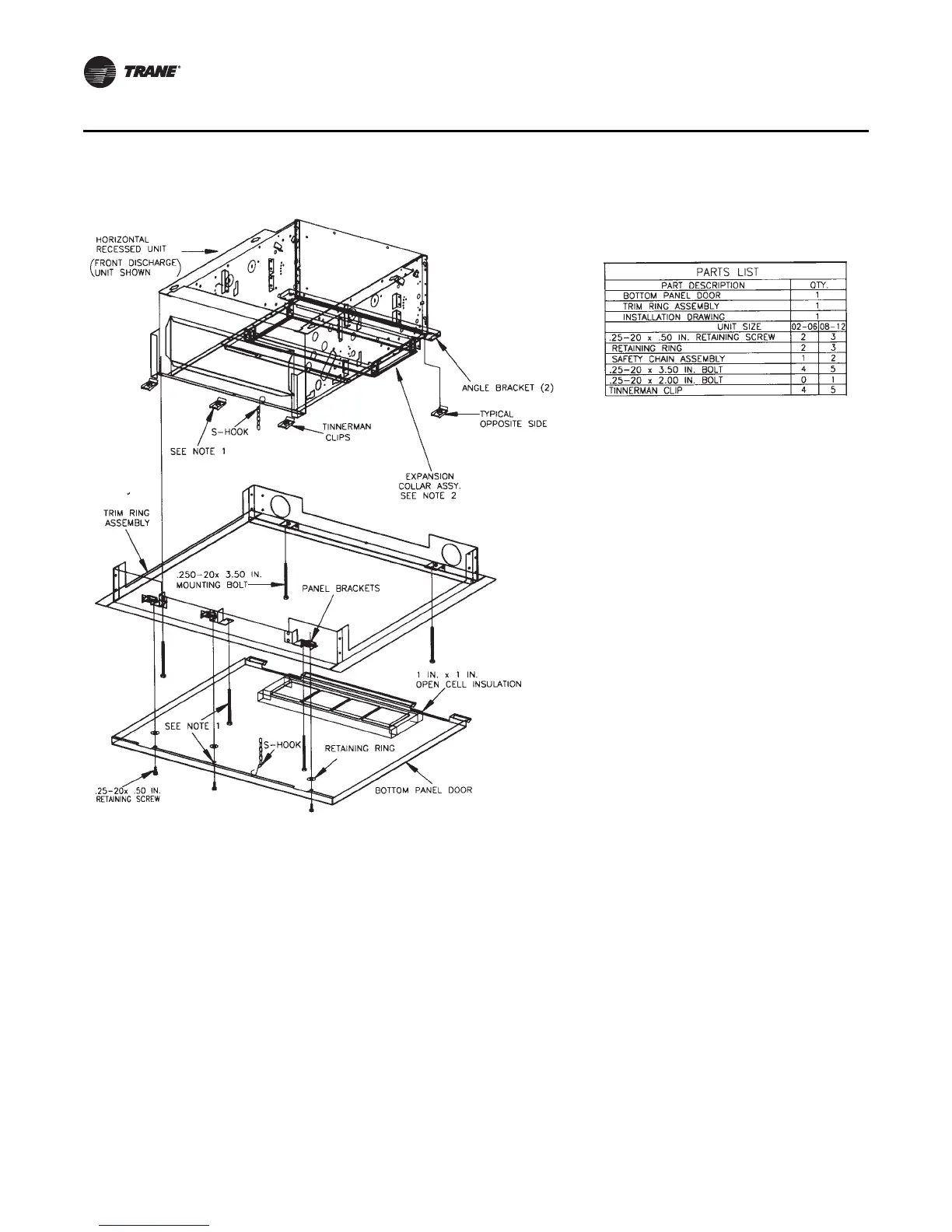

Figure 16. Installing the trim ring assembly on horizontal recessed units
To Next Page
