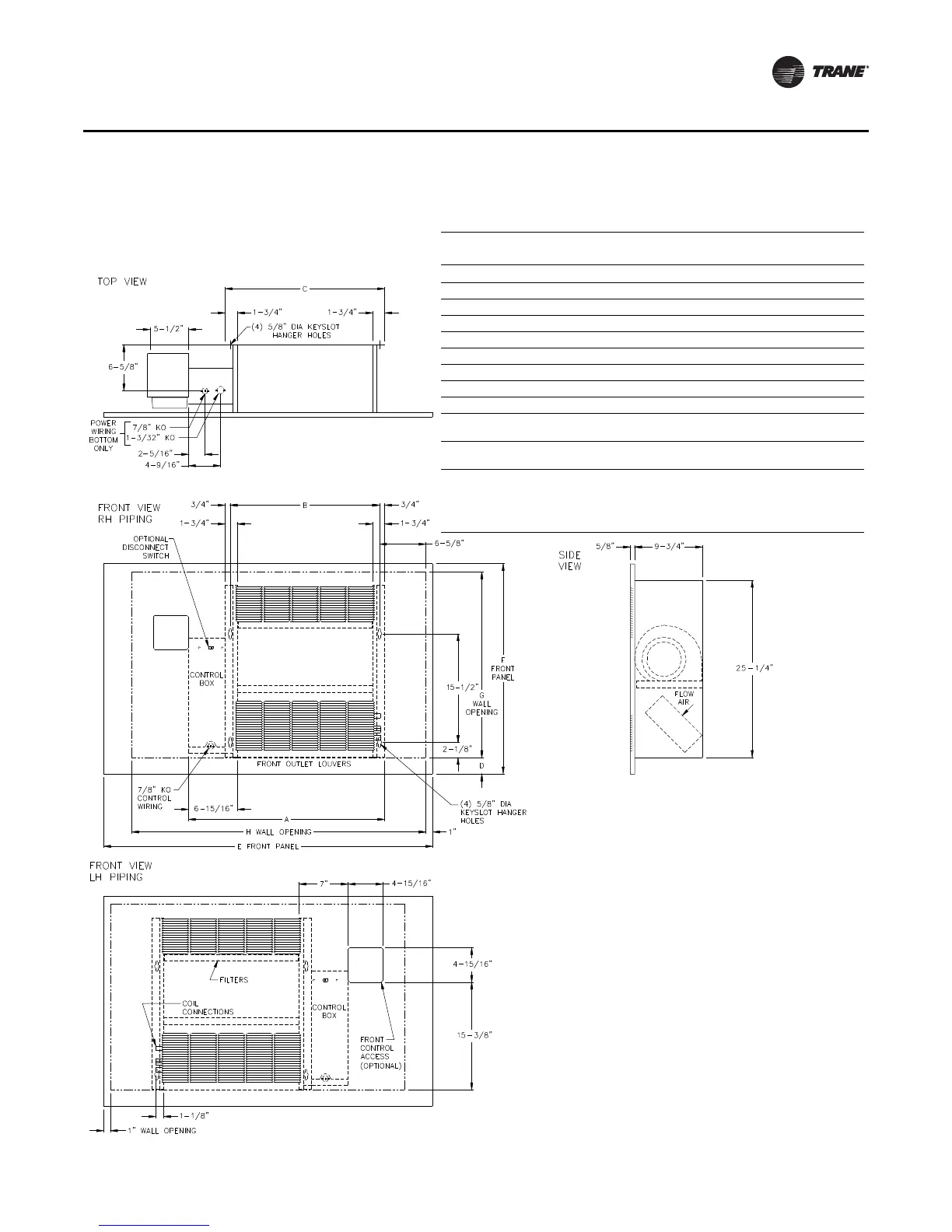

Inverted Vertical Recessed Unit Dimensions (in.) and Weights
(lb)
Unit Size 02–03 04 06 08 10–12
A 27-7/8” 32-7/8” 42-3/8” 50-7/8” 69-7/8”
B 21-5/16” 26-5/16” 35-13/16” 44-5/16” 63-5/16”
C 22-13/16” 27-13/16” 37-5/16” 45-13/16” 64-13/16”
D 2-3/8” 2-3/8” 2-3/8” 4-1/8” 4-1/8”
E 47” 51” 63” 65-1/2” 89-1/2”
F 30” 30” 30” 33-1/2” 33-1/2”
G 26-1/2” 26-1/2” 26-1/2” 27-1/2” 27-1/2”
H 42” 48” 57” 63” 87”
Operating
Weight
78 88 128 139 253
Shipping
Weight
68 78 118 129 243
Notes:
1. Coil connections are always opposite the control box side.
2. Coil connections are 5/8” O.D. sweat. See p. 31 for locations.
3. All duct collar dimensions are to the outside of the collar.
4. See p. 34 for dimensions for outside air openings.
