Dimensions and Weights
Low Vertical Cabinet, Model L
10-15/16"
4-7/16"
8-1/2"
10-15/16"
2-3/8"
12-1/4"
12-1/2"
3-7/8"
7-1/2"
9-13/16"
2-11/16"
1-13/16"
1-13/16"
3-1/4"
6-7/16"
11-5/16"
13-3/16"
1-5/16"
13-1/2"
1-15/16"
14-1/2"
11-5/16"
1-1/8"
3-1/16"

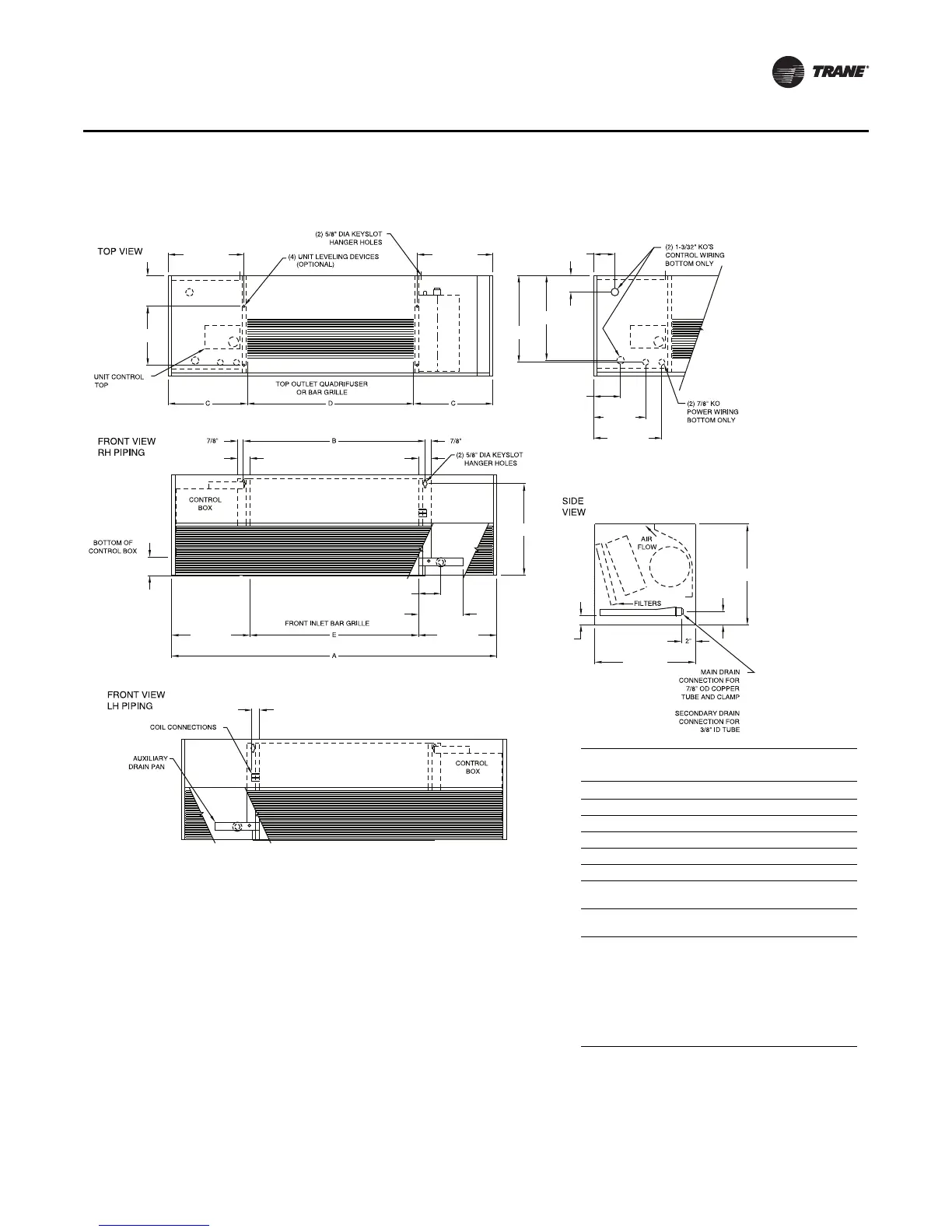

Low Vertical Cabinet Unit Dimensions (in.)
and Weights (lb)
Unit Size 03 04 06
A 46-15/16” 56-7/16” 64-15/16”
B 26-1/4” 35-3/4” 44-1/4”
C 11-7/16” 13-5/16” 11-7/16”
D 24” 30” 42”
E 24-1/4” 33-3/4” 42-1/4”
Operating
Weight
125 155 164
Shipping
Weight
112 139 148
Notes:
1. Coil connections are always on the drain pan side
and opposite the control box.
2. Coil connections are 5/8” O.D. sweat.
3. All duct collar dimensions are to the outside of the
collar.
4. See p. 34 for dimensions for outside air openings.
5. Serviceability for some components within this
unit may require panel or drain pan removal.
