Trane UniTrane Installation, Operation And Maintenance Instructions

UNT-SVX07B-EN 35
Dimensions and Weights

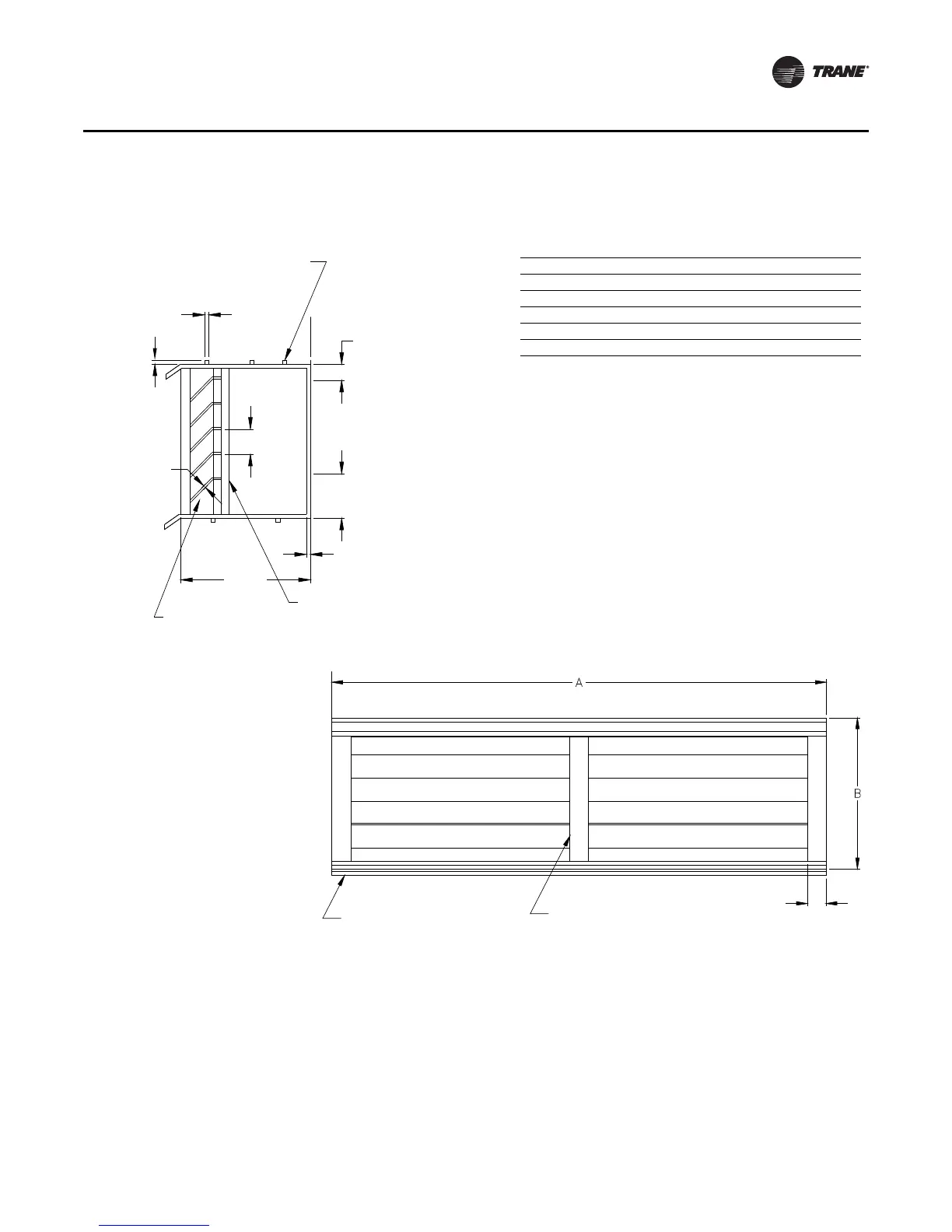

Wall Box
Wall box dimensions
Unit Size, Ref. only Dimensions A x B Internal Supports
02–03 24-3/8 x 4- 3/4 1
04 24-3/8 x 7-1/2 1
06 33-1/8 x 7-1/2 2
08 37-1/2 x 7-1/2 3
10–12 58-1/4 x 7-1/2 4
1/2”
1-3/8”
1/8”
4”
Continuous
Mortar Ribs
Top and
Bottom
Clearance for
Drainage
Woven Aluminum
Insect Screen
1/8”
1/8”
1/2”
3/4”
Additional Internal
Supports Equally Spaced
Not to Exceed 12” O.C.
Continuous Drip Lip
Top and Bottom
5/8”
