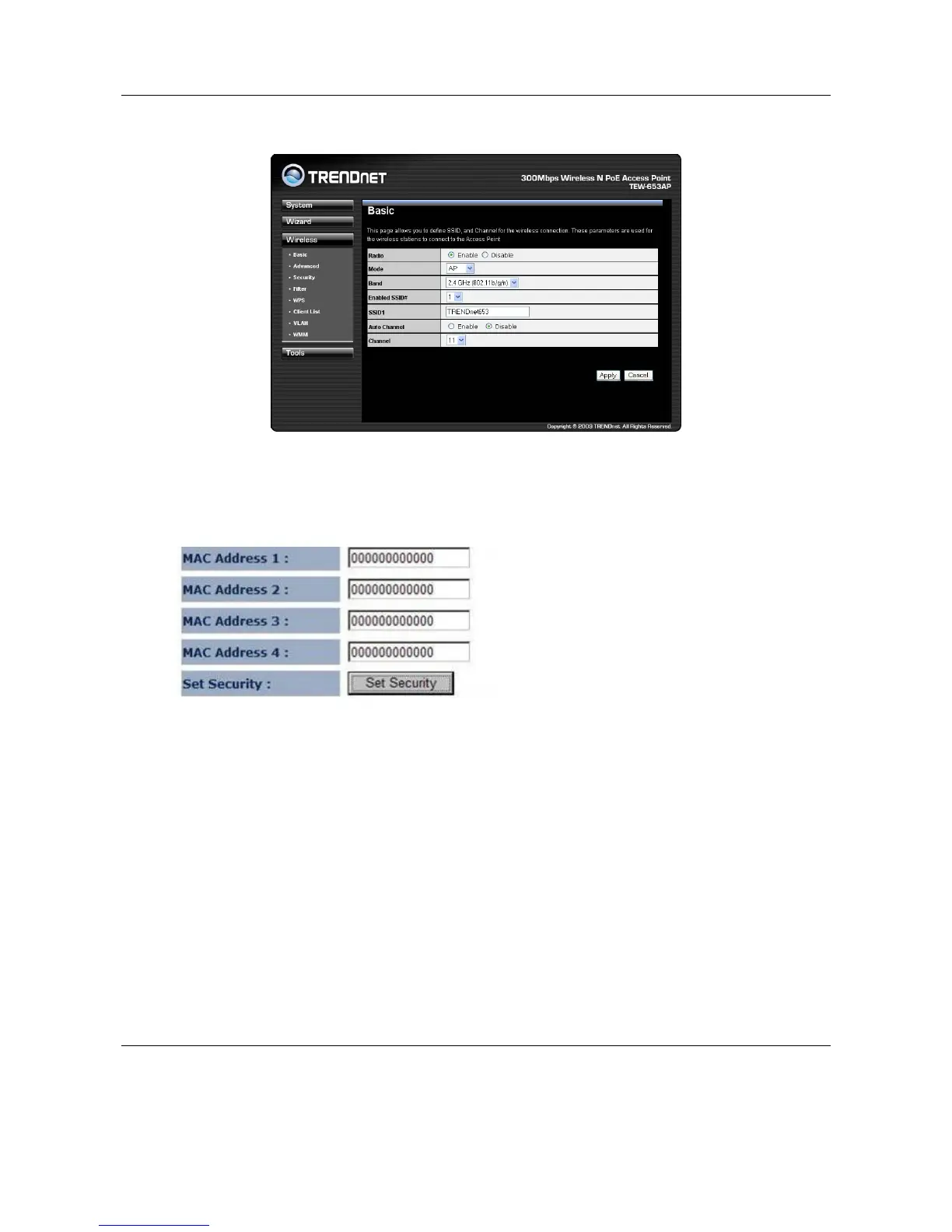

Basic
When Access point is selected this screen allows users configure the wireless settings of the
access point.
Radio: To enable/disable wireless signal.
Mode: Select AP or WDS mode. When WDS is selected the access point becomes a AP+ WDS
mode allowing the access point to interlink with other AP devices through WDS connection, while
maintaining the AP feature to be enabled.
Band: Configure the device into different wireless modes.
• 2.4 GHz (B)
• 2.4 GHz (N)
• 2.4 GHz (B+G)
• 2.4 GHz (G)
• 2.4 GHz (B+G+N)
Enabled SSID#: The device allows you to add up to 4 unique SSID
ESSID#: Description of each configured SSID
MAC Address 1~4: When WDS is selected enter the MAC address of the access points you would
like to establish a WDS connection with.
Advanced
This screen allows users to configure advance settings of the access point.
