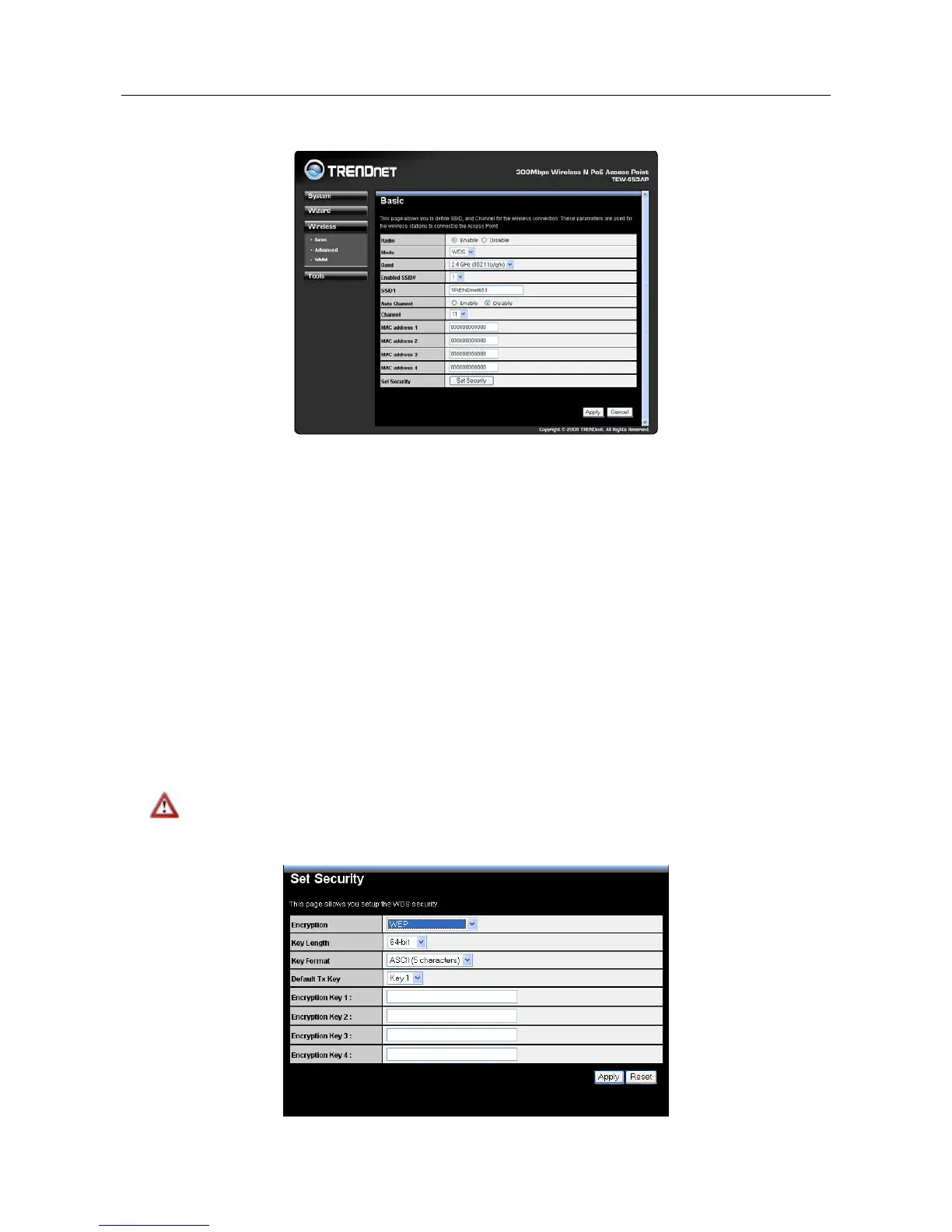

Basic
When WDS (Wireless Distribution System) is selected this screen allows users configure the
wireless settings of the device.
Radio: To enable/disable radio frequency.
Mode: WDS mode allows you to interlink with other AP devices. Setting MAC address and
encryption algorithm
Band: Configure the device into different wireless modes.
2.4 GHz (B)
2.4 GHz (N)
2.4 GHz (B+G)
2.4 GHz (G)
2.4 GHz (B+G+N)
Enabled SSID#: The device allows you to add up to 4 unique SSID
ESSID#: Description of each configured SSID
Channel: You can manually configure a channel to be used.
MAC Address 1~4: To specify MAC address of other AP devices.
MAC address will only show when configured in WDS AP mode.
Security: WEP
Key Length: Select a 64-bit or 128-bit WEP key length from the drop-down list.
