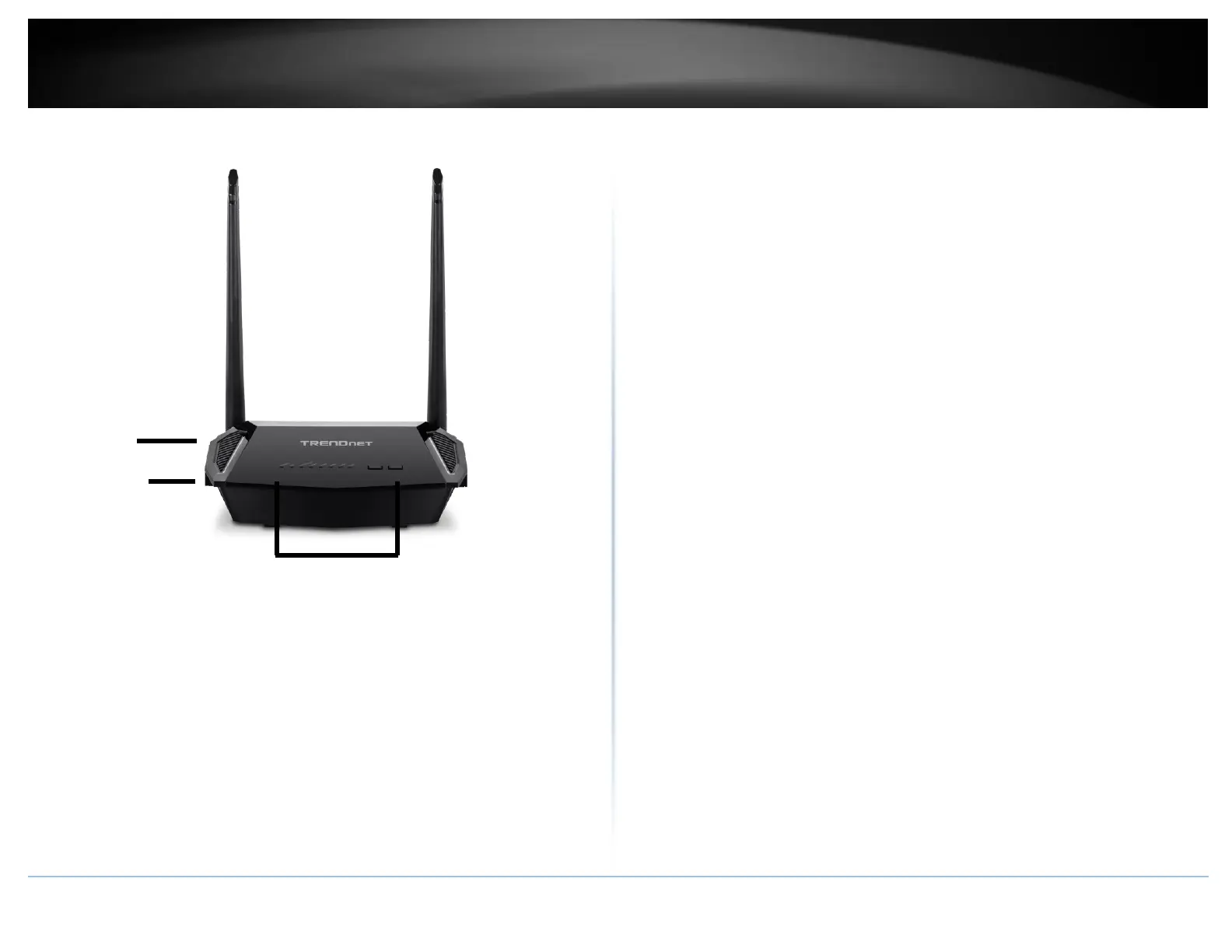

Front View
• Power LED: This LED indicator blinks green when properly connected to a power
supply. When the device is malfunctioned LED indicator will be red.
• Internet & DSL LED: This LED indicator is solid green when the ADSL status of the
modem router has established connection to your ISP and when the modem router
has been properly configured with the settings provided by your ISP. The LED
indicator will turn solid green when the modem router has been properly
configured with the settings provided by your ISP and successful ADSL connection
has been made to your ISP. If only the DSL LED is blinking, then a connection has not
been established with your ISP or RJ-11 cable has been unplugged.
• LAN 1-4 (Link/Activity) LEDs – These LED indicators are solid green when the LAN
ports are successfully connected to your wired network devices (which are turned
on). These LED indicators will blink green while data is transmitted or received
through your modem router’s LAN ports.
• USB: This LED indicator blinks green when a the 3G USB adapter is plugged in.
• WLAN Button: Push this button for 5 seconds to enable and disable your wireless
network. The button will light up green if Wireless is enabled.
• WPS Button: Push this button for 5 seconds to setup WPS between the device and
to your other clients
• USB Port: Connect a 3G USB Modem as a backup
• Reset Button: Push and hold this button for 10 seconds and release to reset your
modem router to its factory defaults.
