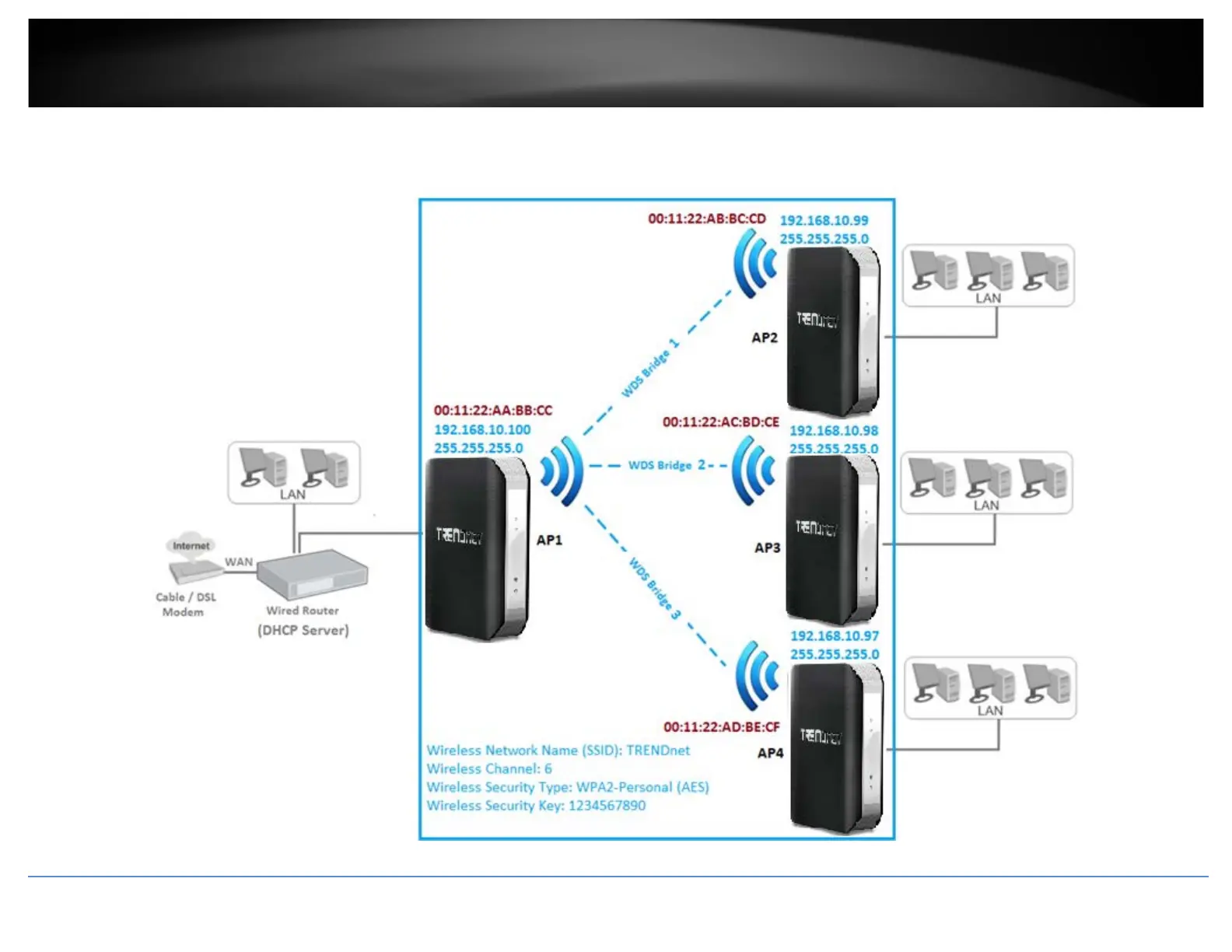

The diagram below illustrates an example of the parameters configured when planning for WDS bridging. Each WDS supported access point is configured with a different IP address (blue)
to prevent IP address conflict. The “wired router” is the only single DHCP server (gray) providing automatic IP address assignment for all client devices in the network. The WDS
parameters required to match on all WDS supported access points in order to establish WDS wireless bridging is configured (blue). The wireless MAC of all devices is noted (red).
