TRENDnet User’s Guide
TEW-820AP

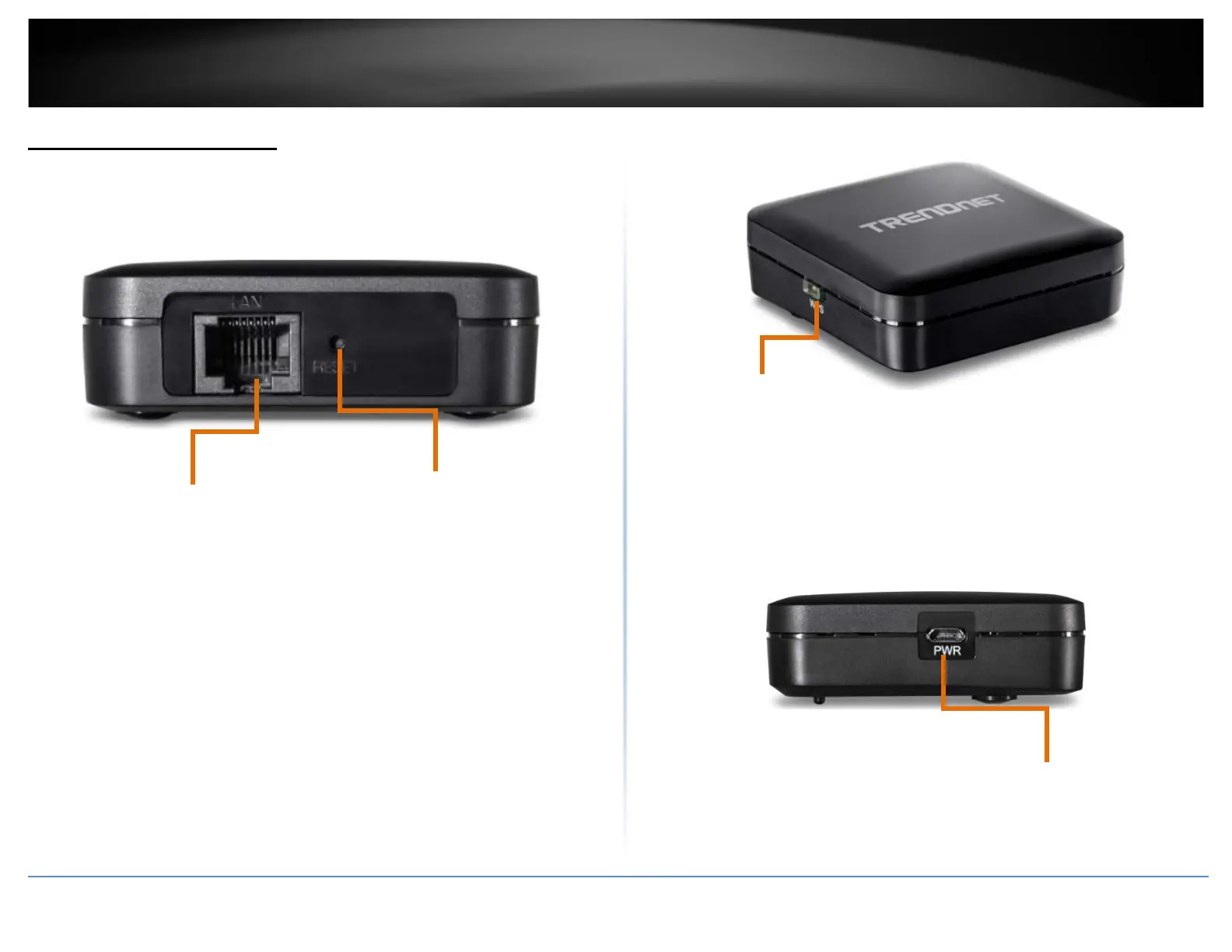

Product Hardware Features
Rear View
• Ethernet LAN Port: Connect Ethernet cables (also called network cables) from your
access point to your router and wired network devices.
• Reset Button: Press and hold this button for 10 seconds to reset the access point.
• WPS Button (Wi-Fi Protected Setup): Push and hold this button for 5 seconds to
activate WPS. The Power LED will blink when WPS is activated.
Front View
• Power LED / WPS Button (Wi-Fi Protected Setup): The indicator is solid green when
your access point is powered on. Otherwise if this LED indicator is off, there is no
power to your access point. The indicator will also blink when WPS is activated. The
LED will stop blinking and remain solid green automatically once WPS process is
completed.
Side View
• Power Port: Connect the included power adapter from your access point power
port and to an available power outlet.
10/100 Mbps
Ethernet/ LAN Port
Power LED / WPS
Button
© Copyright 2014 TRENDnet. All Rights Reserved.
3
