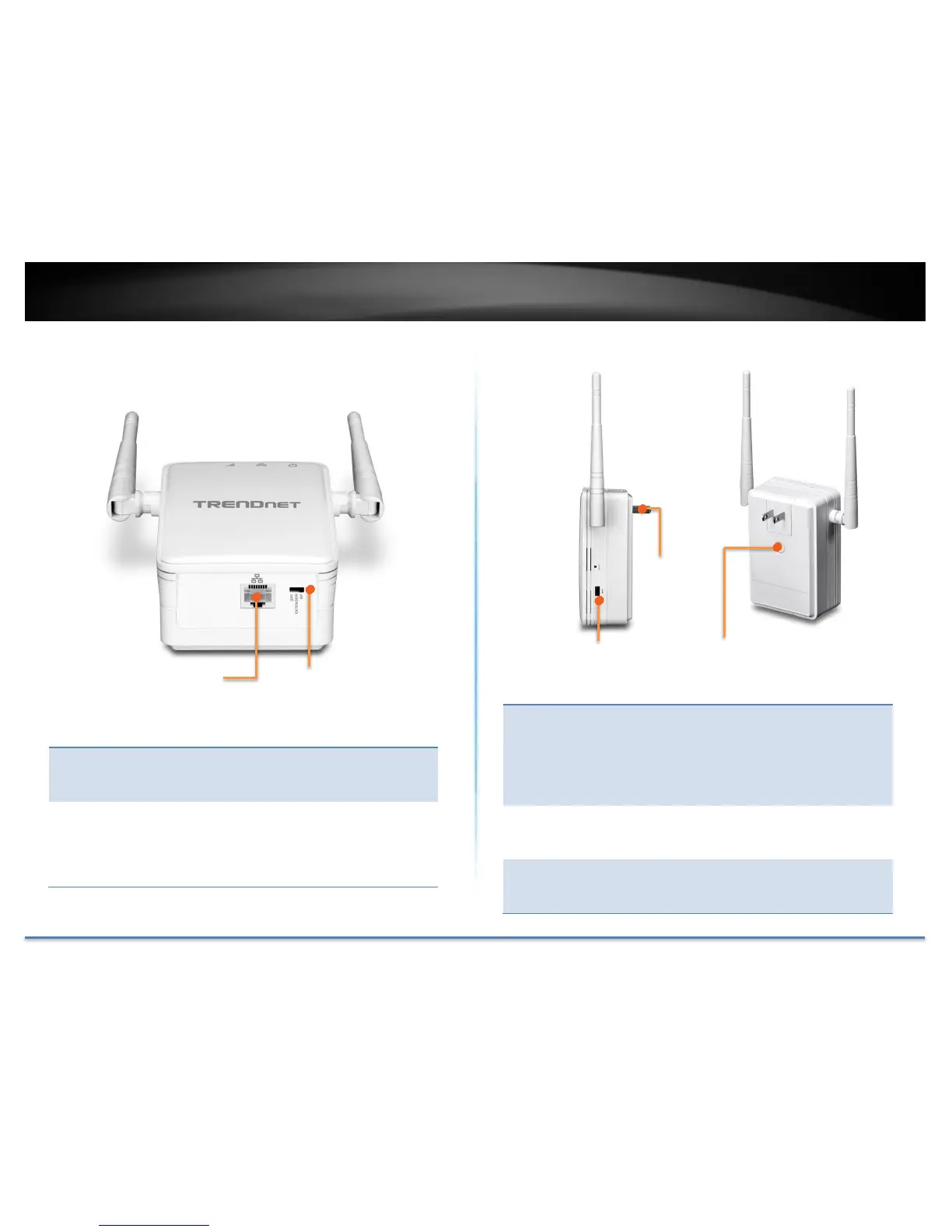

Hardware Features
Network Port
Connect a network cable (Ethernet cable) to
your network when operating in AP (Access
Point) mode.
Operation
Mode Switch
Position the Operation Mode Switch to Off to
turn off the wireless. Position the switch to
Extender to operate TEW-822DRE in Range
Extender mode. Position the switch to AP to
work in Access Point mode.
WPS
(Wi-Fi Protected
Setup)
Button + LED
Indicator
Push and release the WPS button to activate
WPS copying wireless settings from your
router (press 5 sec. in Range Extender mode)
or connect to the client (press 1 sec. in Range
Extender or AP mode). The LED indicator will
start blinking when WPS pairing is activated.
Reset Button
Resets your repeater. Push and hold this
button for 10 seconds with a pin or paper clip
to reset configuration to factory default.
Power Plug
Release Button
To exchange different style of power plug.
(This package comes with only one power
plug.)
Operating Mode
Switch
Network Port
WPS Button
+
LED Indicator
Adjustable
Antenna
Power Plug
Power Plug
Release Button
