HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
• Apply appropriate personal protective equipment (PPE) and follow safe
electrical work practices. See NFPA 70E.
• This equipment must only be installed and serviced by qualified electrical
personnel.
• Turn off all power supplying this equipment before working on or inside
equipment.
• Always use a properly rated voltage sensing device to confirm power is off.
• Replace all devices, doors and covers before turning on power to this
equipment.
• The meters must be
connected
to the sense voltage and control voltage through
a properly rated 15A breaker or voltage disconnect.
Failure to follow these instructions will result in death or serious
injury.
1. Before connecting the sense or control voltages, turn off the power to the circuit being
connected.
2. Always use a properly rated voltage sensing device to confirm power is off.
3. Connect the sense and control voltages voltage leads from the voltage disconnect/s to
the meter as described below for each service type:
4. If more than one meter is being installed, repeat this procedure for each additional meter
NOTE: The phase wiring sequence A, B, C between the Triacta GATEWAY meter and the
circuit breaker panel must match or the measurement readings will be incorrect. If the circuit
breaker panel does not designate phase A, phase B and phase C feeds, make your own
designation and use it for the rest of the installation.
The following diagrams show the required voltage connections for various different panel
voltages and sample CT connections for different single element, 2 element and 3 element
circuit configurations.

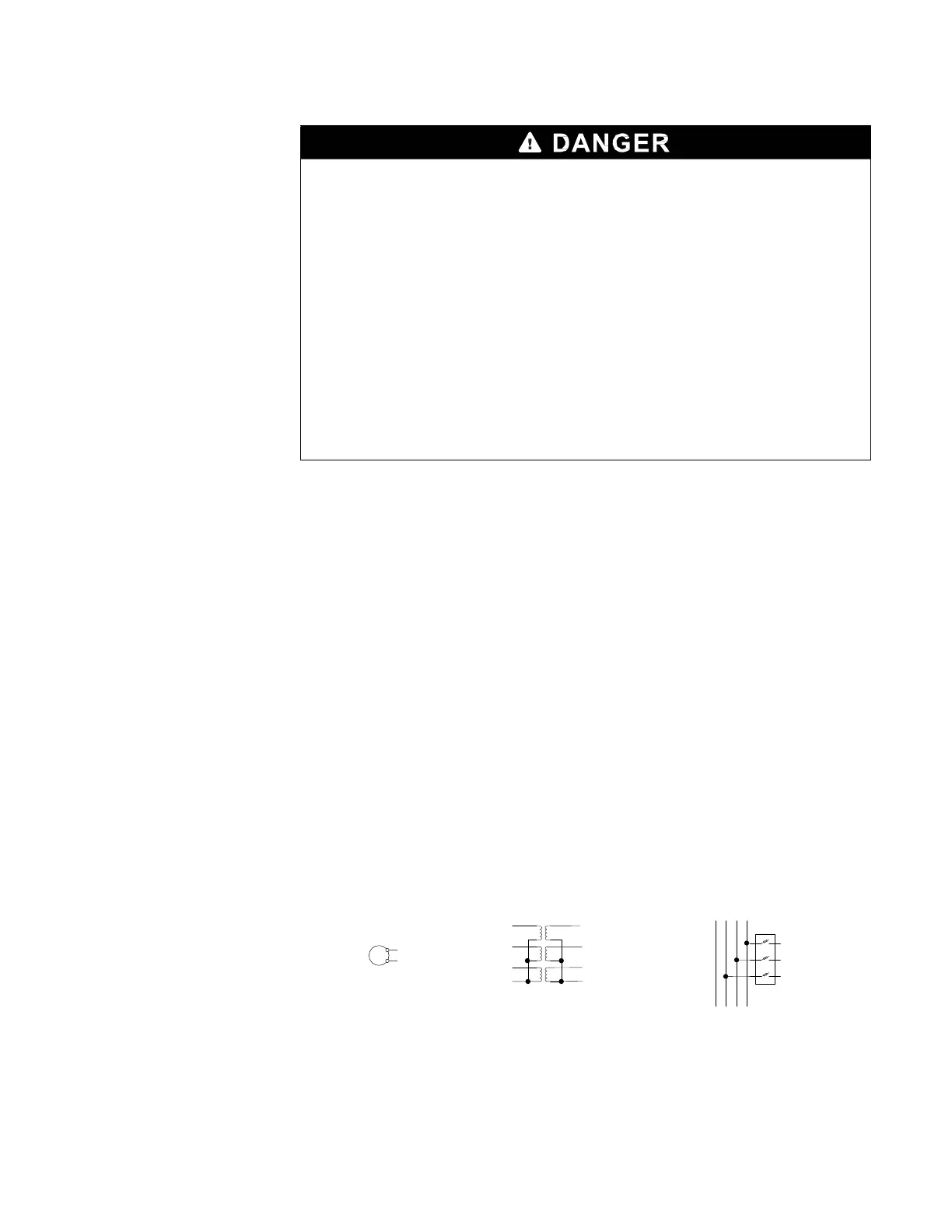

Figure 9: Drawing Symbols for Voltage Connection Diagrams
Distribution Panel with 15A
Breaker or Disconnect
To Next Page
