Triacta GATEWAY

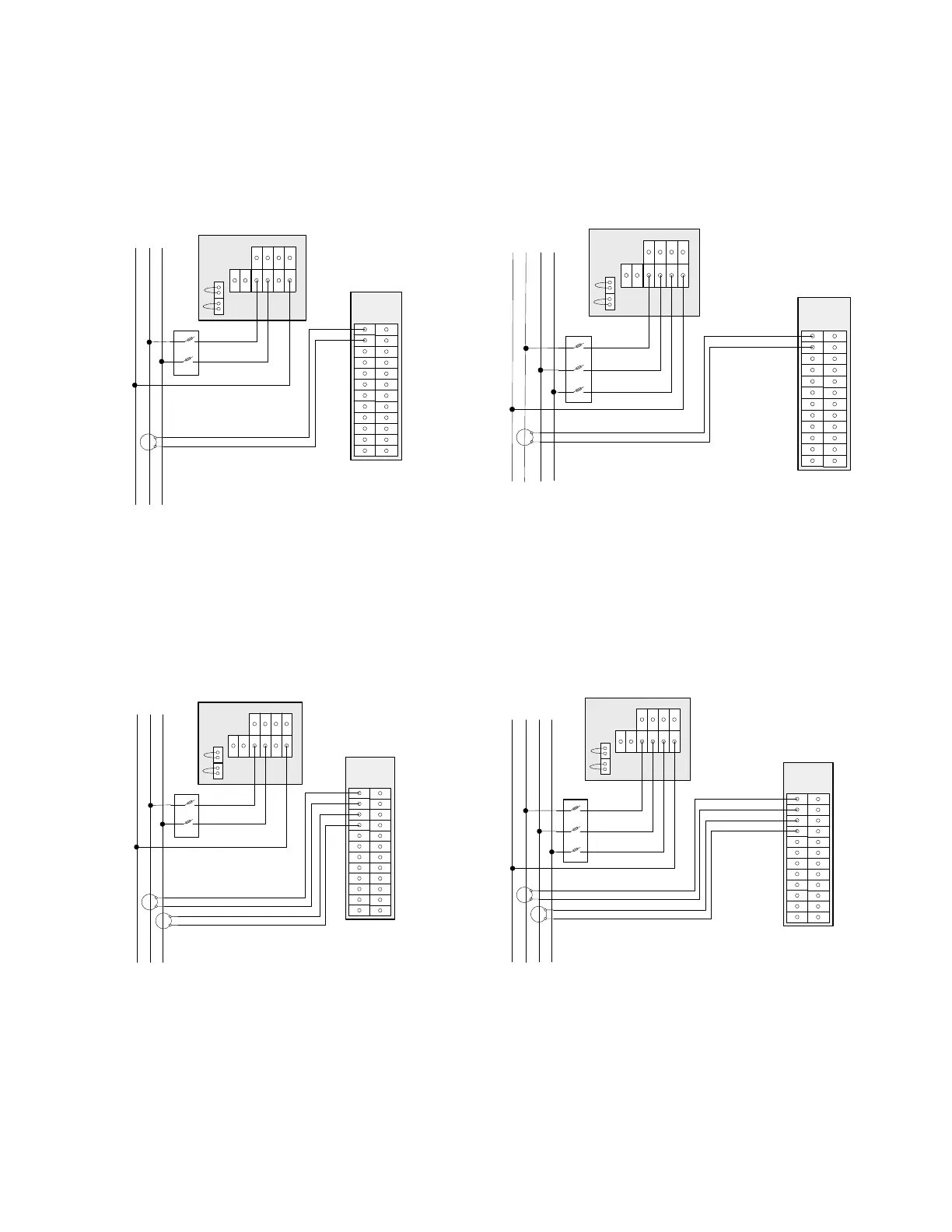

Fig 10: Single Element Meter
Single phase – 3 wire Panel
120/240V or 230/460V
Fig 12: Two Element Meter
Single phase – 3 wire Panel
120/240V or 230/460V
Fig 11: Single Element Meter
3 phase – 4 wire Panel
120/208V, 230/400V, 240/416V or 277/480V
Fig 13: Two Element Meter
3 phase – 4 wire Panel
120/208V, 230/400V, 240/416V or 277/480V
V
2
A B C N
A B C N
A N
AUX
V
1
Gateway
Voltage
Module
CT1
X1
X2
N A B
Gateway
CT Wiring
Module
V
2
A B C N
A B C N
A N
AUX
V
1
Gateway
Voltage
Module
CT1
X1
X2
N A B C
Gateway
CT Wiring
Module
V
2
A B C N
A B C N
A N
AUX
V
1
Gateway
Voltage
Module
CT1
CT2
X1
X2
X1
X2
N A B
Gateway
CT Wiring
Module
V
2
A B C N
A B C N
A N
AUX
V
1
Gateway
Voltage
Module
CT1
CT2
X1
X2
X1
X2
N A B C
Gateway
CT Wiring
Module
