5. Digital Control System
The BMS (Boiler Management System) controls all functions of the boiler and
associated hardware (i.e. circulation pump, mini hopper auger motor, exhaust fan, etc.).
The control panel display indicates the system state at which the boiler is running in real
time as well as providing the Customer with a user friendly way of adjusting temperature
and identifying clearly any issues which may occur system.

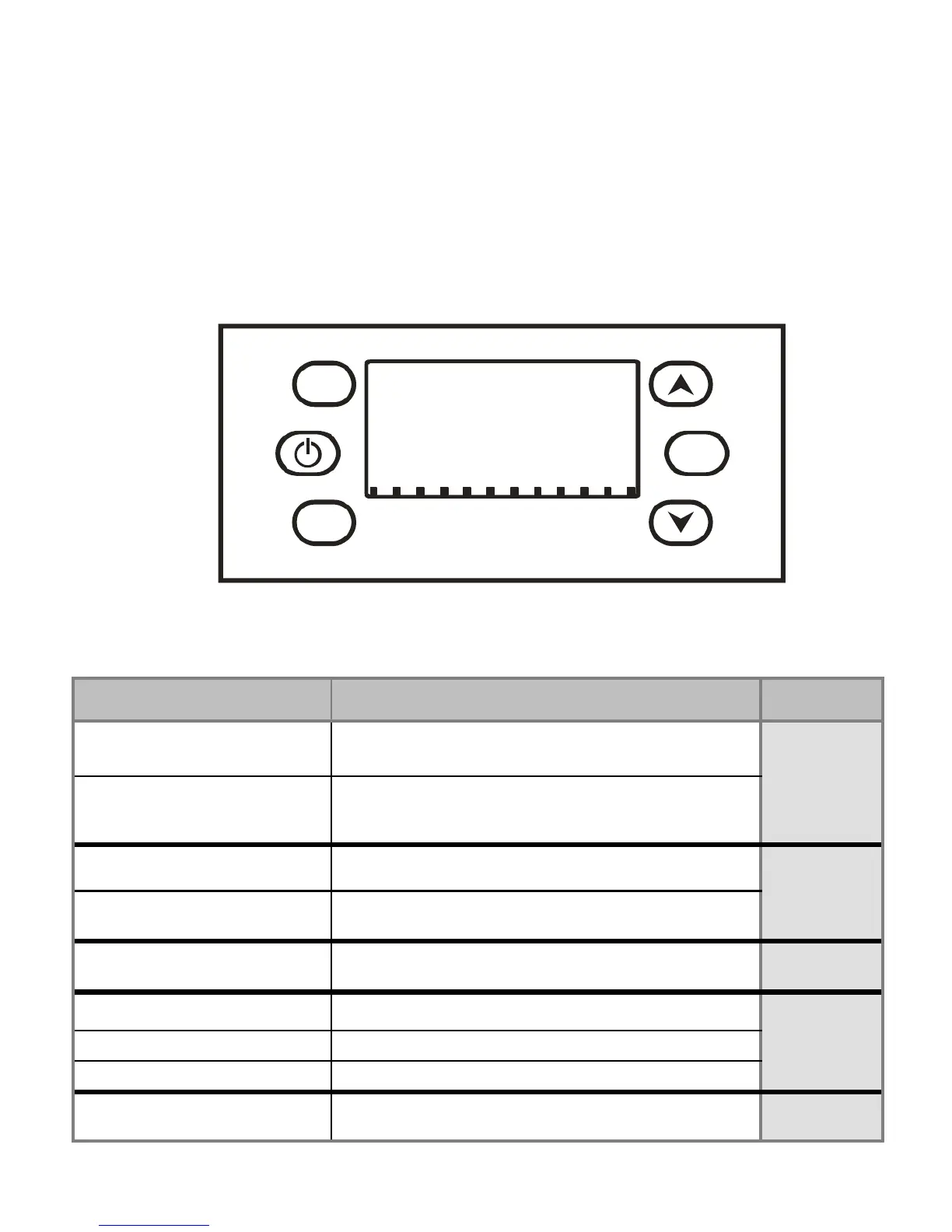

The control panel display is laid out as follows :
SET
#
ESC
P1
P2
P3
P4
P5
P6
L1 L6 L8 L9 L10 L11 L12L7L2 L3 L4 L5
FUNCTION DESCRIPTION Button
ON/OFF
Function: Ignition, Extinguishing by pushing the
button for 3 seconds until the acoustic signal.
P2
UNBLOCK
Function: unblock. When the system is in Block or
Error by pushing the button for 3 seconds until the
acoustic signal.
MODIFY VALUES INTO MENU In modify mode change menus and submenus values.
P4
P6
RUN ON MENU AND
SUBMENU
In Menu run on submenu and menu.
ESC
Function Exit managed pushing the button if in a menu
or a submenu. Out of menu “Pump Test”
P1
MENU •Function: Enter in menu or in a submenu.
P3
MODIFY •Enter in modify mode into a menu.
SET •Save data in a menu.
ENABLE CHRONO
PROGRAMMING
•In Chrono menu -> Chrono Program : enables the
selected program.
P5
