DP Switch Connections
A pressure sensor can also be used to determine the pressure
across the valve and 0 the cfm feedback signal when the
pressure falls below a preset threshold. The UVM Conguration
Tool is used to scale the pressure sensor input, enable the
pressure sensor and dene the lower pressure threshold. The
pressure sensor is wired as shown below.
- Vin

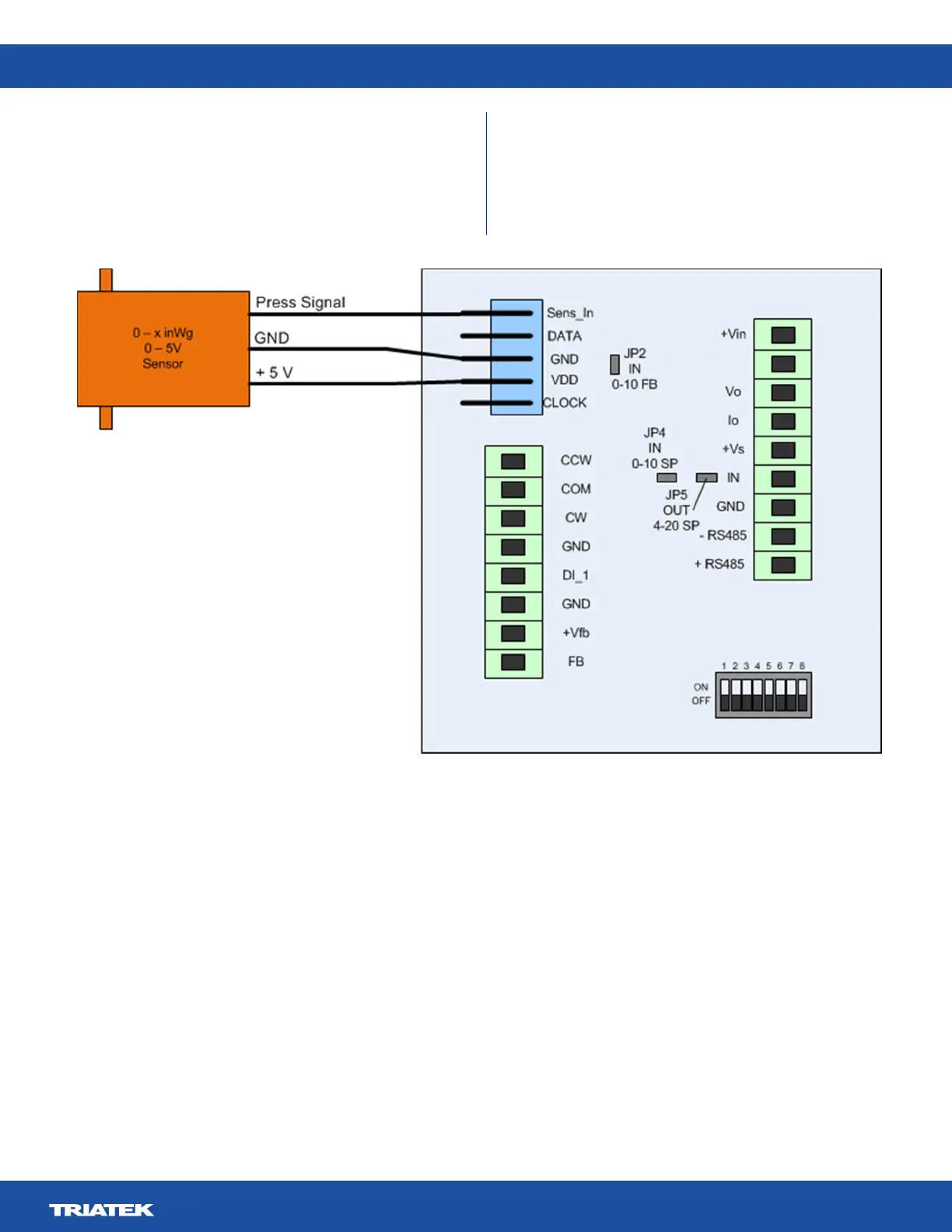

Figure 11. Pressure Sensor Wiring
