TRIMOS V600+ User Manual

TRIMOS SA Av. de Longemalle 5 CH 1020 Renens Switzerland
Tel ++ 41 21 633 01 01 Fax ++41 21 633 01 02 office@trimos.ch http://www.trimos.ch
Page 16

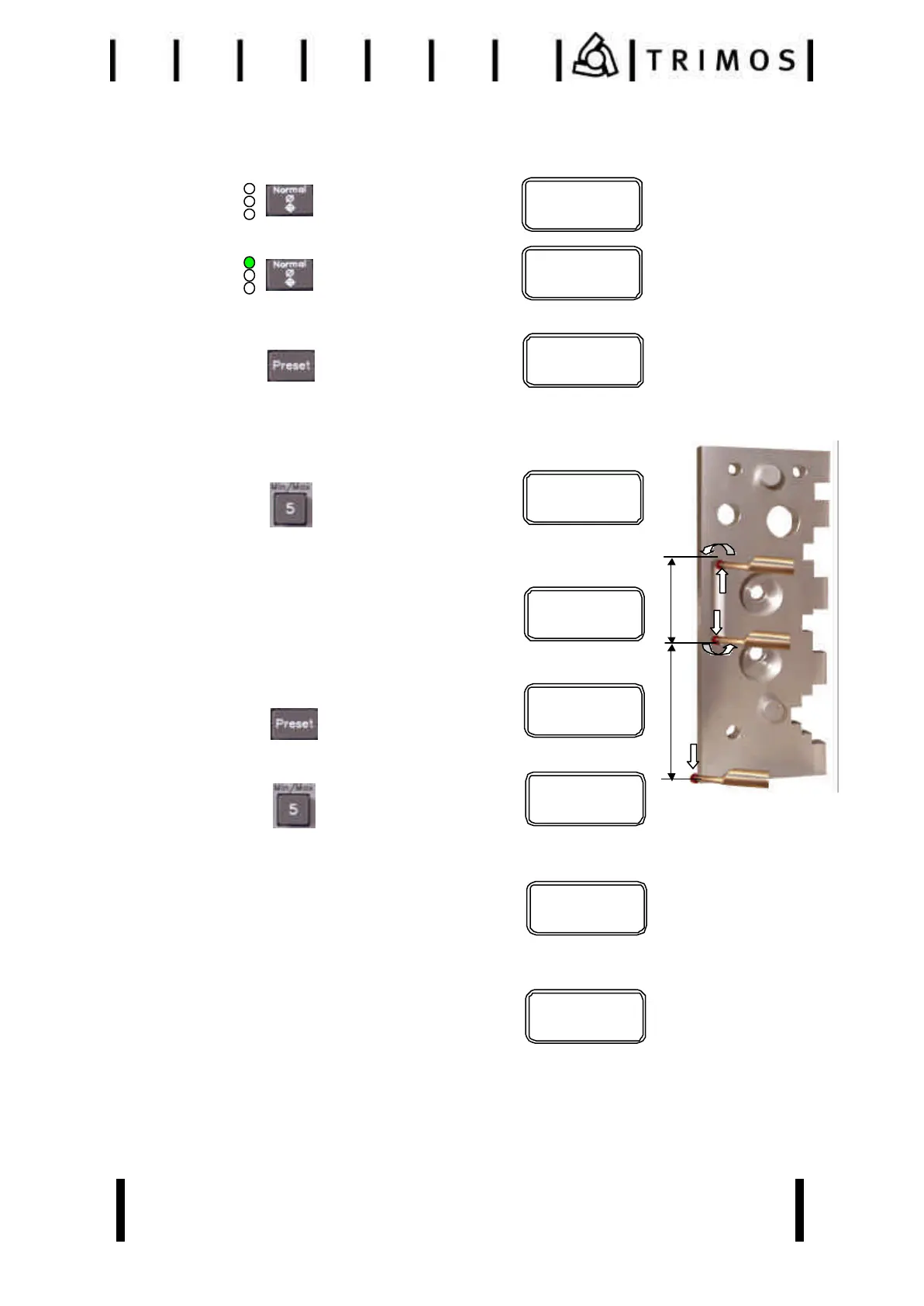

13.4 Measuring with min and max mode.
1. Normal mode, if necessary press
Key (lights OFF)
2. Touch the reference plane (P1)
(green light ON)
3. Press PRESET key quickly (>1 sec.)
to set the display at zero.
key
4. Place the probe inside the groove to be measured
and touch a point (P2) which is well away from the
reversal point.
5. Press MIN/MAX key to MIN
6. Move the part or the instrument sideways to the
probe. The reversal point is memorized.
The first value is displayed.
7. Press PRESET key to set the reversal point at zero.
key
8. Press MIN/MAX key to MAX
9. Place the probe inside the groove to be measured
and touch a point (P3) which is well away from the
reversal point.
10. Move the part or the instrument sideways to the probe.
The reversal point is memorized.
The second value is displayed.
0.000
MM
24.456
M
M
0.000
MM
125.231
MM
MIN
124.043
MM
MIN
0.000
MM
MIN
0.320
MM
MAX
76.686
MM
MAX
76.993
MM
MAX
124.043
76.993
P1
P2
P3
