15. Printer
Introduction
The thermal printer V-30 is compact and light weight, equiped with an RS232C serial
interface via a 9 –way D-type connector (female).
It is powered from internal Ni-Cd batteries.
Material required :
Printer with AC adaptor (V30/…), Bracket (V32), connecting cable (V-31),
paper rolls (V-30.7).
Assembling printer on V300,V600,V1000.

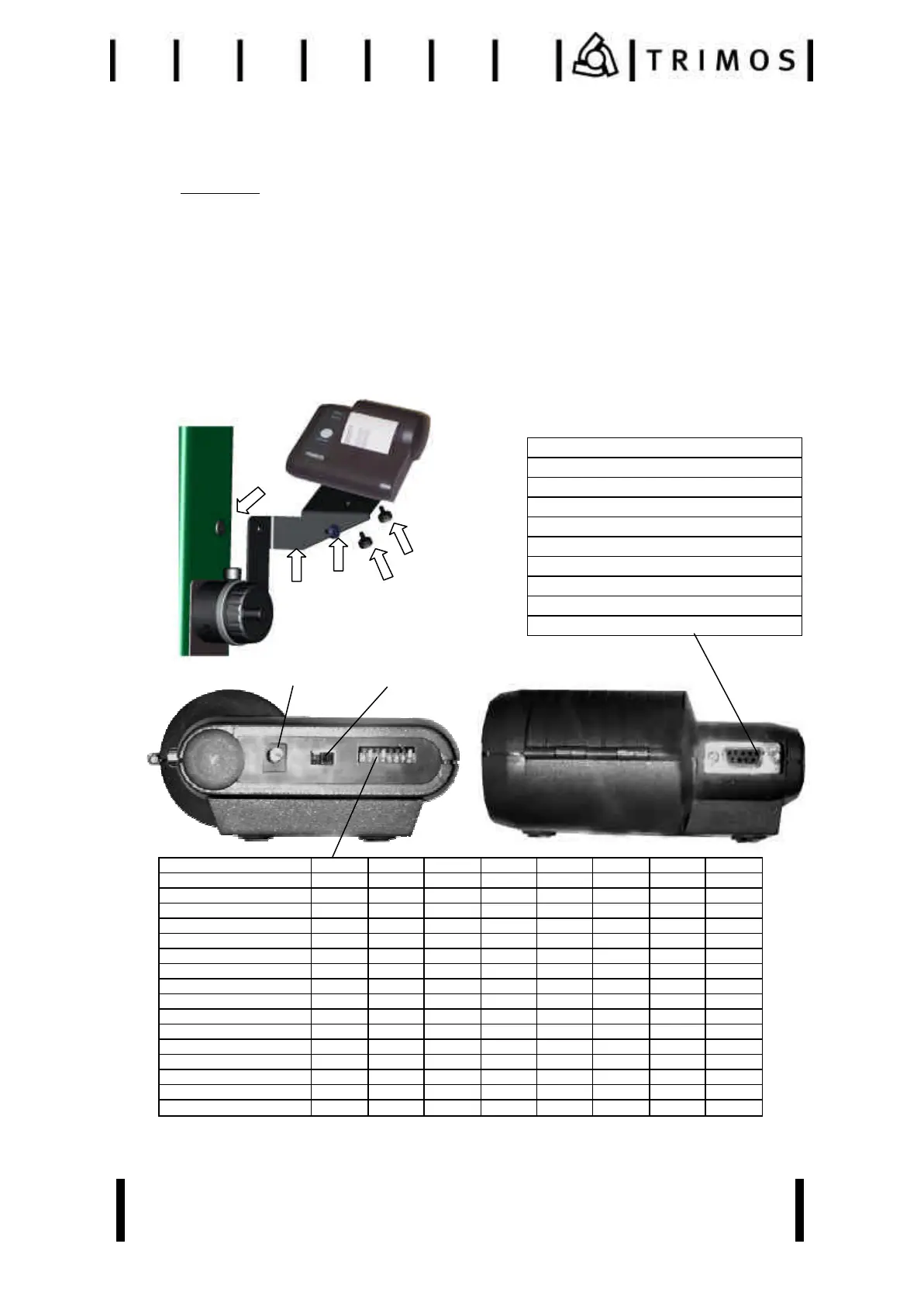

1. Lock the bracket (B) with the screw (C) into the thread (A),
Fixe the printer by two screws (D), connect the RS232 cable (V-31),
Switch ON the printer by the button. (E).
9-way D-type socket(female)
1. No connection
2.TXD (Transmit data to host)
3.RXD (Received data from host)
4. No connection
5. GND (Signal ground)
6. No connection
7. No connection
8. CTS (Clear to send)
9. No connection
Designation SW-1 SW-2 SW-3 SW-4 SW-5 SW-6 SW-7 SW-8
24 characters per line ON
48 characters per line OFF
Software hanshake ON
Hardware hanshake OFF
7 Data bits, Even parity ON
8 Data bits, No parity OFF
1200 Baud ON
4800 Baud OFF
Normal height ON
Double height OFF
Normal width ON
Double width OFF
Normal/Dual ply ON
Labels OFF
Auto wake up disabled ON
Auto wake up enabled OFF
A
B
C
D
AC adaptor socket
E
