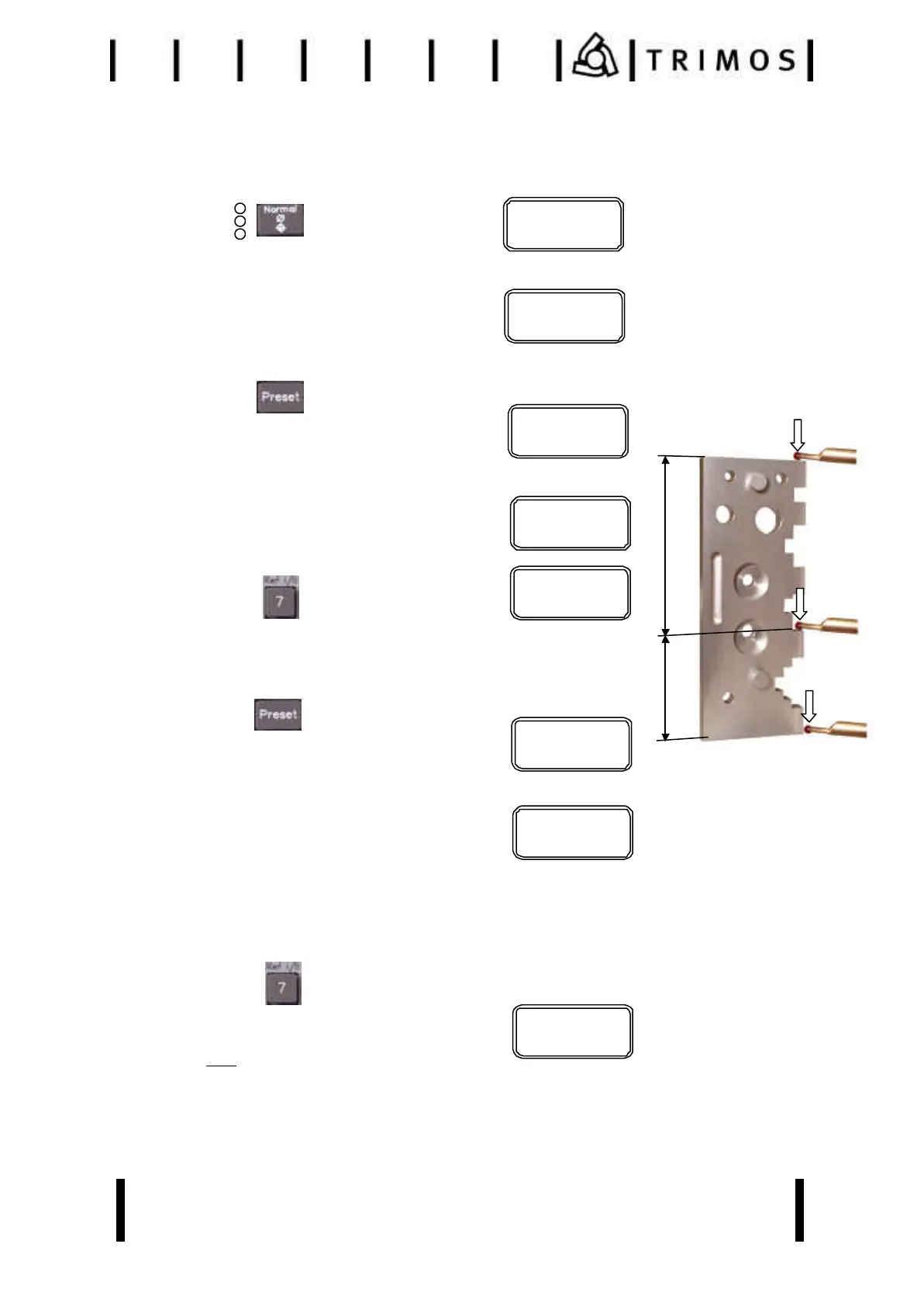

13.7 Measuring with two references
1. Normal mode, if necessary press
Key (lights OFF)
2. Touch the reference plane (P1(REF I))
3. Press the PRESET key
To set the REF I to zero.
4. Touch the reference plane (P2(REF II))
5. Press
Key to activate the REF II
6. Press the PRESET key
To set the REF II to zero
7. Touch surface (P3)
The display show the measurement
from REF II
8. Press
key to change from REF II to REF I
The display show the measured
value from REF I.
Note :
In REF I the display show the measured value only.
In REF II the display show the measured value and REF II.
0.000
MM
-12.456
MM
0.000
MM
299.985
MM
130.098
MM
REFII
0.000
MM
REFII
-184.912
MM
REFII
115.073
MM
115.073
-184.912
REF II
REF I
P1
P2
P3
