T100e thermostatic care & care plus
21

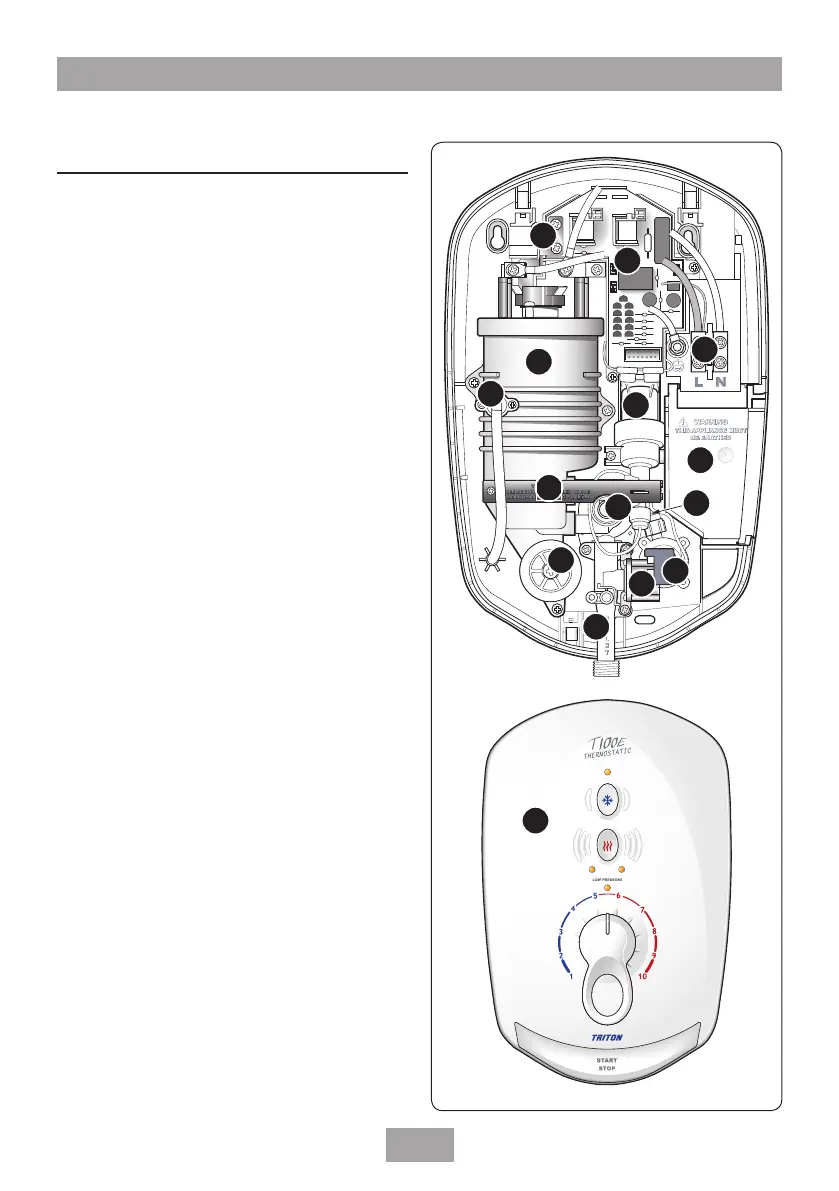

Spare parts
T00339
L
L
N
N
1
2
3
4
5
7
9
6
12
13
14
11
8
10
1. Printed circuit board 7073034
2. Copper bus bar 7023005
3. Terminal block & wires S07710901
Terminal block 22011410
4. Heater can assembly 8.5kW
c/w restrictor & TCO 83307080
– Restrictor 8.5kW 22010400
5. Solenoid valve assembly
and ‘O’ ring
83307110
6. Pressure Relief Device 82800450
7. Trimplate 7053172
8. Can brace 7053008
9. Thermostatic valve
and ‘O’ rings (4) 83307130
10. Connecting tube 22010260
11. Scale trap cover
c/w ‘O’ rings and screw 83307140
12. Outlet pipe assembly
Care 7053196
Care Plus S07711000
13. Pressure switch microswitch
& wires P07710904
14. Pressure switch
and ‘O’ ring 83307120
15. Complete cover assembly
Care S07730600
Care Plus S07730601
– Wire set
2 x earth & 1 x solenoid
wires 83307150
– Power PCB carrier 7052991
– Rubber microswitch cover 7063046
– Inlet filter 7053009
Ref. Description
Part No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
