Triumph Sprint ST - Headlight Adjustment; Main Beam Horizontal Adjustment; Main Beam Vertical Adjustment

110
Maintenance and Adjustment
Headlight Adjustment
Each headlight can be adjusted by means of
vertical and horizontal adjustment screws
located on the top and rear of each headlight.

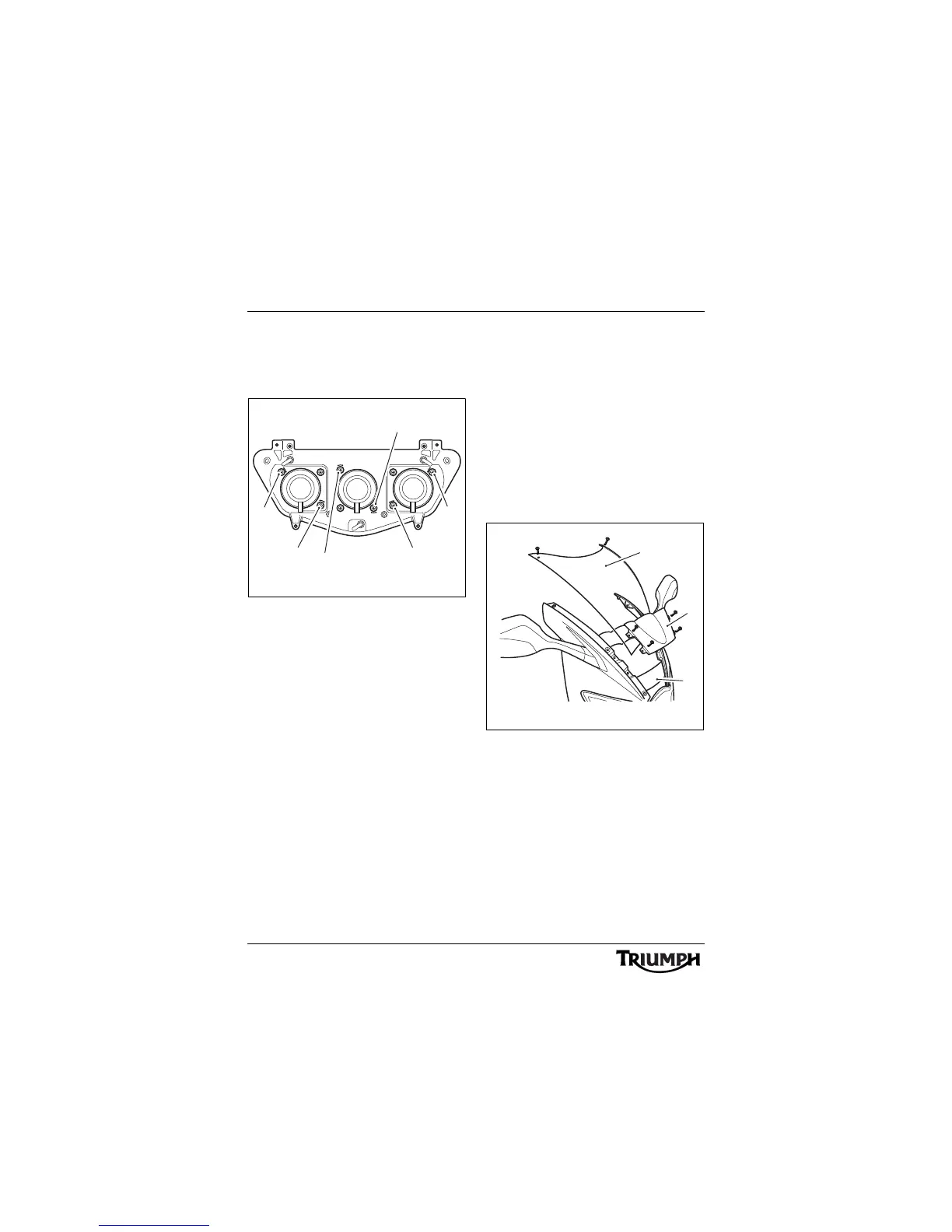

1. Horizontal adjustment screw
(LH dipped headlight)
2. Vertical adjustment screw (LH dipped
headlight)
3. Horizontal adjustment screw (main
beam)
4. Vertical adjustment screw (main
beam)
5. Vertical adjustment screw (RH dipped
headlight)
6. Horizontal adjustment screw (RH
dipped headlight)
Note:
• The illustration shows a view of
the rear of the lighting assembly.
• When turning the adjustment
screws, clockwise and
counter-clockwise directions are as
viewed from the rear of the
lighting assembly.
Main Beam Horizontal Adjustment
The main beam horizontal adjustment screw
is accessible without removing any panels. It
can be reached from below the lights.
Switch the main beam on.
Turn the adjustment screw clockwise to move
the beam to the left or counter-clockwise to
move the beam to the right.
Switch the headlights off when the beam
setting is satisfactory.
Main Beam Vertical Adjustment
1. Windshield
2. Cover panel
3. Adjustment screw access
Remove the screws securing the windshield
to the cockpit. Slide the windshield upwards
and to the rear to remove it.
Remove the screws securing the cover panel
and remove the panel.
The adjustment screw is now accessible.
Switch the main beam on.
U
U
U
L
L
R
R
D
D
D
L
R
ccoy
1
2
3
4
5
6
ccpj
1
3
2
