112
Maintenance and Adjustment
Re-install the cover and filler panels.

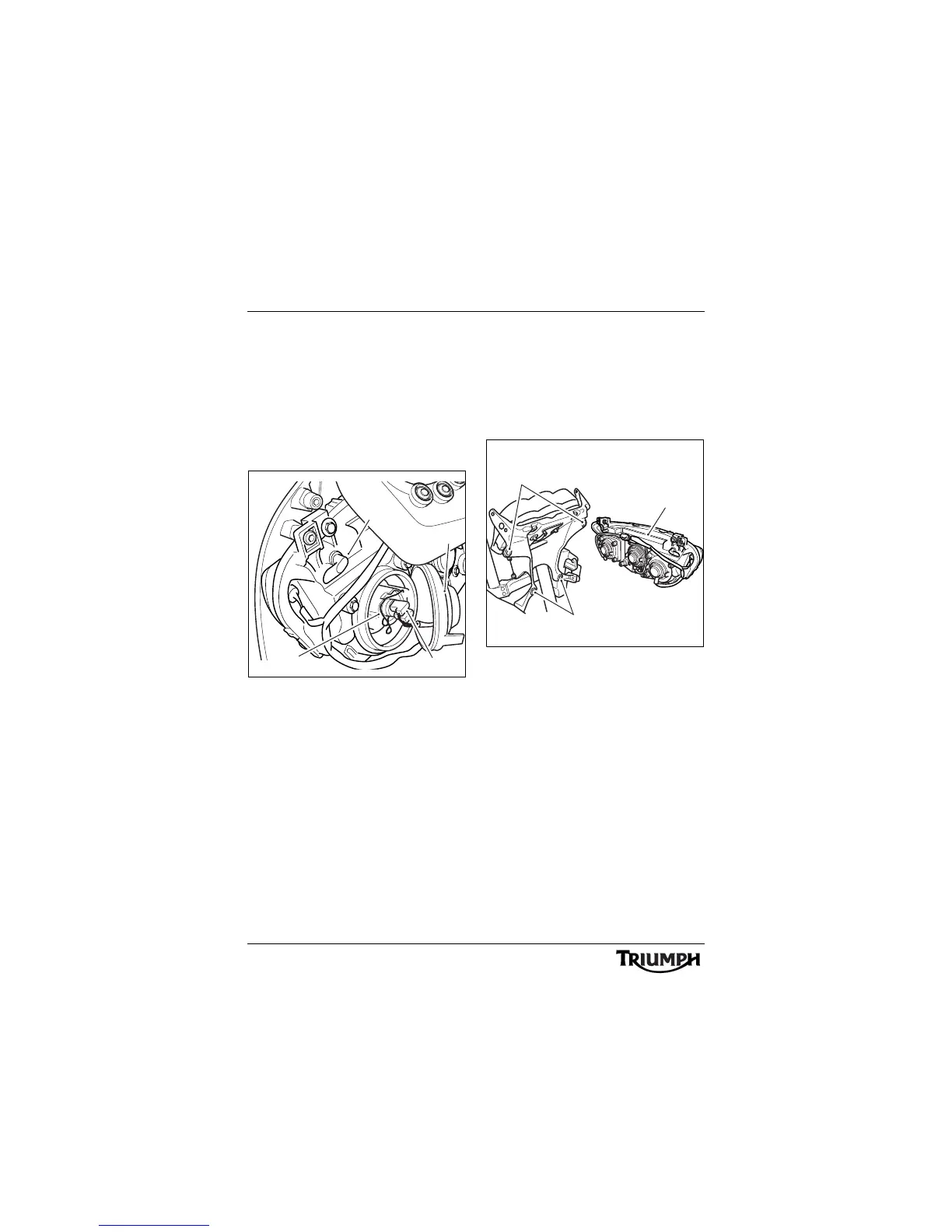

Dipped Headlight Bulb
Replacement
It is not necessary to remove the dipped
headlight when bulb replacement becomes
necessary. The left and right filler panels,
coolant expansion tank and stowage/fuse
box cover panels do have to be removed.
1. Headlight
2. Rubber cover
3. Multi-pin electrical connection
4. Bulb retainer
To replace a dipped headlight bulb:
Remove the seat.
Disconnect the battery, negative (black) lead
first.
Remove the relevant filler and cover panels.
Remove the rubber cover and disconnect the
multi-pin electrical connector from the bulb
to be replaced.
Detach the wire bulb retainer from the clip. It
is not necessary to undo the screw.
Remove the bulb from the headlight unit.
Installation is the reverse of the removal
procedure.
Main Beam Bulb Replacement
It is necessary to remove the cockpit and the
complete headlight unit when bulb
replacement becomes necessary.
1. Headlight unit
2. Side fastener
3. Center fastener
To replace a main beam bulb:
Remove the seat.
Disconnect the battery, negative (black) lead
first.
Remove the cockpit.
Unscrew the nuts securing the headlight unit
to the support bracket and release the unit.
Remove the rubber cover and disconnect the
multi-pin electrical connector from the bulb
to be replaced.
Detach the wire bulb retainer from the clip. It
is not necessary to undo the screw.
Remove the bulb from the headlight unit.
cgdv
2
1
4
3
ccpn
1
2
3
